SWAN HK Series Three-in-one Touch Screen Power Amplifier
$ -
Postage : $0.00
Pro Audio Professional amplifier Integrated amplifier
Stock: 0
Product Introduction
HK series all-in-one touch screen power amplifier adopts 32-bit high-performance DSP and AD/DA, 24-bit/48K sampling pure digital professional all-in-one effect amplifier power amplifier, suitable for professional occasions and home places: TV ARC function return, first-line Directly connected to TV, at home karaoke, music 3-segment high, middle and low frequency EQ is convenient for home users to choose and adjust the music effect; stereo analog music input, 7-segment parametric equalization, high-pass filter and low-pass filter, input pre-gain, suitable for professional Users can debug according to the place of use.
Product Function
1. 2 sets of microphone input, microphone high-pass filter and low-pass filter, with dual microphone input, MIC A and MIC B, dual independent 10-band parametric equalization.
2. Stereo analog music input, 7-band parametric EQ, high pass filter and low pass filter.
3. Analog audio input, optical audio input, Bluetooth, U disk, HDMI audio input, HDMI TV return, a variety of input options.
4. 6 independent channel outputs, each channel can be independently mixed, high and low frequency divider, main output and surround 7-band parametric equalization, center 7-band and subwoofer 5-band parametric equalization, delay, pressure limiter, Polarity change, volume adjustment, mute.
5. Password management, password lock screen function.
6. Has 12 groups of user parameter storage and recall.

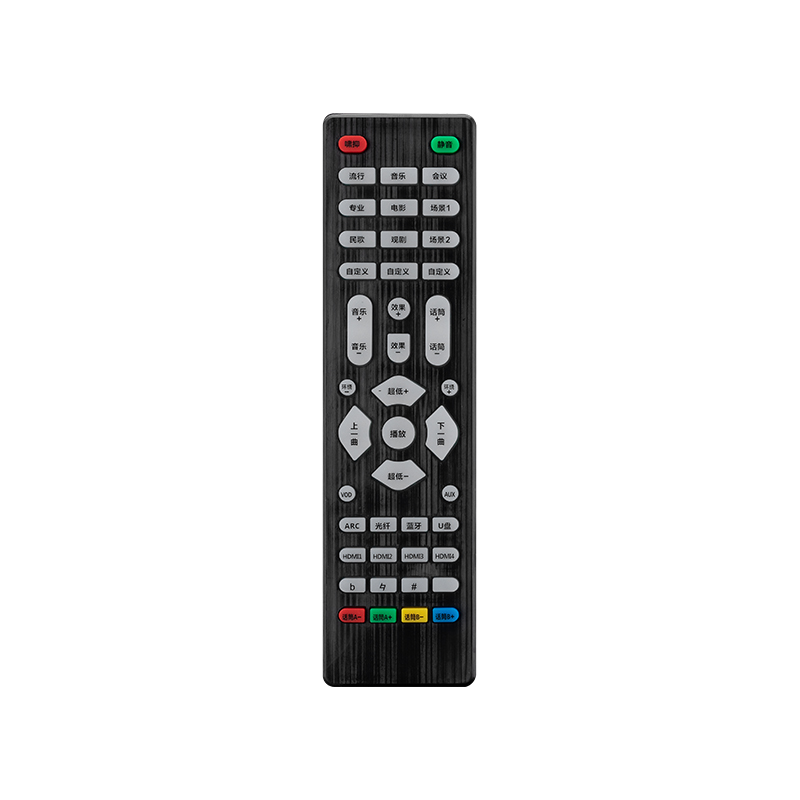

7. Wireless infrared remote control and Bluetooth function.
8. Drive-free USB interface, real-time control of all parameters through PC software.
9. Mobile APP control.

(Scan the QR code to download the mobile APP)

Method 2: Click the text link below, unzip and download the mobile APP

HK series MobileAPP

Item Parameters
HK800 HK1200
Rated power 400Wx2 8Ω 600Wx2 8Ω
Sensitivity 300mv
Frequency response 士1.5dB (20-20KHz)
SNR >98dB
Distortion <0.05%
Dynamic range ADC 105dB,DAC 103dB
Noise <-85dBu <-90dBu
Input connector 2-way wired microphone, divided into A/B group: Lotus (VOD/Aux), Optical (Optical)
Coaxial, HDMI, USB
Output connector 6 lotus 5.1 channel outputs, 1 set of binding post output and a set of speaker rotary SPK-ON output
Wireless microphone distanc >30m
BTdistance >10m
Remote control distance >8m
Filter 7 types 12/18/24dB high and low pass
7 types of output 12/18/24dB high and low pass
Limiter MIC adjustable parameter limiter MUSIC adjustable parameter limiter
Output adjustable parameter limiter
Howling suppression function Software built-in howling suppression, 4 levels
HDMI 4 in 1 out, version 2.0

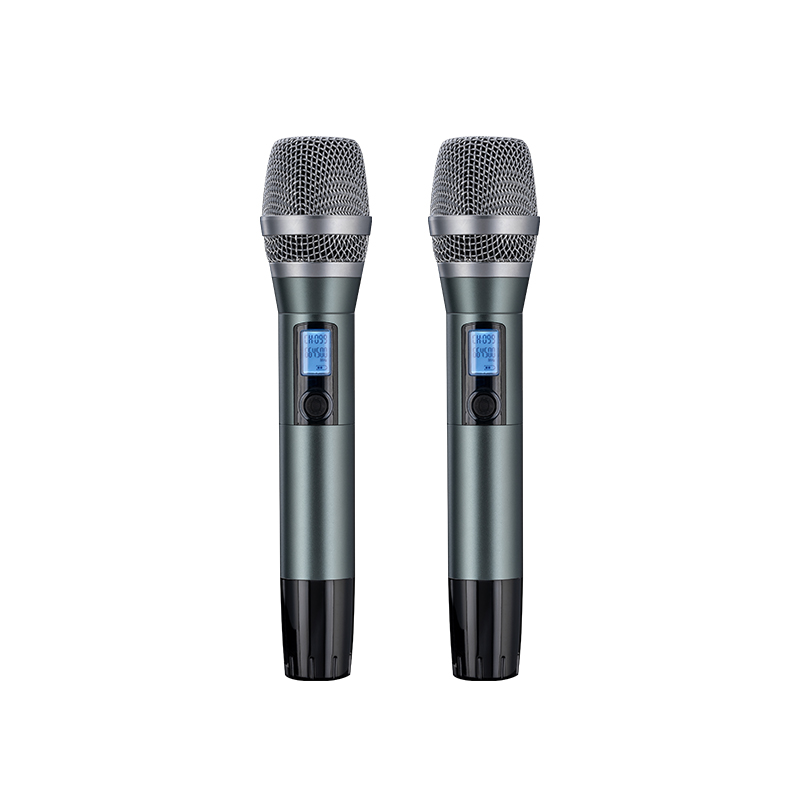

Built-in wireless microphone frequency response 22-200000Hz,+/-3dB
Built-in wireless microphone distortion 0.03%
Built-in wireless microphone frequency range 650-680.1Mhz(470-960 can be customized)
Built-in wireless microphone receiving sensitivity <-94 dBM
Built-in wireless microphone handheld voltage 3V.(two AA batteries)
Power Requirements and Consumption 220VAC+/-10%、
Rated power consumption 520W
Rated power consumption 800W
Weight(±10%) N.W.(520w) 13kg N.W.(800w) 14kg
G.W. (520W) 17kg G.W.(800w) 19kg
Size L429×D386×H102 mm
No relative downloads now.
