Product Description

WR series is a new waterproof shower array external crossover speaker system introduced by HiVi hivi Company. It is designed according to IPX6 international waterproof grade standard, and can meet professional sound reinforcement requirements in unexpected rainy weather and various harsh environments with high water density. WR series corrects the wave front to make it close to the plane wave transmission, thus solving the problem of long-distance transmission. Through the special hanging system, many speakers can be quickly connected to form a good vertical coverage line sound source, which has good directivity, high continuous sound pressure level, large dynamic and good transient. With its WR ultra-low frequency speakers, the ideal external frequency division combination configuration can achieve good sound reinforcement effect. This system is especially suitable for all kinds of indoor and outdoor gymnasiums, great halls, auditoriums, theatres, performance halls, multi-functional conference rooms and other sound reinforcement requirements; It is equipped with special hangers, bolts, all kinds of connectors and automatic positioning devices of the patented sound reinforcement pointing area.

Parameters

Model

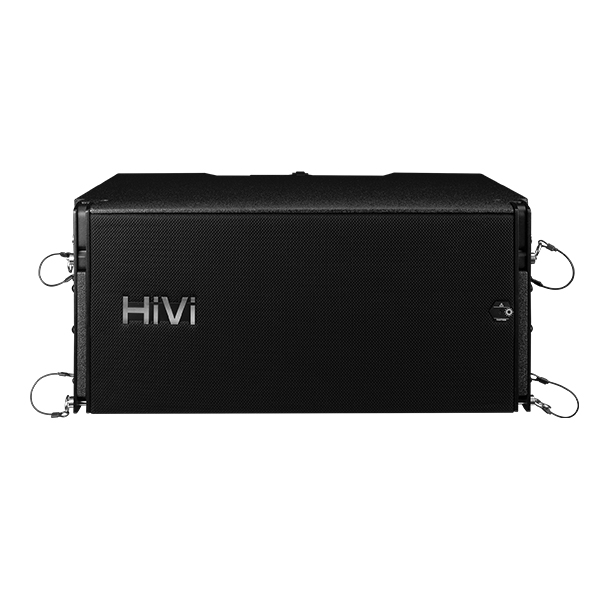

WRL2

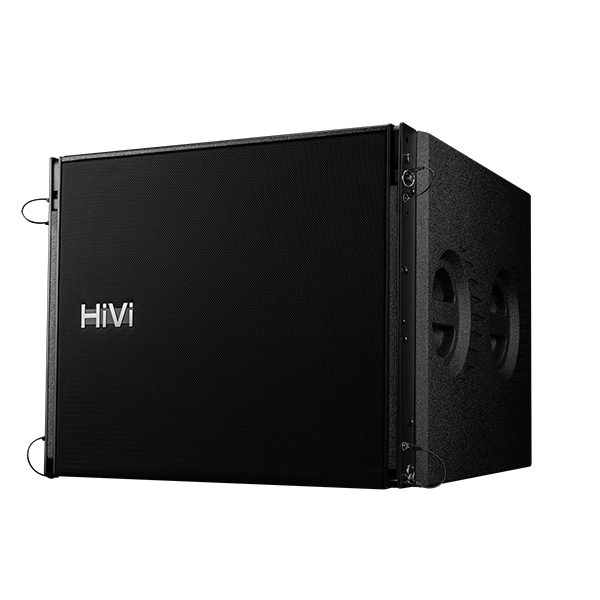

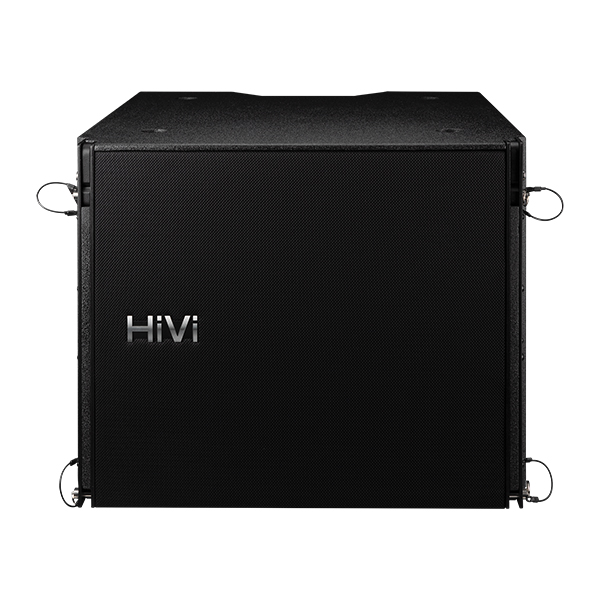

WRL2S

Tyoe

External 2-way system

Subwoofer

Frequency range

LF：60Hz-3KHz

HF：1KHz-22KHz

30Hz-250Hz

Rated power

LF：350W

HF：150W

800W

Sensitivity

LF：100dB

HF：112dB

100dB

Max SPL(peak)

LF：132dB

HF：140dB

137dB

Rated impedance

LF：16Ω

HF：16Ω

8Ω

Driver configuration

LF：1*10”(65mm voice coil)Neodymium magnetism

HF :1*2.6”(65mm voice coil)Neodymium magnetism

1*18”(100mm voice coil)Neodymium magnetism

Input connection

LF（3+，4-）

HF（5+，6-）

（1+，2-）

Directive

Laser pointing input 1+, 2- (optional)

Hanging system

Special array hanging system

Coverage angle（H×V）

90°×10°

Front protection

Black hardened steel mesh (waterproof mesh)

Cabinet

Birch plywood

Finished

Environment-friendly black polyurea waterproof paint

Depth

Hanging and stacking

Size（mm）（W×H×D）

660×303×470

666×555×730

N.W.(±10%)

27.5KG

62KG

Size and structure


Instructions for laser pointing and positioning in sound reinforcement area
1. First, make sure that the power amplifier is properly connected to the port of the 8-core waterproof speaker base (1+, 2-). When a low-voltage 15KHz sine wave signal is input, a slight high-frequency sound of the woofer will be heard. Then, continue to slowly increase the input signal voltage until the laser light outlet on the front of the speaker emits a stable beam, and the projection position of the beam is the sound reinforcement pointing area of the speaker. Note: When using this function, please mute the port of (5+, 6-) to prevent the horn from burning out. 2. Schematic diagram of laser beam positioning, as shown in the figure. Note: This pointing system is optional. Please make sure the speaker has this function before using it.
