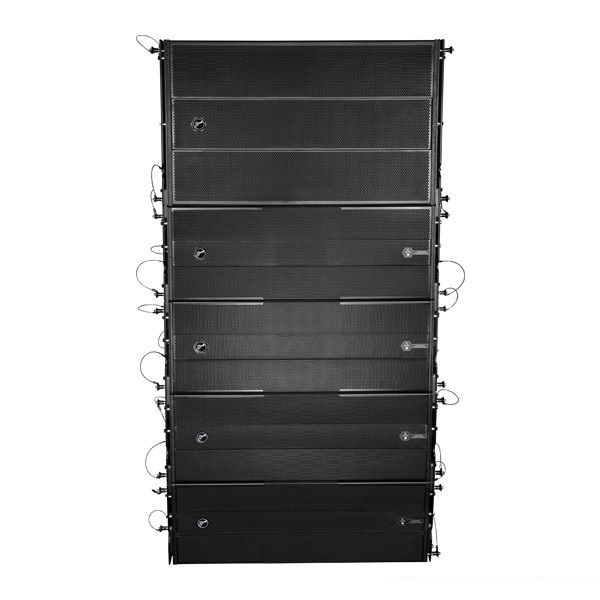

Swan LR2120+LR2120S Line array speaker
$ -
Postage : $0.00
Model
Pro Audio Line array LR series Line array speaker
Stock: 0

Product description LR series is a brand-new line array speaker system launched by HiVi hivi brand to solve the sound pressure level attenuation caused by long-distance sound transmission. LR series corrects the wave front to make it close to the plane wave transmission, thus solving the problem of long-distance transmission. Through a special hanging system, many speakers can be connected beneficially, forming a powerful linear sound source, with high continuous sound pressure level, large dynamic and good transient state. With its ultra-low frequency speakers, it can exert its unique effects perfectly in an ideal combination configuration. This system is especially suitable for various gymnasiums, halls, auditoriums, theatres, performance halls, multi-functional meeting rooms and other sound reinforcement requirements. It is equipped with special hangers, bolts, all kinds of connectors and automatic positioning devices in the sound reinforcement pointing area, etc., which makes the system combination and hoisting easy to use.


LR2120 Parameters

Configuration: Double 12-inch line array full-frequency speakers (equipped with laser pointing and positioning function).

Product Combination

Woofer:

2 "Neodymium magnetic bass (75MM voice coil), 8P input socket 1+/1-

Mid-range:

12 "Neodymium magnetic midrange (75MM voice coil), 8P input socket 2+/2-

Tweeter:

2*3 "Neodymium magnetic treble (75MM voice coil), 8P input socket 3+/3-

Cabinet material:

Birch plywood

Finish:

Environment-friendly wear-resistant black spot paint

Front protection:

Black sprayed hardened steel mesh

Hanging system:

Special array hanging system

Directive system:

Patented laser pointing and positioning system

Performance index

Nominal impedance:

Woofer 16Ω

Mid-range 16Ω

Tweeter 32Ω

Rated power:

Woofer 350W

Mid-range 350W

Tweeter 300w

Sensitivity:

Woofer 100dB

Mid-range 100dB

Tweeter 115dB

Max SPL:

Woofer 131dB

Mid-range 131dB

Tweeter 146dB

Frequency response:

Woofer 50HZ-3KHZ

Mid-range 50HZ-3KHZ

Tweeter 800HZ-20KHz

Expansion angle:

H:100°*V:7°(adjustable)

Hoisting angle:

0-7°(adjustable)

Speaker size:1030W*374H*565D(MM)

Speaker N.W.:59KG

LR2120S Parameters

System configuration: line array subwoofer

Product combination

Woofer:

2*18 "ferromagnetic bass (100MM voice coil), 4P input socket 1+/1-

Cabinet material:

Birch plywood

Finish:

Environment-friendly wear-resistant black spot paint

Front protection:

Black sprayed hardened steel mesh

Hoisting angle:

Special array hanging system

Performance index

Nominal impedance:

Rated power:

1200w

Sensitivity:

101dB

Max SPL:

138dB

Frequency response:

30HZ-150HZ

Expansion angle:

Full directive

Hoisting angle:

+3.5/-3.5°

Speaker size :1030W*630H*800D(MM)

Speaker N.W.:119KG

Instructions for laser pointing and positioning in sound reinforcement area


1. First, make sure that the power amplifier is properly connected to the (2+, 2-) laser port of the 8P speaker base at the back of the speaker. When you input a sine wave signal of 15KHz, you will hear a slight high-frequency sound from the speaker. Then, continue to slowly increase the input signal until the laser light outlet on the front of the speaker emits a stable beam, and the projection position of the beam is the sound reinforcement pointing area of the speaker. Warm Tip: When using this function, please mute the ports of (1+, 1-), (3+, 3-) to prevent the horn from burning out. 2. Schematic diagram of laser beam positioning:
