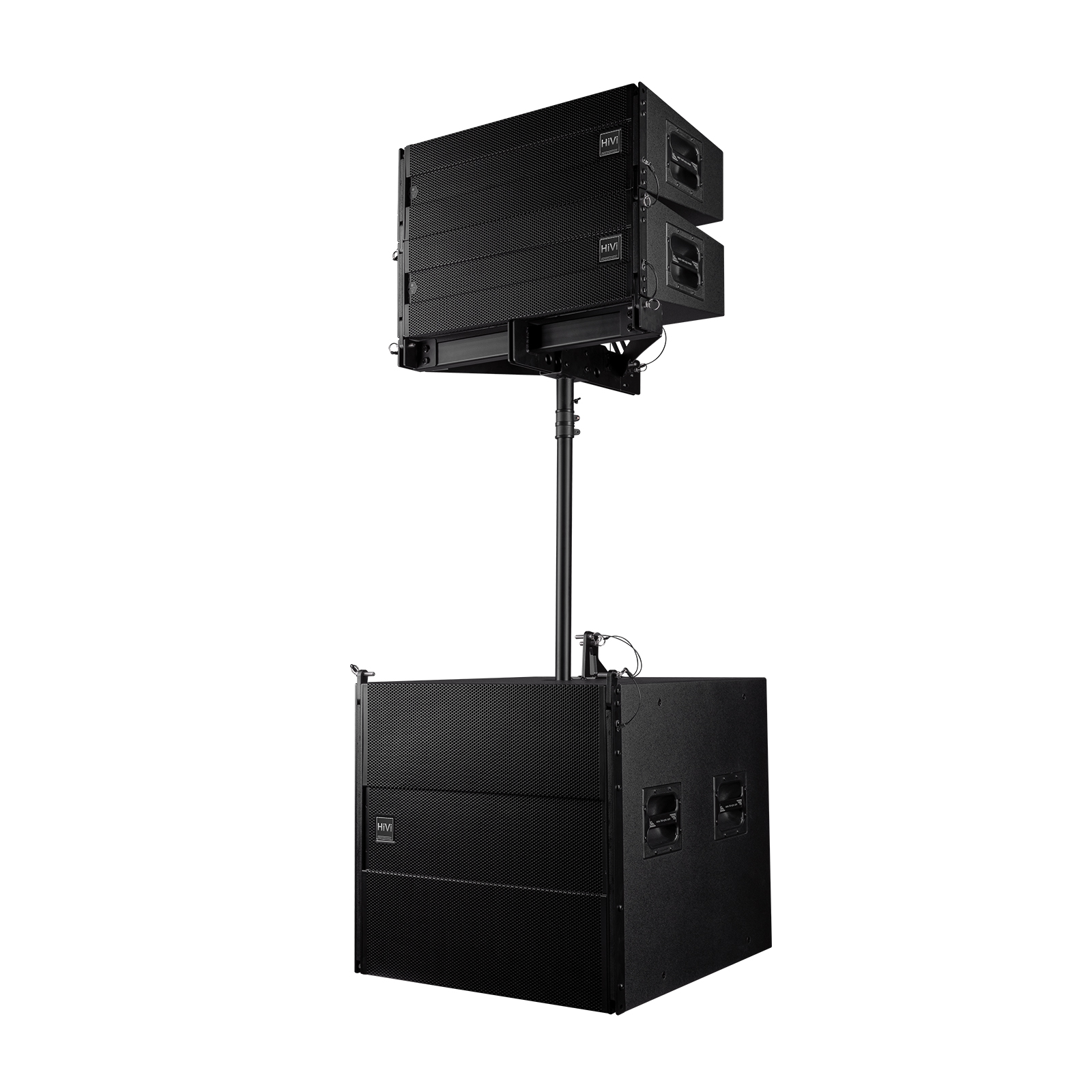

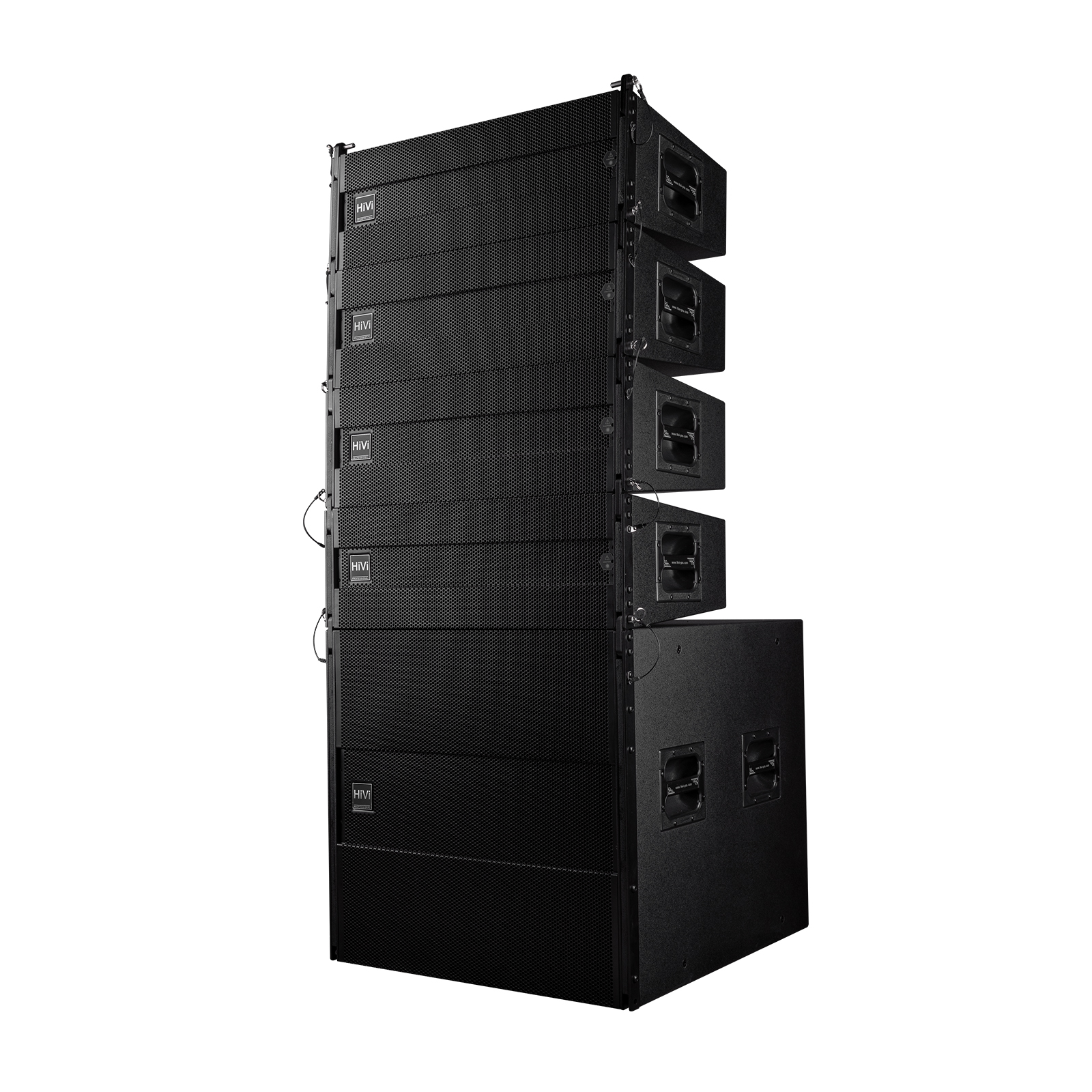

Swan Laser2+Laser2S Line array speakers
$ -
Postage : $0.00
Model
Pro Audio Line array LR series Line array speaker
Stock: 0

Product Description

The Laser series is a professional line array speaker system with laser positioning.Through the correction of the wave front, it is close to the plane wave transmission, and with the special ring-shaped patented hanging system device, multiple speakers can be assembled and arranged conveniently and flexibly to form a good line sound source array, with high continuous sound pressure level, Large dynamic, good transient, so as to solve the problem of medium and long distance sound transmission.With the ideal combination of Laser series ultra-low frequency speakers, the whole sound reinforcement system can make the high frequency clear and bright, the mid frequency wide and full, and the bass with good elasticity and sufficient strength. Laser series full-frequency speakers are equipped with laser laser devices, so that the system can more intuitively simulate the direct angle direction of the line sound source during engineering installation and debugging.

In this series, the Laser2 is designed for sound reinforcement in town halls, theaters, performance halls, multi-purpose conference rooms, stadiums and medium-sized touring performances.

Product Parameters

Model

Laser 2

Laser 2S

System

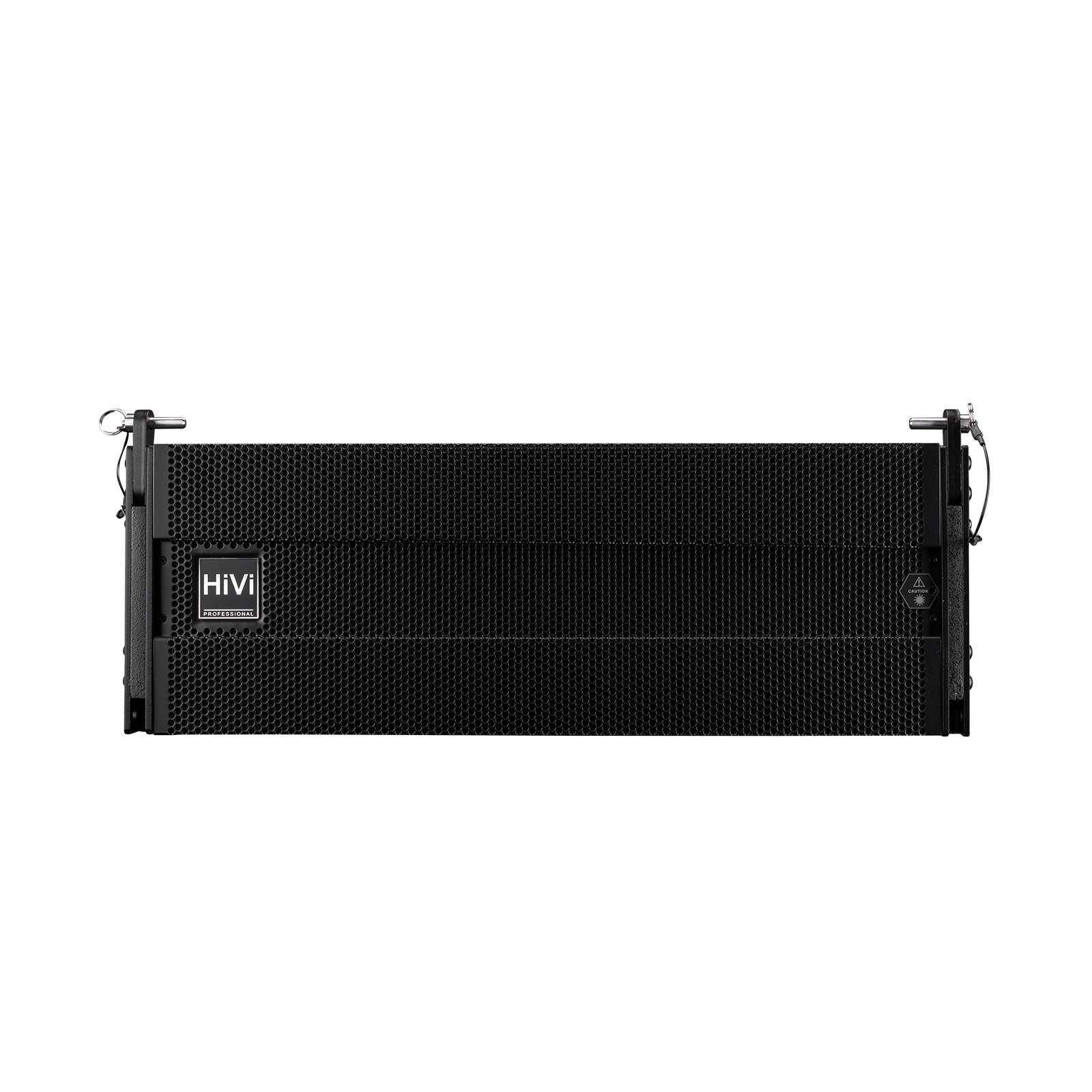

Line array full-range speakers

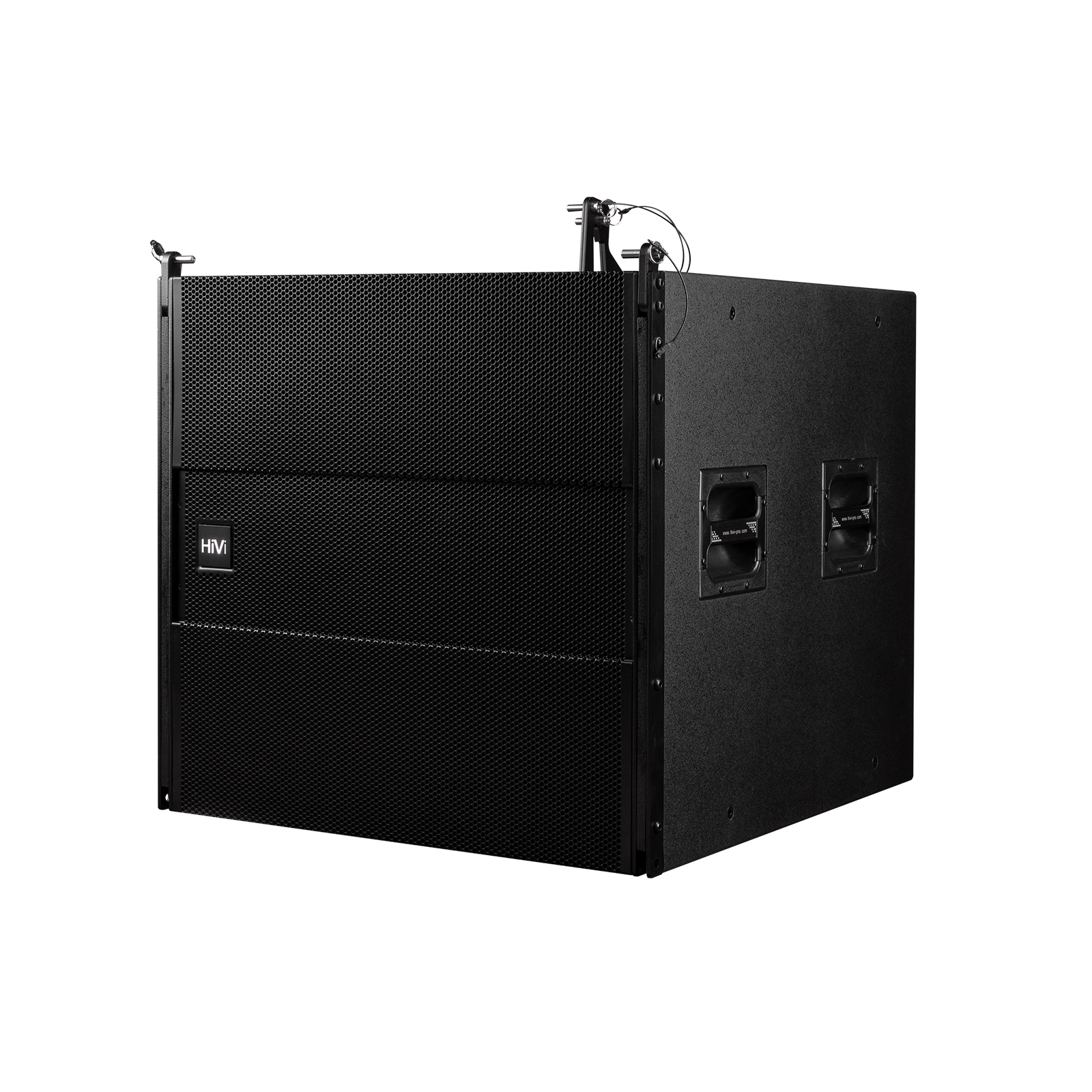

Line Array Subwoofers

Frequency Range

60Hz-20KHz

40Hz-250Hz

Rated input power

350W(continued)
700W(program signal)
1400W(peak)

800W(continued)

1600W(program signal)

3200W(peak)

Sensitivity

100dB(1W/1m)

108dB(1W/1m)

SPL

125dB(continued)

131dB(peak)

137dB(continued)

143dB(peak)

Rated impedance

16Ω

4 Ω

Coverage

120°x10°

Full-direction

Woofer

2x8" (50mm)

2x15"(75mm)

Tweeter

1 x 65mm"(Nd)



Connection

2xSpeakon NL4 ±1

2xSpeakon NL4 ±2

Laser device

2xSpeakon NL4 ±2

IN:≥12V 15KHz sine



    Installation

Special array hanging system/stacking with foot pads


Special array hanging system/stacking with foot pads


Dimension(WxHxD)

696×270×392mm

696×664×750mm

N.W.(±10%)

20.8KG

62 KG

Others


Box material:  plywood
Surface spraying: emery spraying process (color can be customized according to customer requirements)
Connector: 2 x 8-pin waterproof aviation speaker socket / 1+2-


/

software download

Swan HP408 processor line array speaker program: click to download

Instructions for laser pointing and positioning in the sound reinforcement area
1. When using the laser, make sure that the power amplifier and the ±2 channels of the NL4 seat behind the speaker are connected correctly, input a 15KHZ sine wave signal, and slowly increase the signal voltage to about 12V, the laser light-emitting port will emit a stable beam. The position is the sound reinforcement pointing area of the speaker.
Note: When using this function, please (1+, 1-) to prevent the speaker from being burned.
2. Schematic diagram of laser beam positioning:

System configuration diagram

click to download diagram
