Swan Laser3+Laser3S line array speaker
$ -
Postage : $0.00
Pro Audio Line array LR series Line array speaker
Stock:
0
|
Product Description |
||
|

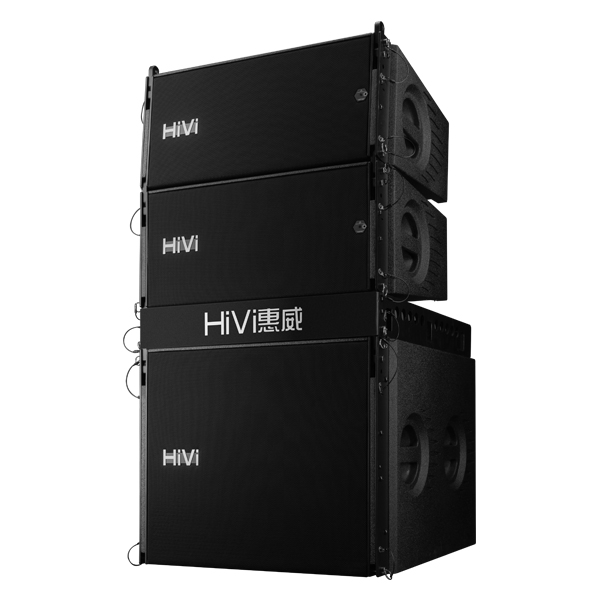

Laser series is new Line array speaker system launched by Swan. It adopts a special three-point hanging system structure to form a good vertical coverage directivity, high continuous sound pressure level, high dynamic and good transient. The ultra-low frequency speakers are configured with an ideal external frequency division combination to achieve a good sound reinforcement effect. This system is especially suitable for the sound reinforcement needs of various gymnasiums, great hall, auditorium, theater, performing arts hall, multi-functional conference room and so on; It is also equipped with special hangers, pins, various connectors and automatic positioning devices for the direction area of patented sound reinforcement. |
||
|
Technical Parameters |
||
|
Model |
Laser3 |
Laser3S |
|
Type |

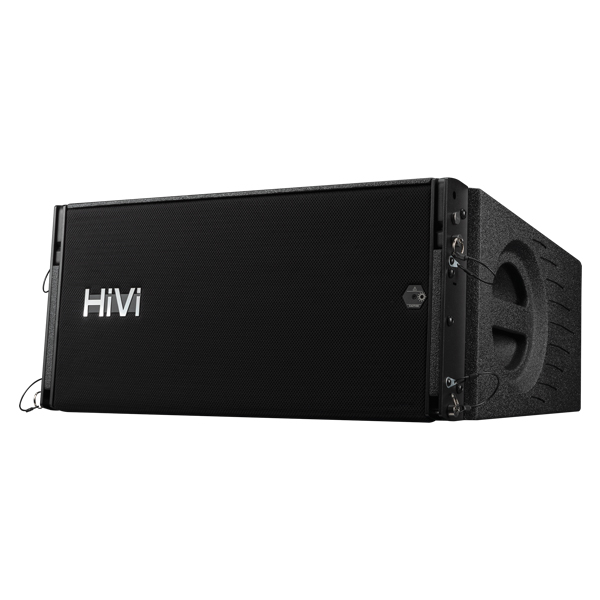

External three-way speakers |

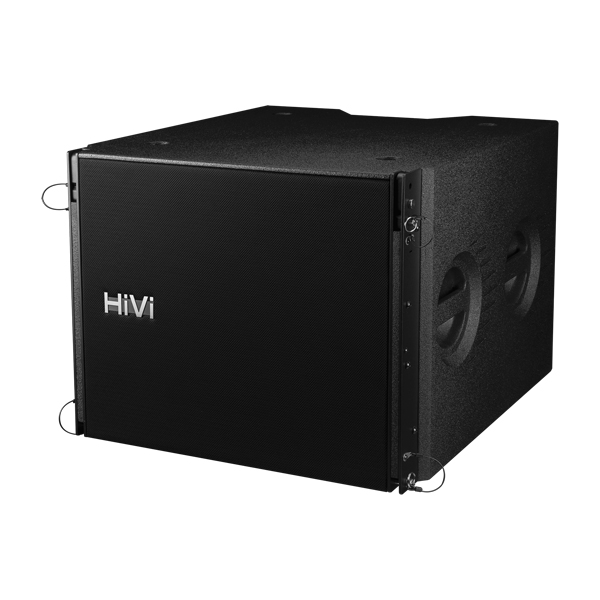

Subwoofer Speaker |
|
Frequency Range |
LF：60Hz-3KHz MF :60Hz-3KHz HF :1KHz-22KHz |
30Hz-250Hz |
|
Rated Power |
LF：350W MF：350W HF：150W |
800W |
|
Sensitivity |
LF：100dB MF：100dB HF：112dB |
100dB |
|
SPL（peak） |
LF：131dB MF：131dB HF：140dB |
137dB |
|
Rated Impedance |
LF：16Ω MF：16Ω HF：16Ω |
8Ω |
|
Unit configuration |
LF：1*10"（65mm）Nd MF：1*10"（65mm）Nd HF：1*2.6"（65mm）Nd |
1*18（100mm）Nd |
|
Connection |
LF（1+，1-） MF（2+，2-） HF（3+，3-） |
（1+，1-） |
|
Pointing System |
Laser Pointer Input 2+，2-（Optional accessories） |
/ |
|
Hanging system |
Special array hanging system |
Special array hanging system |
|
Coverage（H×V） |
90×10° |
/ |
|
Front protection |
Black steel( water resistant mesh) |
Black steel( water resistant mesh) |
|
Wood |
Plywood |
Plywood |
|
Finish |
Black wear-resistant polyurea waterproof painting |
Black wear-resistant polyurea waterproof painting |
|
Installation |
Hanging、stack |
Hanging、stack |
|
Dimension（mm）（W×H×D） |
860×303×470 |
860×555×730 |
|
N.W.(±10%) |
34KG |
67KG |
|
Dimensions and Structure |
||
|
|
||
|
Instructions for laser pointing and positioning in the sound reinforcement area |
||
|
1. First make sure that the power amplifier and the 8-pin waterproof speaker stand (1+, 1-) port are connected correctly, input a low voltage 15KHz sine wave signal, you will hear the slight high frequency sound of the woofer, and then continue to slowly increase the input signal voltage , until the laser light outlet on the front of the speaker emits a stable beam, and the projection position of the beam is the sound reinforcement pointing area of the speaker.
Note: When using this function, please mute the ports (3+, 3-) to prevent the speakers from being burned.
2. Schematic diagram of laser beam positioning, as shown in the figure.
Note: This pointing system is an optional accessory, please make sure that the speaker has this function before using it.
|
||
|
