M806A Parameters
|
|
| Series： | Swan Hometheater system |
| Model： | HiVi M806A |

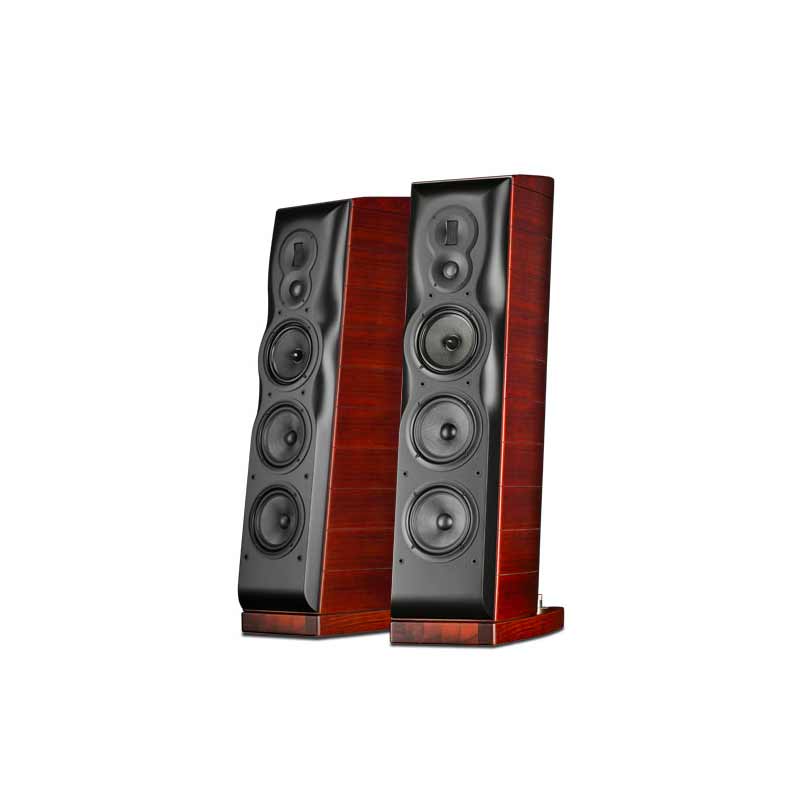

| Front speaker | |
| System type | 4th phase inverted speaker system |
| Speaker driver: |
6.5'' woofer x2
|
|
6.5'' midbass
|
|
|
26mm metal dome tweeter
|
|
| Frequency range： | 38Hz-20kHz |
| Distortion | 62Hz-20kHz≤1%(2.83V/1m) |
| Sensitivity(2.83V/1m)： | 89dB |
| Rated impedance： | 4Ω |
| Power range： | 10W-120W |
| Size (WxDxH) ： | 253x643×1076mm |
| N.W.(each) ： | 44.5kg |

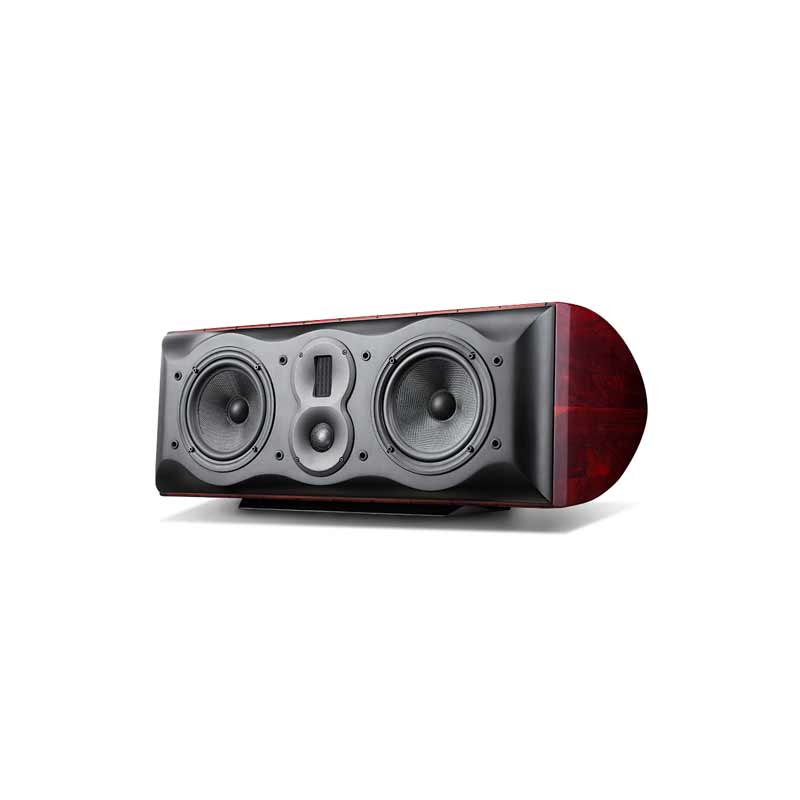

| Center speaker | |
| System type | 3th phase inverted speaker system |
| Speaker driver: |
6.5''woofer tweeter x2
|
|
26mm metal dome tweeter
|
|
|
Isodynamic ribbon tweeter
|
|
| Frequency range： | 55Hz-20kHz |
| Distortion | 62Hz-20kHz≤1%(2.83V/1m) |
| Sensitivity(2.83V/1m)： | 89dB |
| Rated impedance： | 4Ω |
| Power range： | 10W-120W |
| Size (WxDxH) ： | 650×373×264mm |
| N.W.(each) ： | 21kg |

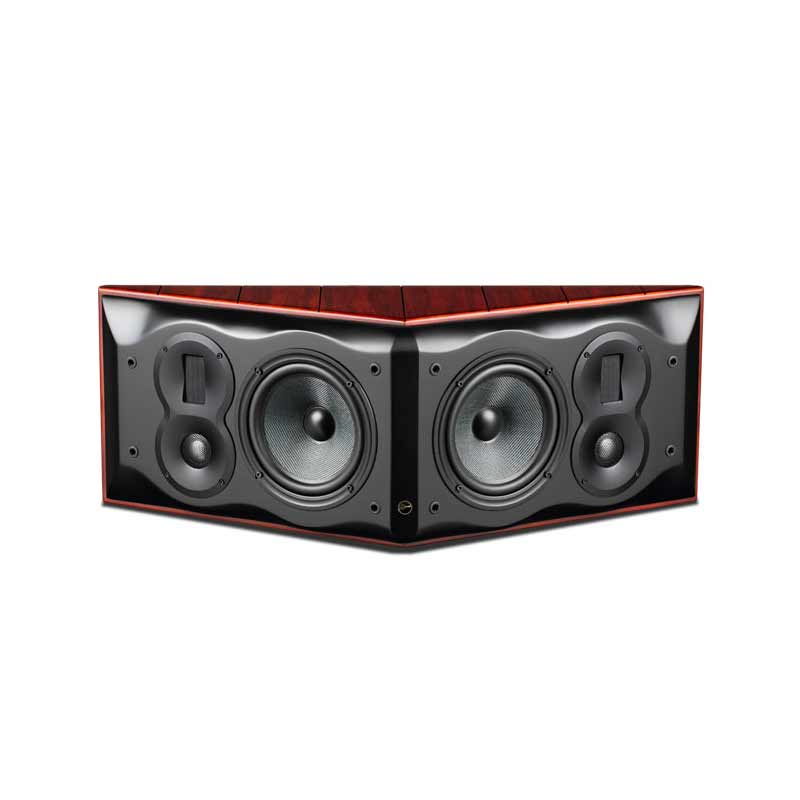

| Surround speaker | |
| System type | Bi pole/DipoleSurround speaker |
| Speaker driver: |
Pro 6.5'' mid-bass ×2
|
|
28mm dome tweeter×2
|
|
|
Isodynamic ribbon tweeter×2
|
|
| Frequency range： | 70Hz-20kHz(Bipole/Dipole) |
| Distortion | 90Hz-20kHz≤1%(2.83V/1m) |
| Sensitivity(2.83V/1m)： | 88dB |
| Rated impedance： | 4Ω |
| Power range： | 10W-120W |
| Size (WxDxH) ： | 682×338×250mm |
| N.W.(each) ： | 17kg |
| Finish： | Upper and lower panels luxurious natural logs + side solid wood veneer with aluminum decorative ring |

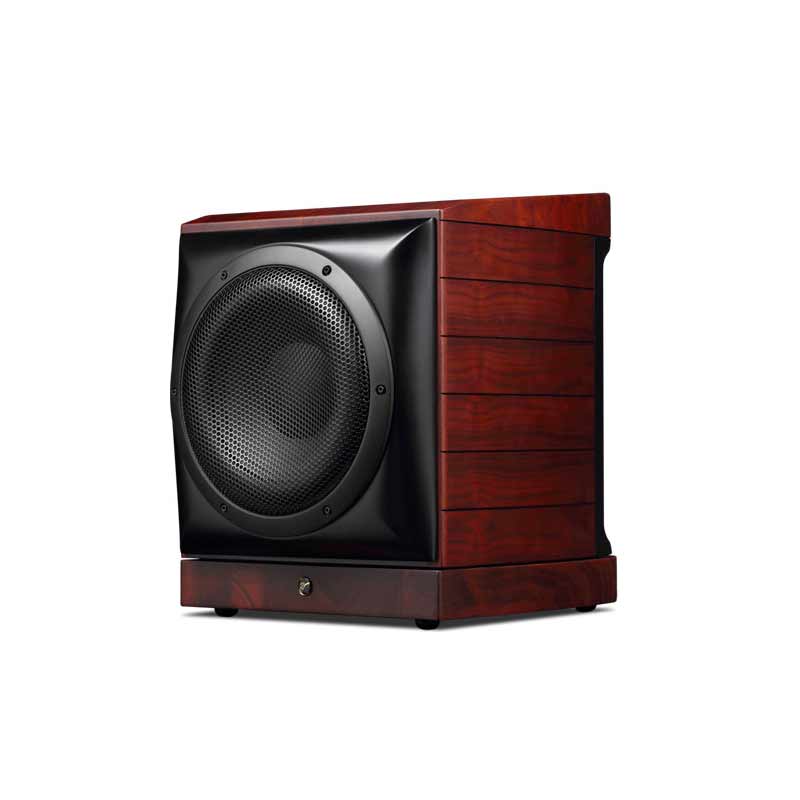

| Sub10M Active speaker | |
| Systen： | One-way enclosed speaker system |
| Speaker driver： | Pro 10'' woofer |
| Frequency range： |
25Hz-200Hz(NORMAL)
|
|
25Hz-150Hz(LOW-PASS FILTER)
|
|
| Rated power： | 150W |
| SNR： | >90dB(unweighted) |
| Input sensitivity： | 200mV |
| Input impedance： | 47kΩ |
| Size(WxDxH) ： | 360x428x460mm |
| N.W.(each) ： |
29kg
|
