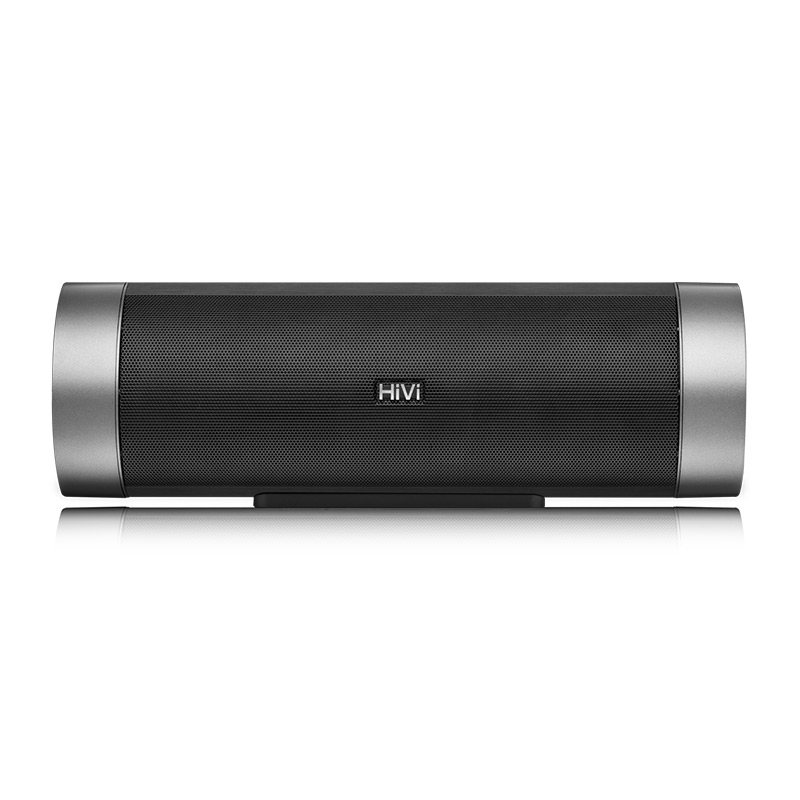

Center speaker |
|
|
Product number |
M5103C Center Speaker |
|
System type |
Two-way two-stage closed speaker system |
|
Speaker driver configuration |
3-inch mid-bass unit x 2 |
|
|
20mm dome tweeter |
|
Power range |
1W-60W |
|
Frequency Range |
130Hz-20kHz |
|
Sensitivity |
88dB(2.83V/1m) |
|
Rated impedance |
8Ω |
|
Distortion |
200Hz-20kHz≤1%(2.83V/1m) |
|
Product Size |
100×322mm(φ×H) |
|
Net weight |
1.9kg |
|
Box material |
Aluminum alloy |
|
M5013 Parameters |
|
|

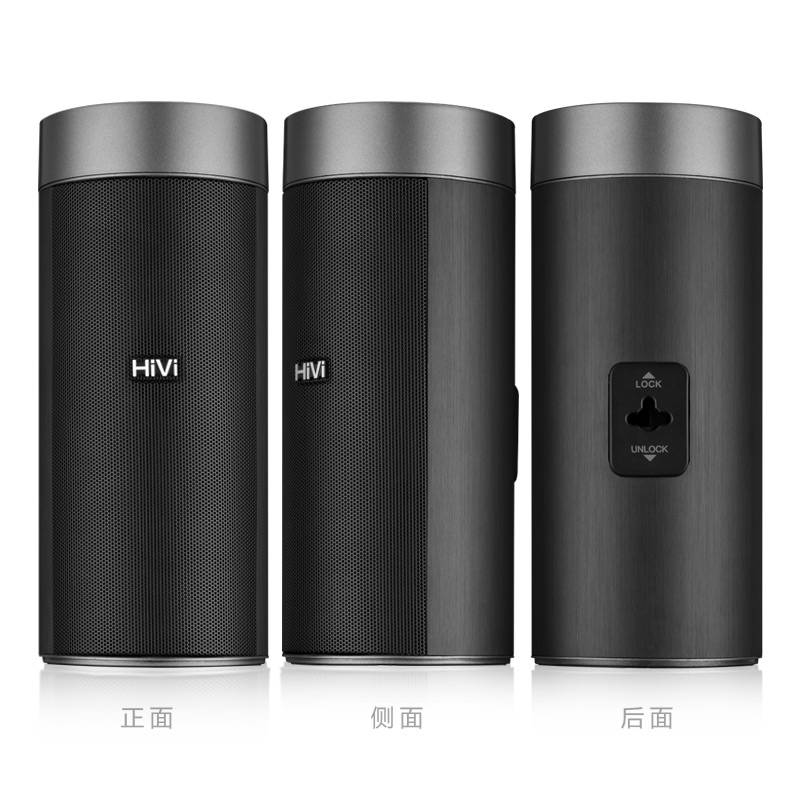

Main/surround speaker |
|
|
Model |
M5103 Main Speaker/Surround Speaker |
|
System type |
Two-way enclosed speaker system |
|
Speaker driver configuration |
3-inch mid-bass unit |
|
20mm dome tweeter |
|
|
Power range |
1W-30W |
|
Frequency Range |
130Hz-20kHz |
|
Sensitivity |
88dB(2.83V/1m) |
|
Rated impedance |
4Ω |
|
Distortion |
200Hz-20kHz≤1%(2.83V/1m) |
|
Product Size |
100×236mm(φ×H) |
|
Net weight |
1.35kg |
|

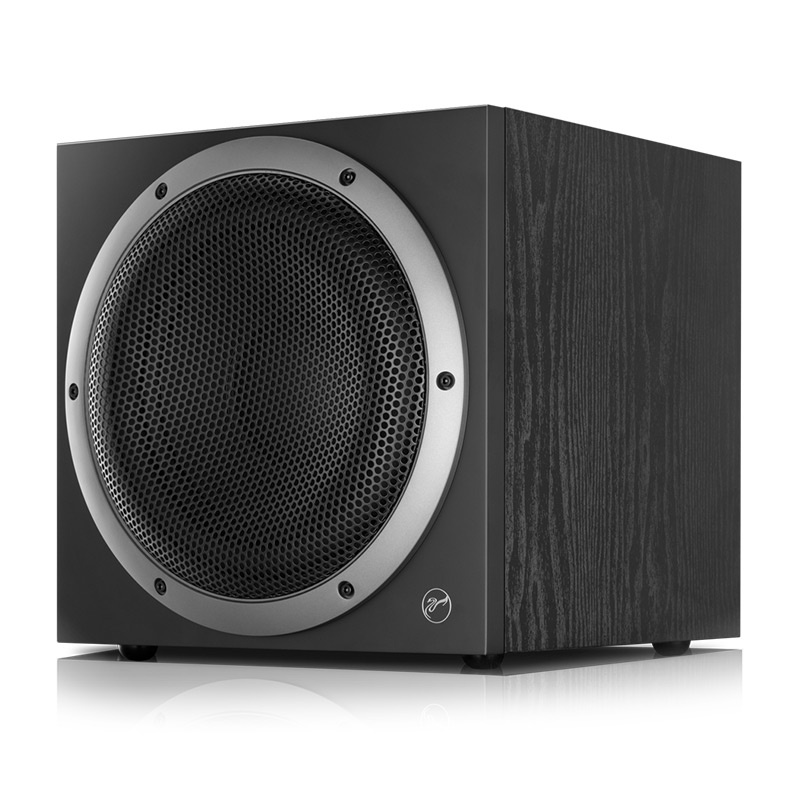

Acitve subwoofer |
|
|
Product number |
SUB10G |
|
System form |
One closed active subwoofer |
|
unit configuration |
Professional 10-inch subwoofer |
|
rated power |
150W |
|
Input sensitivity |
200mV |
|
Frequency Range |
25Hz-200Hz(NORMAL) 、25Hz-150Hz(LOW-PASS FILTER) |
|
input resistance |
47kΩ |
|
signal to noise ratio |
>90dB(un-weighted) |
|
net weight |
16.6kg |
|
Product Size |
325×308×316mm(W×D×H) |
