M6
Parameters
|
|

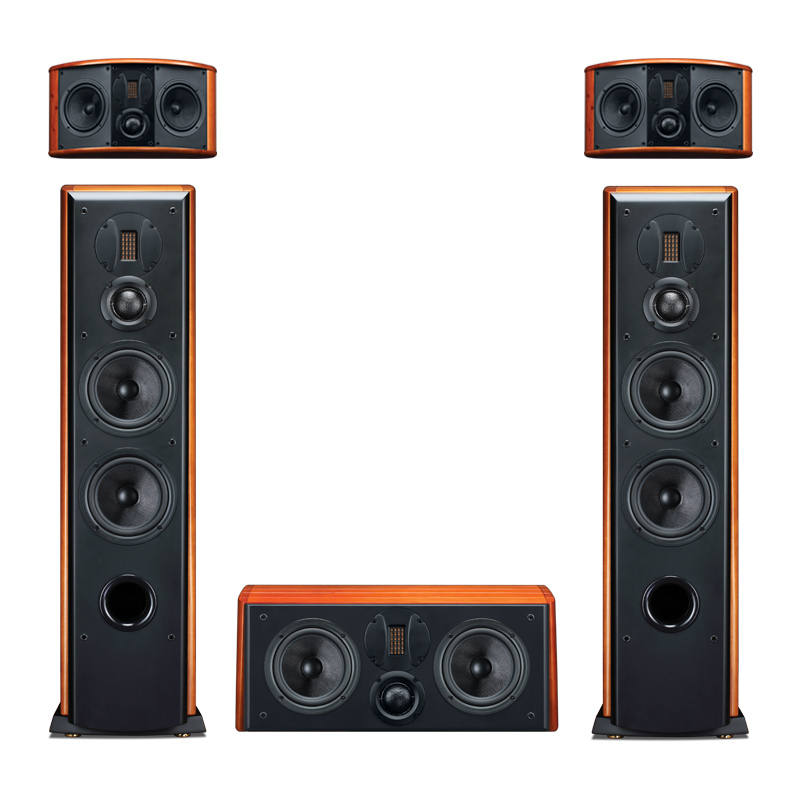

Series: | Home Theater Series |
Model: | Swans M6 |
Front Main Speaker | |

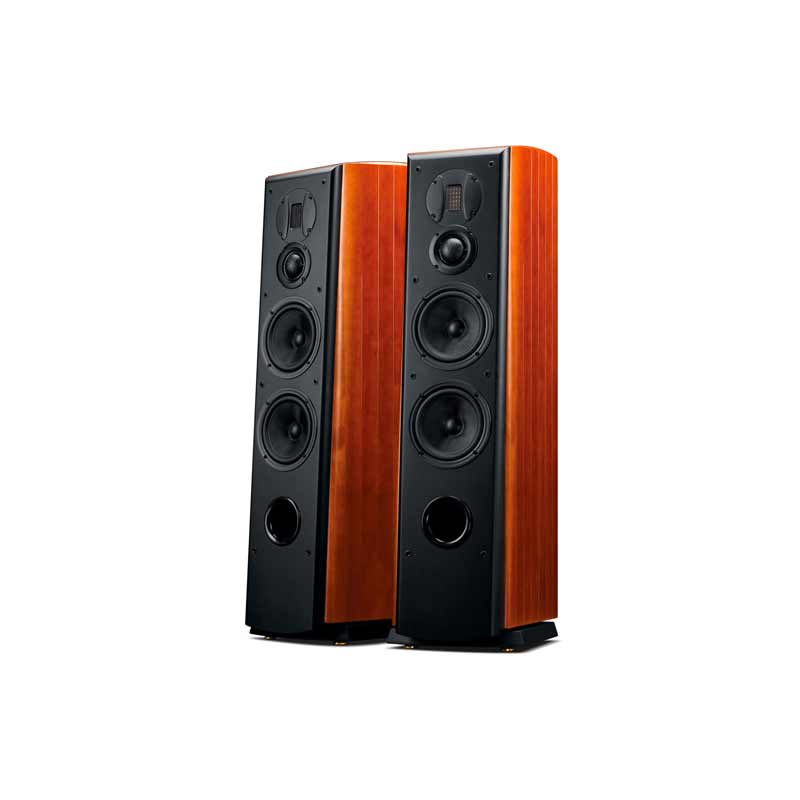

Front Main Speaker | Front Main Speaker Swans M6F |
System Type: | 3-way 4th-order vented box system |
Drivers Configuration: |
Two
6.5" woofers
|
2”
dome midrange driver
|
|
Isodynamic
ribbon tweeter
|
|
Frequency Range: | 38Hz - 20kHz |
Harmonic Distortion: | 62Hz - 20kHz ≤1%(2.83V/1m) |
Sensitivity (2.83V/1m): | 89dB |
Nominal Impedance: | 4Ω |
Power Handling: | 10W - 120W |
Dimensions (W×D×H): | 11.4"×14.8"×40.8" |
Net Weight (each): | 75.0 lbs |
Front Center Speaker | |
Front Center Speaker | Front Center Speaker Swans M6C |
System Type: | 3-way 4th-order vented box system |
Drivers Configuration: |
Two
6.5" woofers
|
2”
dome midrange driver
|
|
Isodynamic
ribbon tweeter
|
|
Frequency Range: | 55Hz - 20kHz |
Harmonic Distortion: | 62Hz - 20kHz ≤1%(2.83V/1m) |
灵敏度Sensitivity (2.83V/1m): | 89dB |
Nominal Impedance: | 4Ω |
Power Handling: | 10W - 120W |
Dimensions (W×D×H): | 23.4"×10.9"×10.2" |
Net Weight (each): | 35.3 lbs |
Surround Speaker | |
Surround Speaker | Surround Speaker Swans M6R |
System Type: | 3-way 2nd-order sealed box system |
Drivers Configuration: |
Two
6.5" woofers
|
2”
dome midrange driver
|
|
Isodynamic
ribbon tweeter
|
|
Frequency Range: | 60Hz - 20kHz |
Harmonic Distortion: | 65Hz - 20kHz ≤1%(2.83V/1m) |
Sensitivity (2.83V/1m): | 89dB |
额定阻抗Nominal Impedance: | 4Ω |
Power Handling: | 10W - 120W |
Dimensions (W×D×H): | 20.8"×9.4"×11.1" |
Net Weight (each): | 25.4 lbs |
Finish: | Natural wood cabinet with aluminium ring |
