Swan 2.3B Parameter | |
| Series： | Swans Flagship series |
| Model： | Swans2.3B |

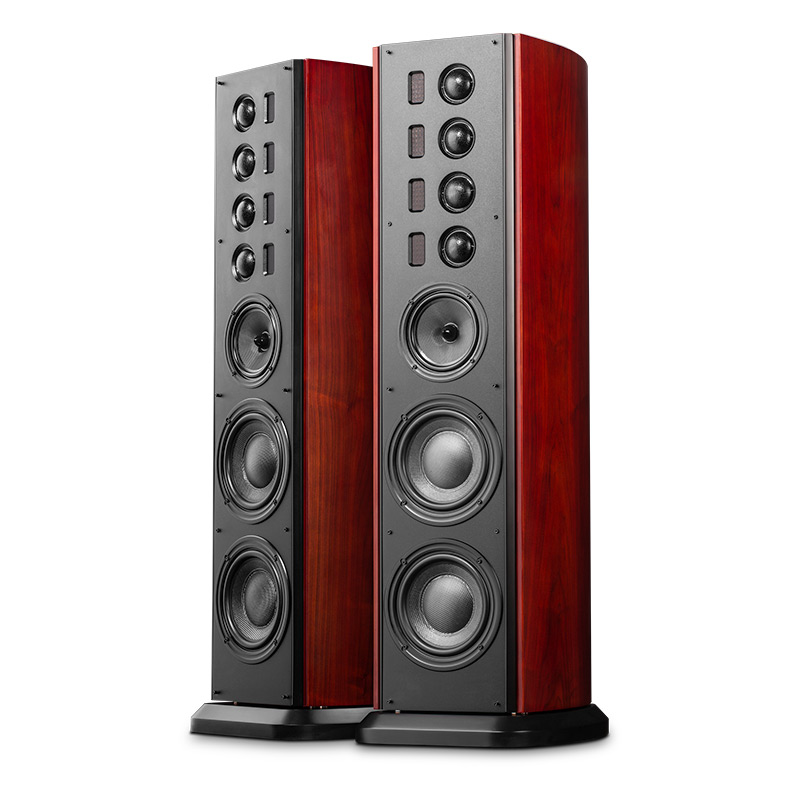

| Front Main Speaker | |
| Front Main Speaker | Front Main Speak Swans 2.3B |
| System Type： | 3-way 4th-order vented box system |
| Drivers Configuration： | Four 6.5" bass-midranges |
Sixteen 2” dome midrange drivers | |
Sixteen isodynamic ribbon tweeters | |
| Frequency Range： | 40Hz - 20kHz |
| Harmonic Distortion： | 50Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 90dB |
| Nominal Impedance： | 16Ω |
| Power Handling： | 10W - 500W |
| Dimensions (W×D×H)： | 34"×18.1"×76.0" |
| Net Weight (each)： | 248.0 lbs |

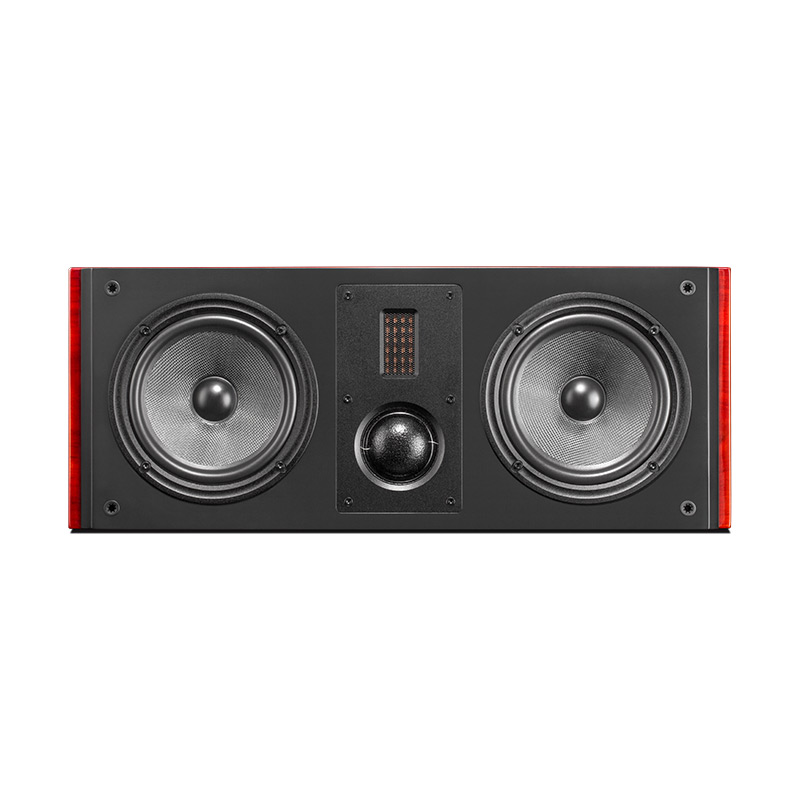

| Front Center Speaker | |
| Front Center Speaker | Front Center Speaker Swans 2.3C+ |
| System Type： | 3-way 4th-order vented box system |
| Drivers Configuration： | Four 6.5" bass-midrange drivers |
1.1” soft dome tweeter | |
two isodynamic ribbon tweeters | |
| Frequency Range： | 40Hz - 20kHz |
| Harmonic Distortion： | 55Hz - 20kHz ≤1%(2.83V/1m) |
Bitmap | 90dB |
Sensitivity (2.83V/1m)： | |
| Nominal Impedance： | 8Ω |
| Power Handling： | 10W - 320W |
| Dimensions (W×D×H)： | 40.2"×13.4"×12.1" |
| Net Weight： | 72.7 lbs |

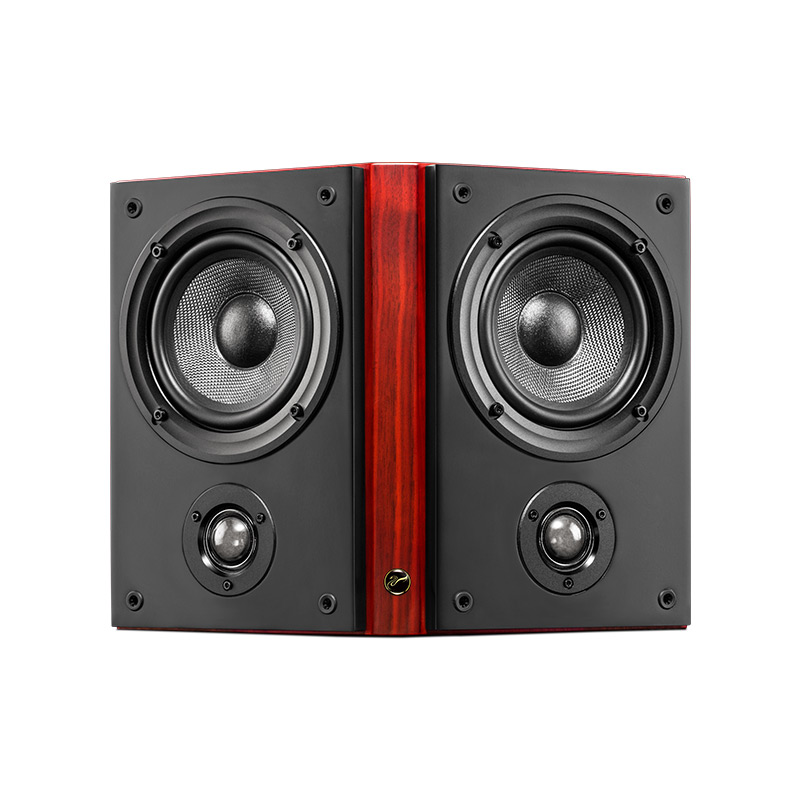

| Surround Speaker | |
| Surround Speaker | Surround Speaker F5R+ |
| System Type： | Di-pole surround speakers |
| Drivers Configuration： | Two 6.5" bass-midrange drivers, |
two 1.1” soft dome tweeters | |
| Frequency Range： | 55Hz - 20kHz |
| Harmonic Distortion： | 53Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 87dB |
| Nominal Impedance： | 8Ω |
| Power Handling： | 10W - 150W |
| Dimensions (W×D×H)： | 19.9"×11.4"×9.3" |
| Net Weight (each)： | 28.7 lbs |
| Finish： | Wood veneer and multi coat piano lacquer with aluminium ring |
| Surround Speaker | |
| Surround Speaker | Surround Speaker F5R+ |
| System Type： | Di-pole surround speakers |
| Drivers Configuration： | Two 6.5" bass-midrange drivers |
two 1.1” soft dome tweeters | |
| Frequency Range： | 55Hz - 20kHz |
| Harmonic Distortion： | 53Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 87dB |
| Nominal Impedance： | 8Ω |
| Power Handling： | 10W - 150W |
| Dimensions (W×D×H)： | 19.9"×11.4"×9.3" |
| Net Weight (each)： | 28.7 lbs |
| Finish： | Wood veneer and multi coat piano lacquer with aluminium ring |
| Active Subwoofer | |
| Active Subwoofer | Swans Sub15B |
| System Type： | 1-way sealed active subwoofer |
| Drivers Configuration： | 15" subwoofer |
| Rated Power： | 1000W |
Signal-to-Noise： | >100dB(Unweigthed) |
| Input Sensitivity： | 100mV |
| Input Impedance： | 22kΩ |
| Dimensions (W×D×H)： | 22.9"×21.1"×18.7" |
| Net Weight (each)： | 75.0 lbs |
