Swan HY200 Honor Series Conference System
$ -
Postage : $0.00
Model
Conference system Full-digital wireless conference system
Stock: 0

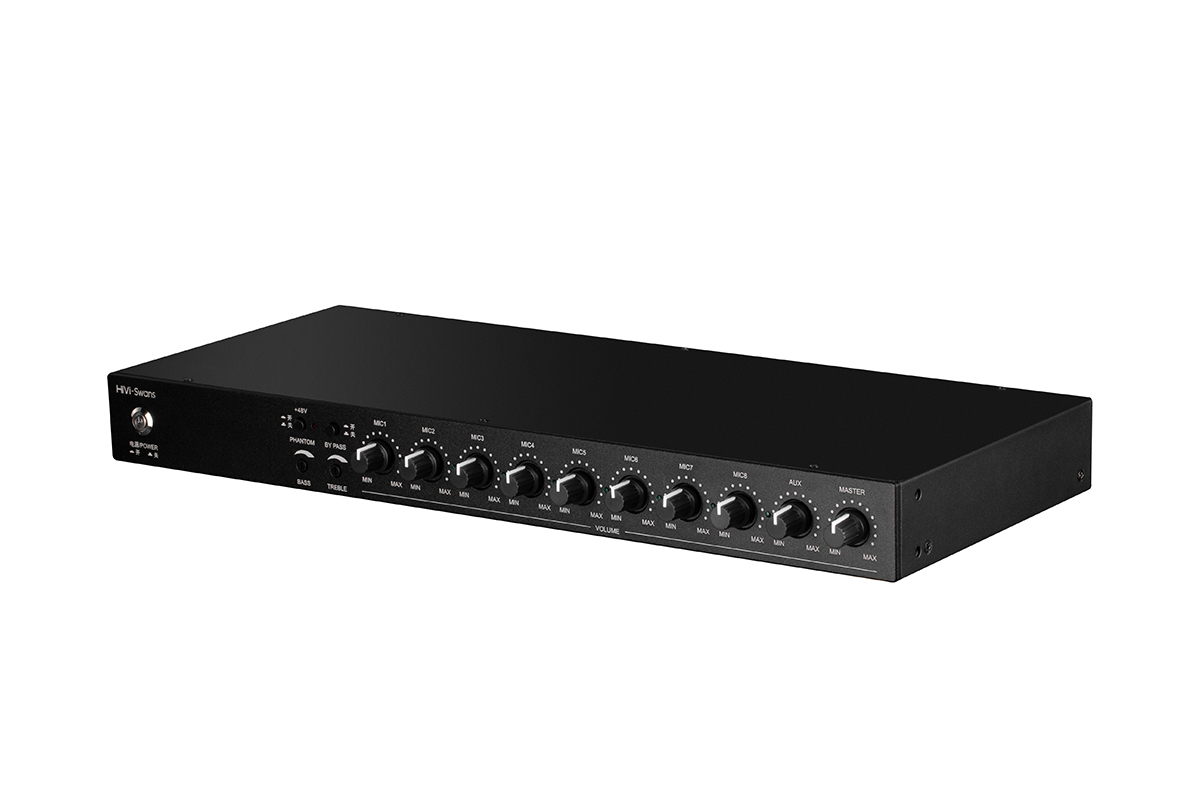

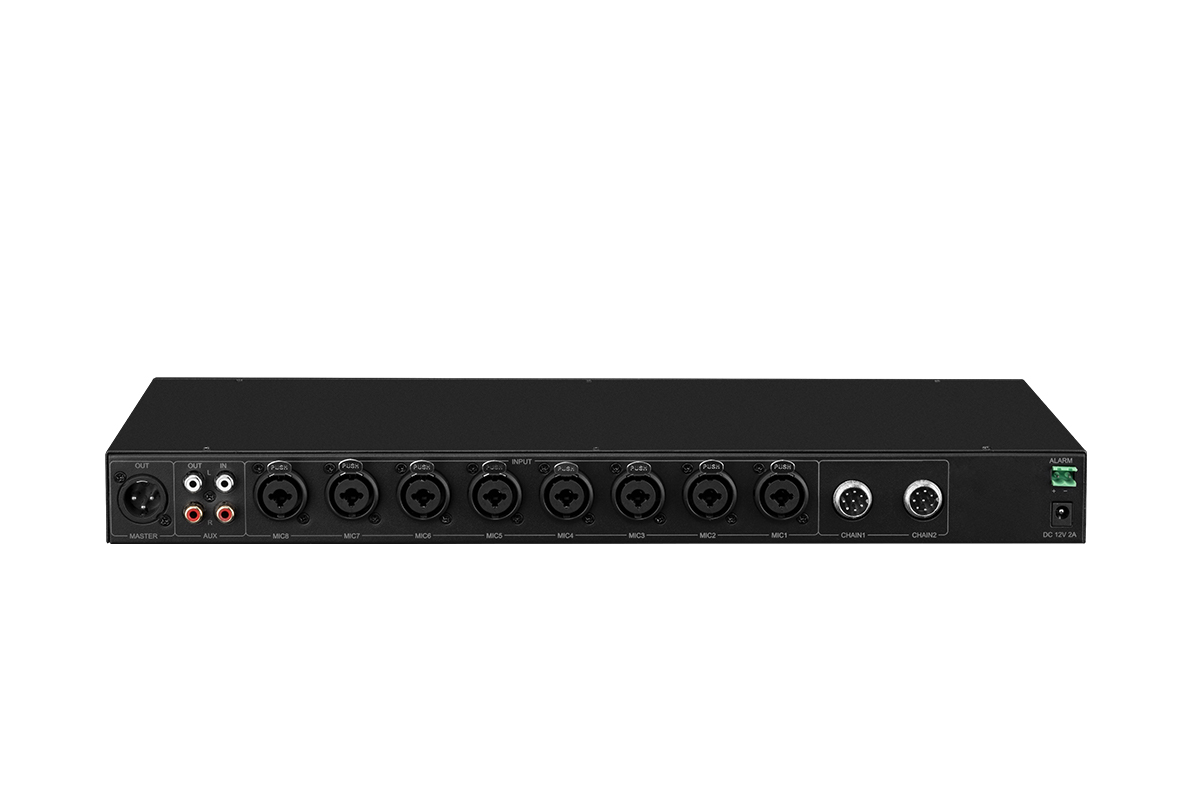

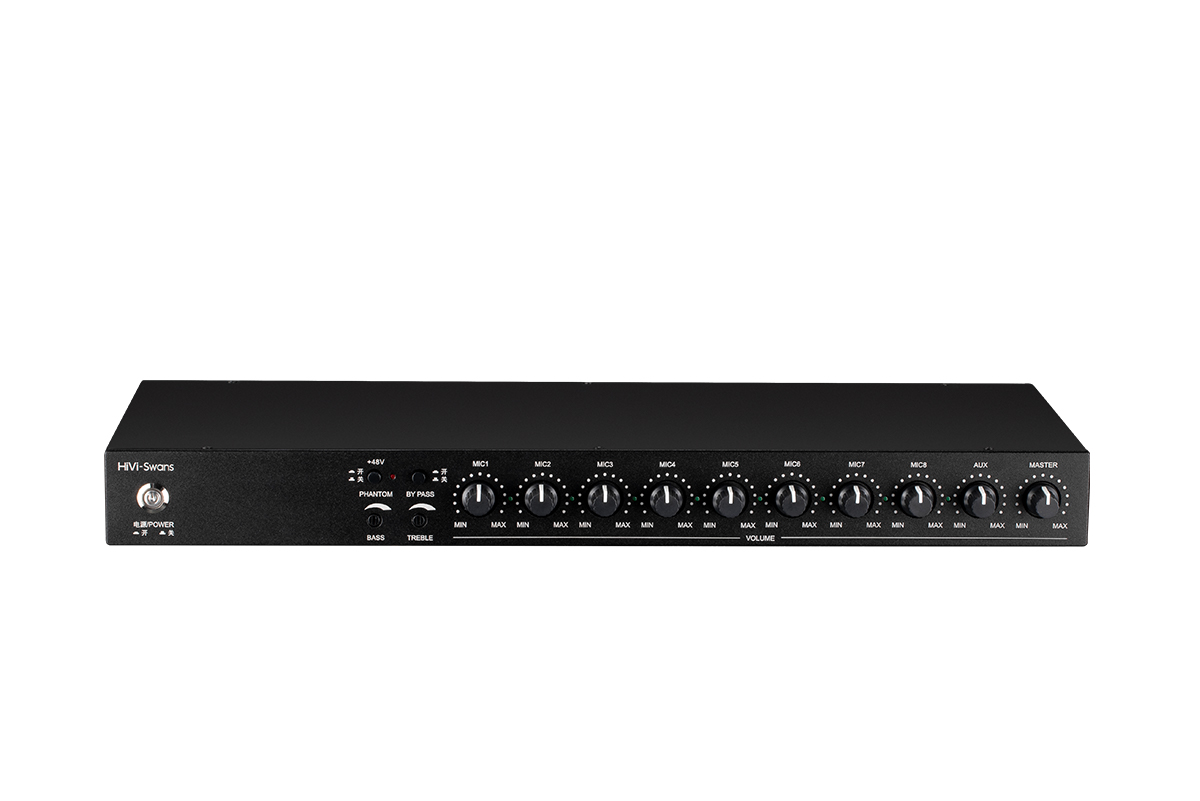

HY200MCU 8-channel phantom mixer

· Product Features

18-channel microphone input, 1 line input, 1 line output.
2The host has a 48V phantom power switch key.
3Built-in anti-whistle function, support all-channel phantom power supply.
4Each channel has an independent volume control, and has a priority mode, when the priority channel speaks, the level of other channels is automatically attenuated.
5High-fidelity sound quality circuit design, restore the essence of sound with signal level indicator.
6The main unit has two sets of audio mixing outputs for sound reinforcement systems or other equipment.

· Technical Parameters

Model

HY200CCU

Power supply

DC 12V 2A

Frequency response

70HZ ~ 18KHz ± 3dB

Distortion

1%

SNR

70dB(A weight)

Phantom power

DC 48Vself-locking switch

N.W.

2.2Kg

Host Dimension

440*220*43.9mm

Priority

MIC1MIC2 > MIC3 ~ MIC8

Working Environment

Indoor,0-45

Stock Environment

Indoor-20-50


HY200D Wired digital conference speaking unit

·  Product Features

1All metal base + square column microphone design.
2Condenser microphone, super cardioid polar pattern, can clearly capture sound details.
3Built-in windproof cotton, optimized sound cavity structure design, so that the sound quality is better.
4The microphone pitch angle can be adjusted arbitrarily to ensure the best sound pickup effect.
5Black all-metal base with fine low-gloss and matte finish.
6The base is sturdy and thick, and is equipped with shock-proof insulating rubber pads, which can effectively reduce frictional vibration and mechanical noise on the installation surface.
7Hand in hand conference microphone comes with 1.5m eight-core female conference extension cable.
8There is a microphone self-locking switch button, press the switch button, the microphone red indicator light is on, it is in the open state.
9Suitable for various occasions such as conferences, speeches, teaching, etc.
10Use with the conference host.



HY200P Phantom Wired Conference Speaking Unit

·  Product Features

1All metal base + square column microphone design.
2、电Condenser microphone, super cardioid polar pattern, can clearly capture sound details.
3Built-in windproof cotton, optimized sound cavity structure design, so that the sound quality is better.
4The microphone pitch angle can be adjusted arbitrarily to ensure the best sound pickup effect.
5Black all-metal base with fine low-gloss and matte finish.
6The base is sturdy and thick, and is equipped with shock-proof insulating rubber pads, which can effectively reduce frictional vibration and mechanical noise on the installation surface.
7The back of the base is a 3-pin electroplated nickel XLR male socket, which is used as an audio signal output terminal.
8The microphone works with 48V phantom power supply.
9There is a microphone self-locking switch button, press the switch button, the microphone red indicator light is on, it is in the open state.
10Suitable for various occasions such as conferences, speeches, teaching, etc.
11Use with the conference host.

Note: HY200D Suitable for Swans HY600 series host, HY800 series host

·Technical Parameters

Model

HY200D/HY200P

Elevation range

55 normal status 35

Microphone sensitivity

-36dB±2dB

Pickup distance

100-600mm

Measurement

Microphone38x28x238mm

Base:94.5x133x30mm

Weight

0.95kg

Working Environment

Indoor,0-45

Stock Environment

Indoor-20-50
