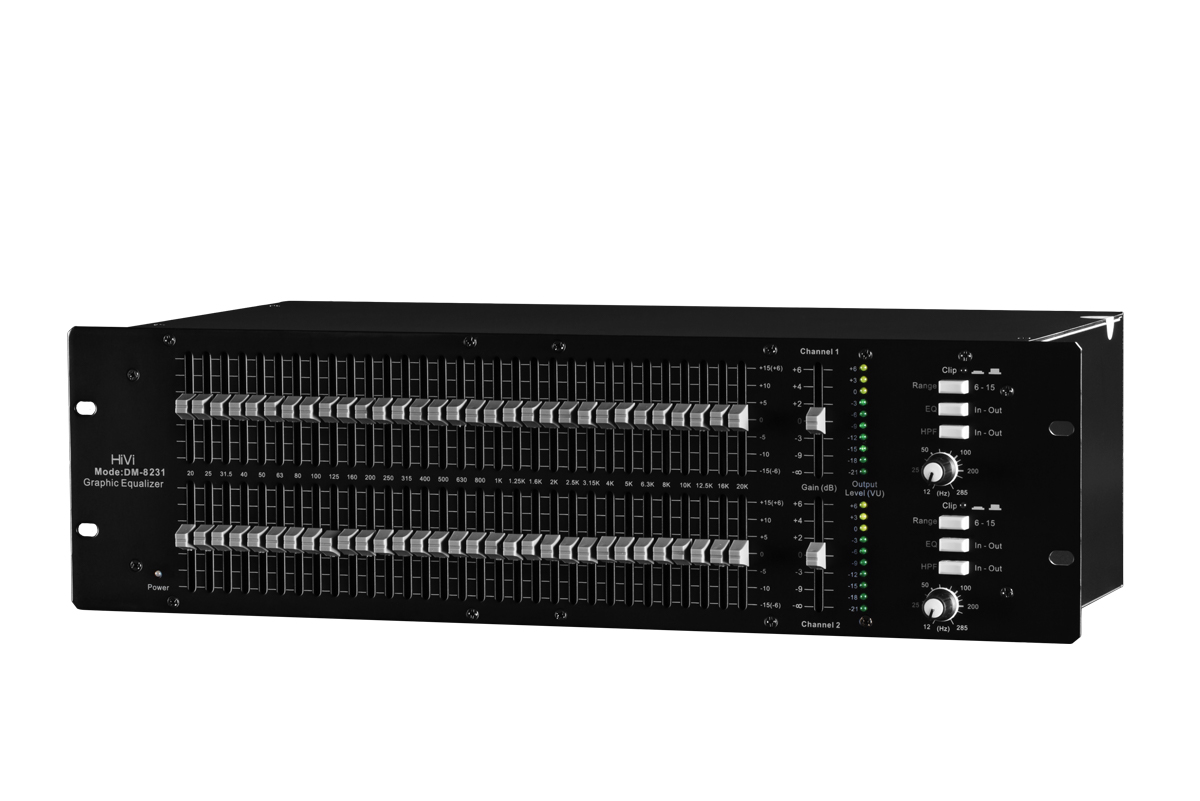

Swan DM-8231 Equalizer
$ -
Postage : $0.00
Public Broadcasting Commercial & background system Conference System Conference sound reinforcement system Professional Speaker Peripheral Series
Stock:
0
Feature of product
1. Constant low ripple "Q" design and precise reverberation near flat setting;
2. Precise Wien bridge filter, precise echo and low distortion;
3. Switchable high-pass filter;
4. High-quality faders with metal shafts;
5. The slide stopper in the center of the frequency characteristic is "closed";
6. Worldwide power supply;

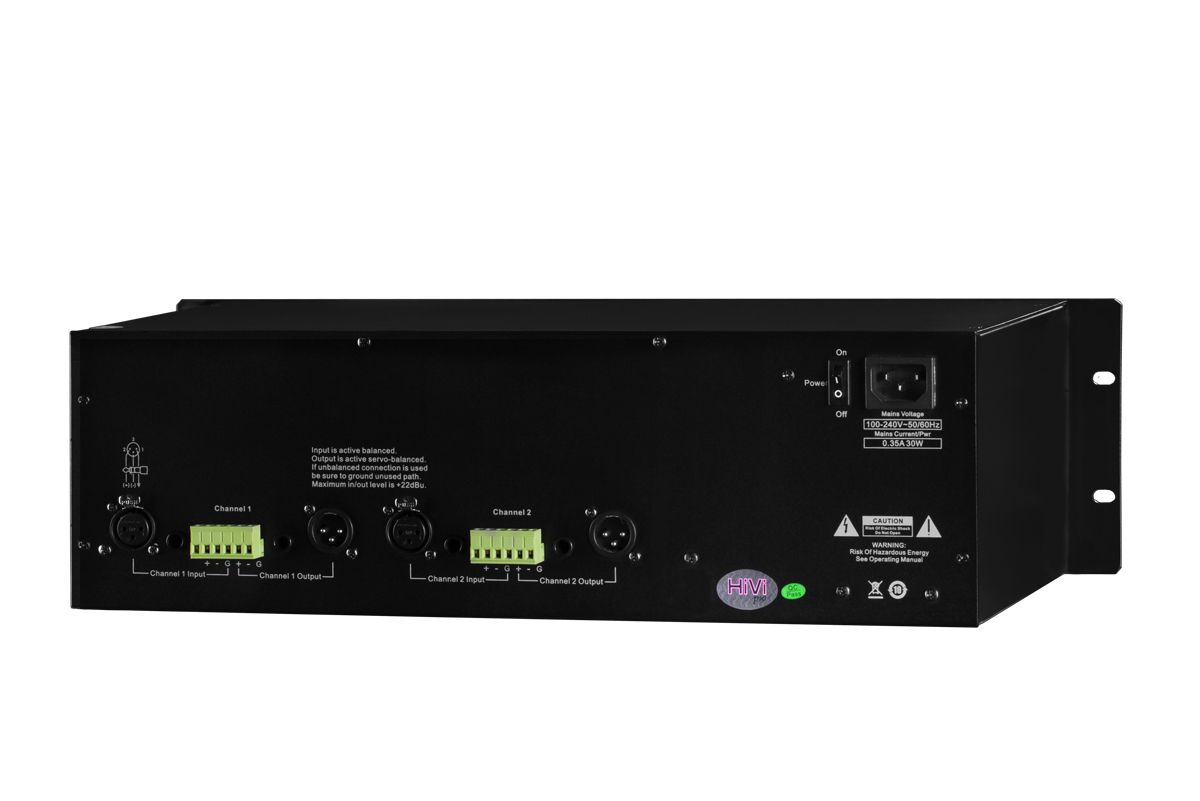

7. Balanced XLR, 1/4" standard input port;
8. Servo balanced XLR, 1/4" and standard output ports;
9. The equalizer uses "Q" to strengthen the Wien bridge filter and interleaved summation "Q" technology, which can achieve a maximum increase or decrease of ±15dB for each EQ point.
1. Constant low ripple "Q" design and precise reverberation near flat setting;
2. Precise Wien bridge filter, precise echo and low distortion;
3. Switchable high-pass filter;
4. High-quality faders with metal shafts;
5. The slide stopper in the center of the frequency characteristic is "closed";
6. Worldwide power supply;
7. Balanced XLR, 1/4" standard input port;
8. Servo balanced XLR, 1/4" and standard output ports;
9. The equalizer uses "Q" to strengthen the Wien bridge filter and interleaved summation "Q" technology, which can achieve a maximum increase or decrease of ±15dB for each EQ point.
Technical parameter
Model
DM-8231
Input
Type
Balanced/Unbalanced
Impedance
20KΩ/10KΩ
Maximum
level
+23dBu
Connector
1/4 telephone socket (TRS), XLR,
Euroblock
Output
Type
Balance
Impedance
100Ω
Minimum
load impedance
600Ω
maximum
level
+23 dBu
Connector
Overall
Frequence response
20 Hz-20 kHz +/-0.25
dB
THD
<.01%@+20dBu
IM Distortion (SMPTE)
<.01%@+20dBu
Output
noise and noise (unweighted)
-93d Bu
channel
separation
>95dB@ lKhz
Gain
control
8 to +6dB
Filter
Type
Constant Q/Wein Bridge
number
of segments
2x31
bandwidth
1/3 Octave
tolerance
±3%
scope
±6 dB, ±15 dB
(switchable)
Infrasound
filter
12dB/Octave @
14-280Hz
Power supply
Nominal voltage
100-240 VAC (50-60 Hz)
Power
30W
Physics
Shipping weight
17 lbs
Size
19,,Lx5.25,,Hx8"D
