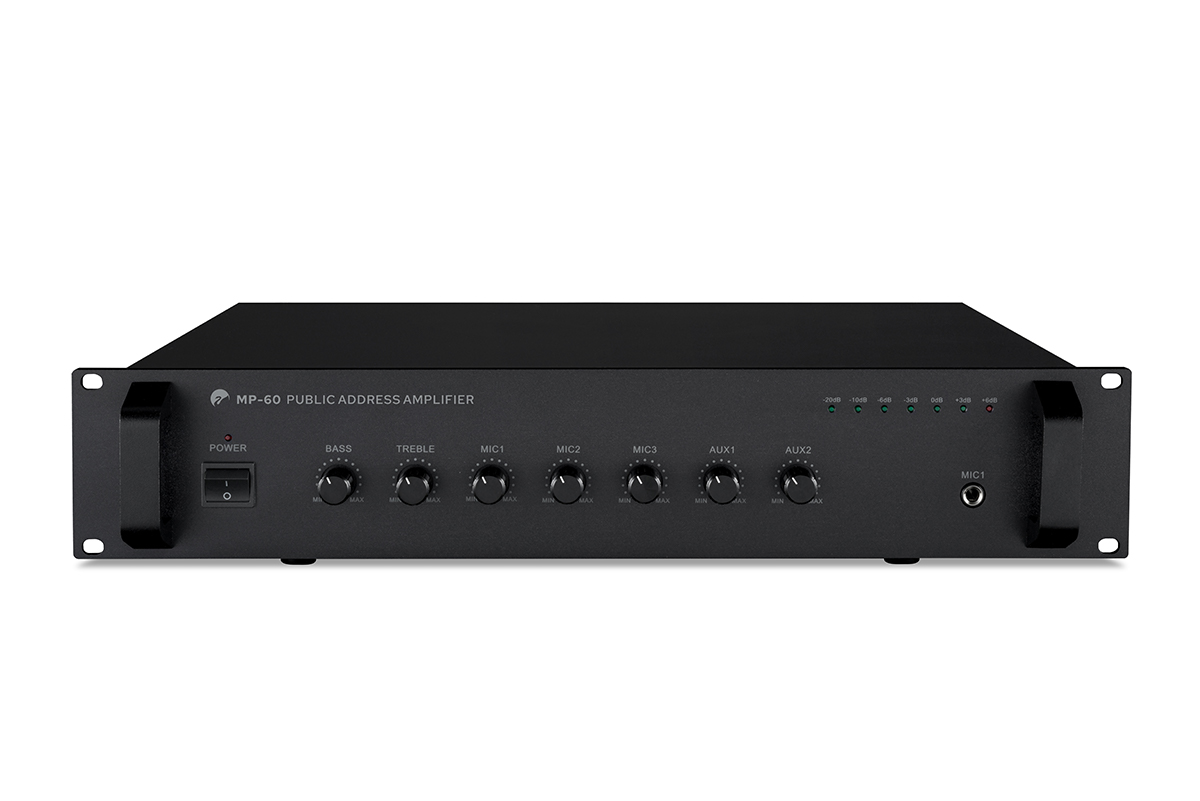

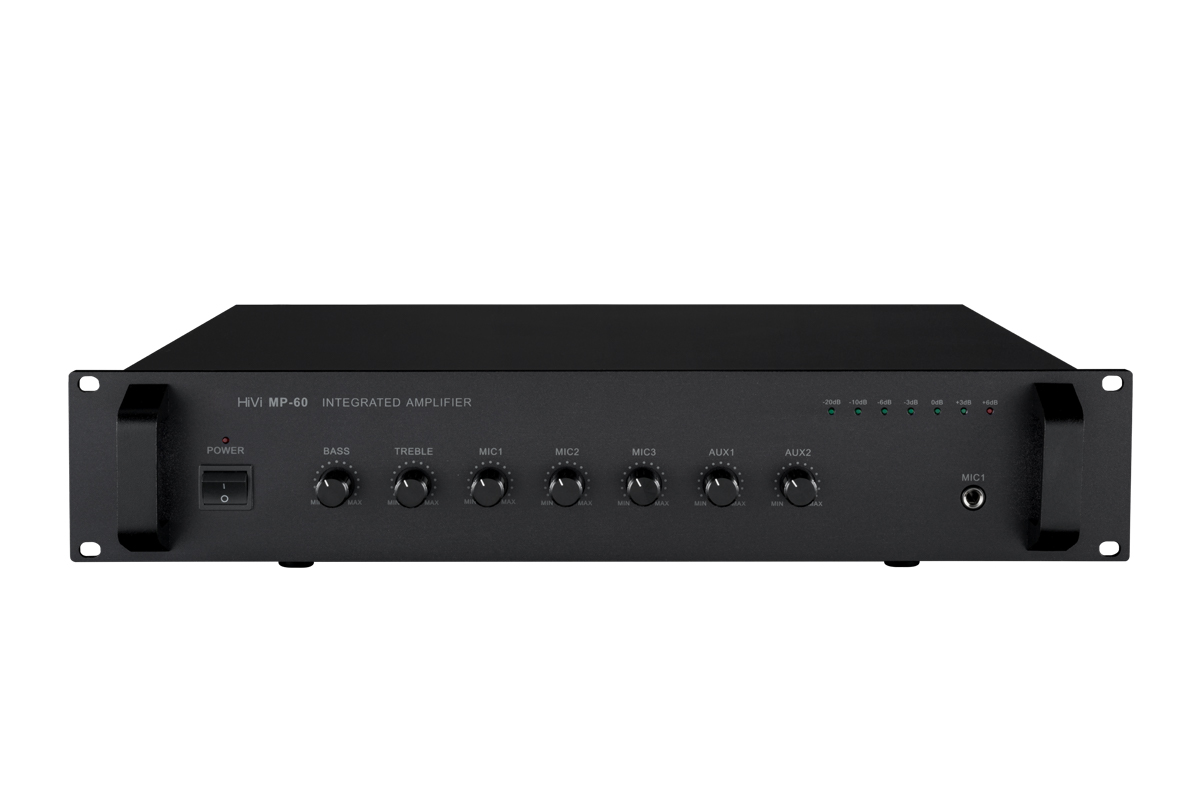

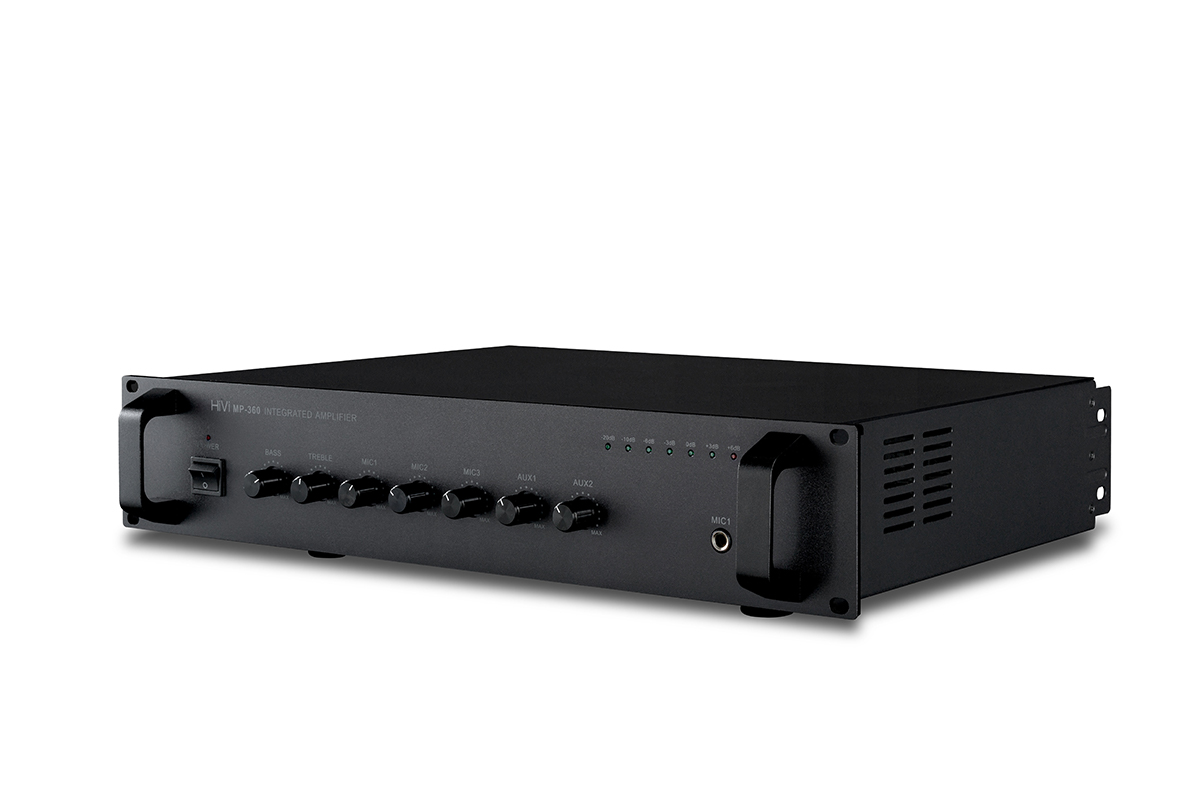

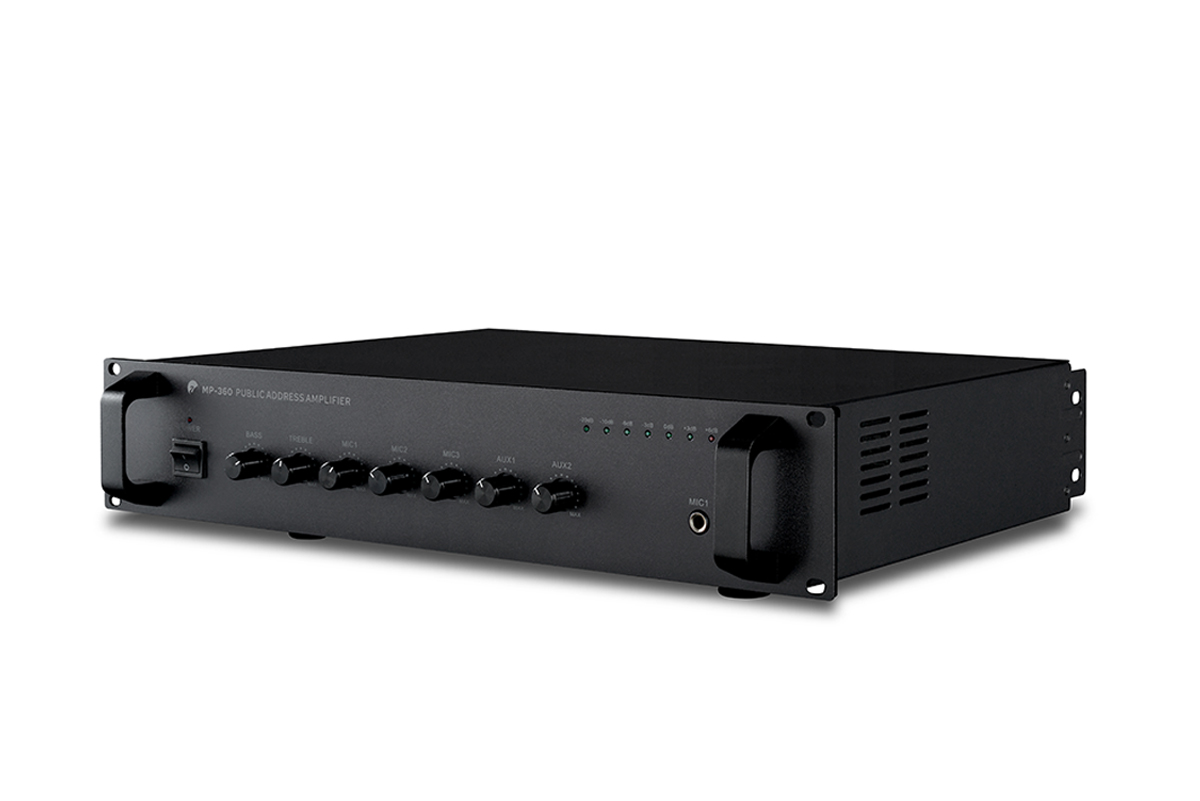

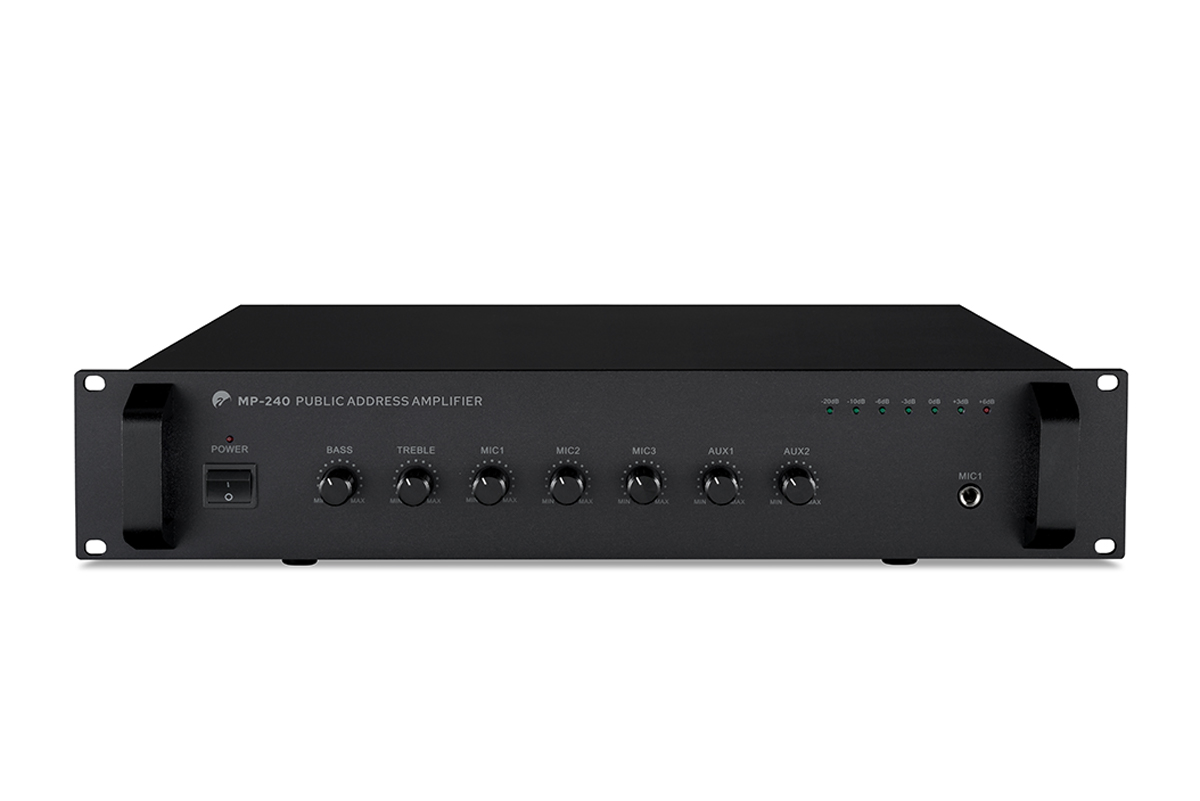

Swan MP series constant pressure combined power amplifier MP-60/MP-120/MP-240/MP-360
$ -
Postage : $0.00
Public Broadcasting Broadcast amplifier series MP Series Constant Voltage Integrated Amplifier
Stock:
0
Swan MP series high-quality broadcast dedicated constant-voltage combined power amplifiers have designed 4 models with different powers according to different usage conditions: MP-60, MP-120, MP-240, MP-360. MP series power amplifiers are high-performance, high-stability, and high-reliability first-class products carefully developed by using technology and craftsmanship, making the sound clearer and more transparent, sound quality comparable to HiFi products, sufficient output power, and wider frequency response , more layered. It is widely used in hotels, buildings, squares, intelligent communities, factories, schools, airports, docks and other places to play, announce, background music, mutual communication, fire alarm, etc.
Feature of product

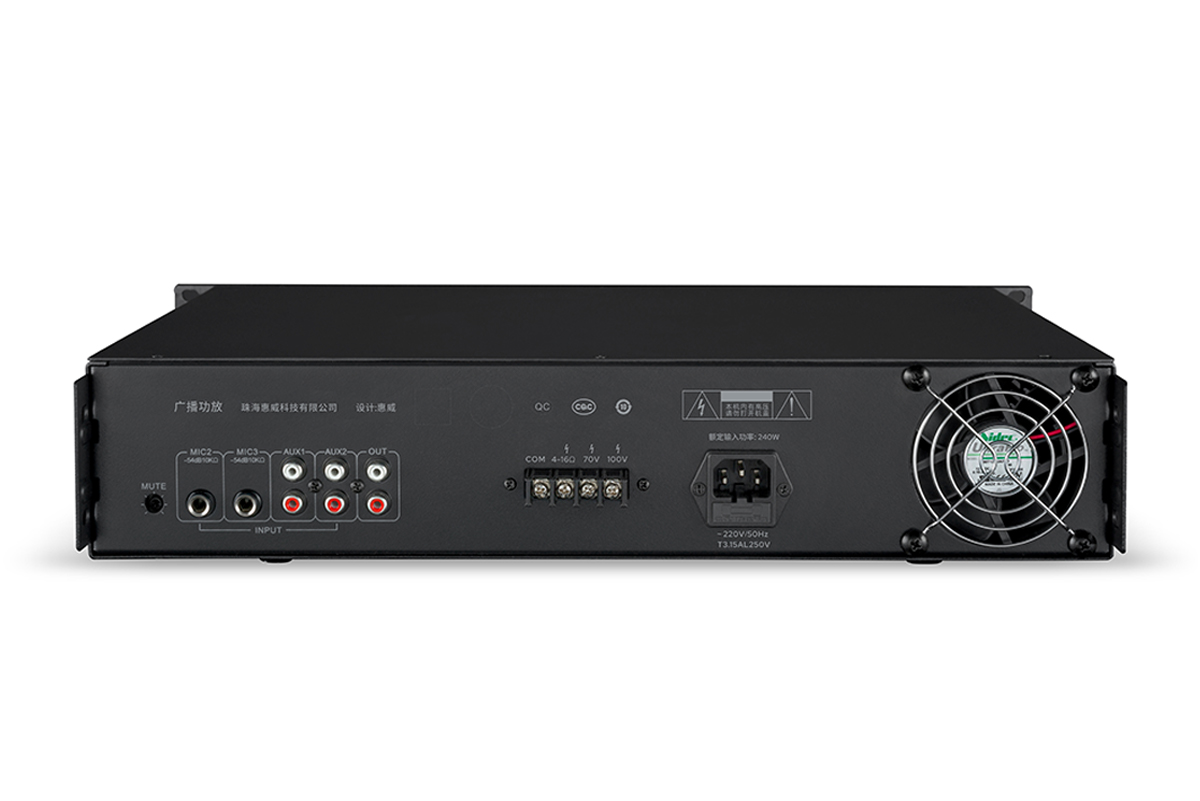

1. Provide 100V/70V constant voltage output and 4~16Ω constant resistance output;
2. 3-way MIC, 2-way AUX input;
3. MIC1 has priority mute function;
4. 1-way expansion output port, which can be used for power expansion;
5. Temperature protection, overvoltage and overload protection, short circuit protection;
Feature of product
1. Provide 100V/70V constant voltage output and 4~16Ω constant resistance output;
2. 3-way MIC, 2-way AUX input;
3. MIC1 has priority mute function;
4. 1-way expansion output port, which can be used for power expansion;
5. Temperature protection, overvoltage and overload protection, short circuit protection;
Technical parameter
MP-60
MP-120
MP-240
MP-360
Rated
power
60W
120W
240W
360W
Power
consumption
90W
180W
360W
540W
Input sensitivity
AUX 250mV（unbalance）
AUX 250mV（unbalance)
AUX 250mV（unbalance)
AUX 250mV（unbalance)
MlC5mV（unbalance）
MlC5mV（unbalance）
MlC5mV（unbalance）
MlC5mV（unbalance）
Volume
adjust
BASS:±10dB
TREBLE:±10dB
BASS:±10dB
TREBlE:±10dB
BASS:±10dB
TREBLE:±10dB
BASS:±10dB
TREBlE:±10dB
Linear
Distortion
<1% (100% power)
<1% (100% power)
<1% (100% power)
<1% (100% power)
SNR
LINE>85dB
MIC>72dB
LINE>85d8
MlC>72dB
UNE>85dB
MIC>72dB
LINE>85dB
MIC>72dB
Priority
MIC priority
MIC priority
MIC priority
MIC priority
Frequence
response
70Hz-18KHz (±3dB)
70H2-18KHZ (±3dB)
70Hz-18KHz (±3dB)
70Hz-18KHz
(±3dB)
Output
regulation
<3dB
<3dB
<3dB
<3dB
Auxiliary
output
Unbalance 0.775V
Unbalance 0.775V
Unbalance 0.775V
Unbalance 0.775V
Protect
Overload protection, short circuit
detection protection, over temperature protection
Overload protection, short circuit
detection protection, over temperature protection
Overload protection, short circuit
detection protection, over temperature protection
Overload protection, short
circuit detection protection, over temperature protection
Power
supply
AC220V+10%
50Hz-60Hz
AC220V+10%
50Hz-60Hz
AC220V±10%
50Hz-60Hz
AC220V±10%
50Hz-60Hz
N.W
8.2 Kg
9.6 Kg
12.2 Kg
13.9 Kg
Dimensions
484X359X88 mm
484X359X88 mm
484X359X88 mm
484X359X88 mm
