· Product Features
1. Swan Pro series sound source conference speakers are developed for conference sound reinforcement applications, using Swan wide horizontal pointing treble, array type line sound source speaker combination, with built-in professional electro-acoustic technology optimized frequency division network. The sound reflection is small, the sound reproduction is clear, and the dynamics are strong;
2. High power, high sensitivity, wide frequency range, with uniform horizontal coverage, strong vertical directivity, small attenuation of sound energy in the radiation area, etc., and can be adapted to different sound reinforcement fields;
3. Multi-speaker array design, especially suitable for long-distance sound radiation, can provide very good vertical coverage directivity, and can achieve ideal radiation sound field and listening effect for some medium and large public places;
4. Small size, lighter, flexible and diverse installation methods, suitable for sound reinforcement in conference rooms, multi-function halls, school auditoriums, banquet halls, churches, gymnasiums and other places.
· Product description
Both Internal and external
The Pro series cabinet has a smooth line design, and the exterior is made of high-strength wear-resistant metal paint grille, black particle paint and high-quality plate, which is not easy to rust, so it can better protect the internal unit. The Pro series speakers have wide horizontal pointing and high-pitched, array-type line sound source speaker combination, with built-in professional electro-acoustic technology optimized frequency division network, so that the vertical ceiling and ground sound reflection is small, the sound reproduction is clear, and the dynamics are strong.
Refinement comes first

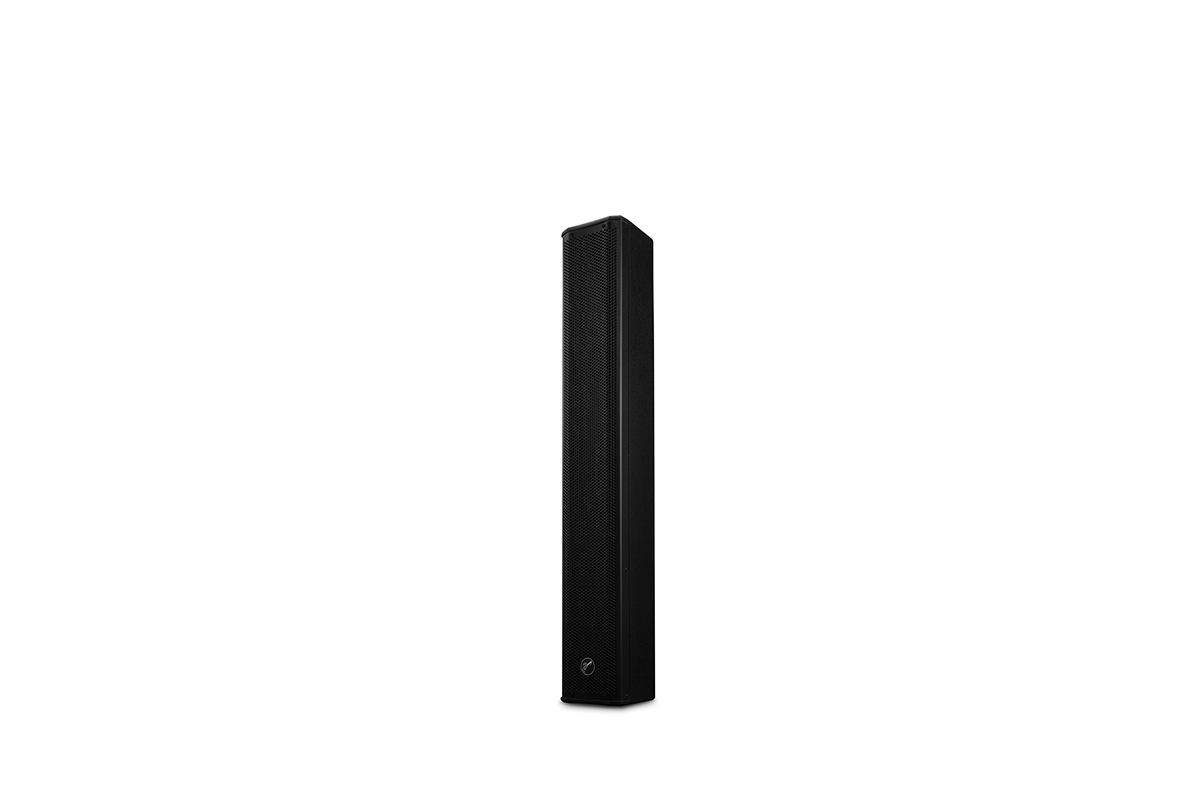

The Pro-406/Pro-408 are slim and feature just the right amount of variable sound coverage – 120° horizontal and 30° vertical to deliver true dynamic range and high-precision sound for easy listening. The slender box is concealed, and the atmospheric black design fits well with the overall decoration.
Reproduce quality sound
Accurate sound is the biggest highlight of Pro-406/Pro-408. The speaker's wide frequency range, clear and uniform language, and strong vertical directivity allow the effective range of the sound to reach an ideal distance. It sounds clean, transparent and magnetic. . With the powerful Pro-515S, it effectively improves the dynamic sound effect of music playback, adapts to different sound reinforcement fields, thereby improving the overall sound effect.
The multi-speaker array design of the Pro series speakers is especially suitable for long-distance sound radiation, providing high-quality vertical coverage directivity, and can achieve ideal radiation sound field and listening effects for some medium and large public places. The reproduced tone conveys more energy and depth, and the sound range is wider, deeper and more three-dimensional.
Rich sense of hearing
Pro series speakers can adjust the angle freely to meet the installation and placement requirements of different venues, and are ideal for multi-functional installation applications. The speaker can be hung alone or with an adjustable angle wall-mounted buckle, which is flexible and convenient while effectively suppressing the sound diffraction of the system. The humanized design of the wall-mounted buckle makes the speaker more convenient and quicker to use in the actual scene, the projection distance is longer, and the mellow human voice is accurately restored. The installation methods of the Pro series speakers are flexible and diverse, and support any combination of installations. In different occasions, the surround sound effect of the live sound field is taken into account, allowing participants to enjoy a rich sense of hearing and meeting the matching needs of conference centers, multi-function halls, banquet halls, gymnasiums and stage performances.
· Function indication
· Application
Single hanging scene display

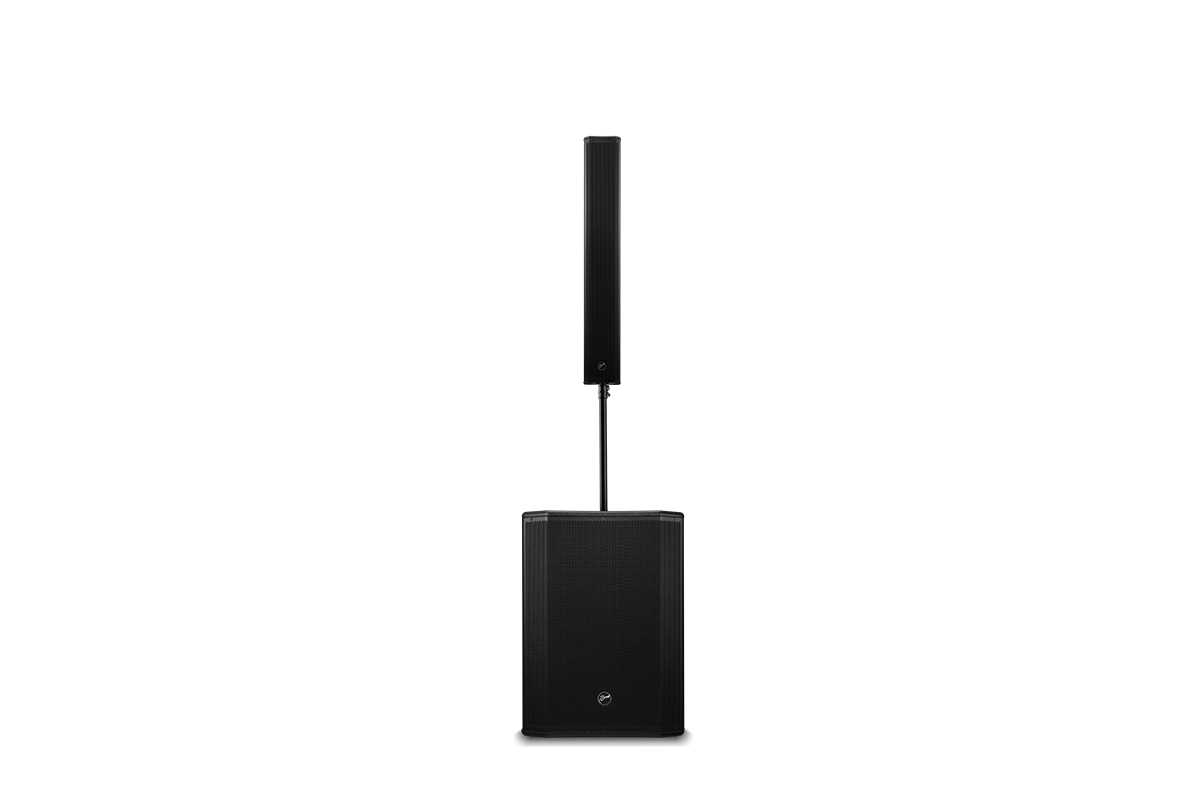

Combined installation scene display
· Curves
· Parameters
Speaker model
Pro-406
Pro-408

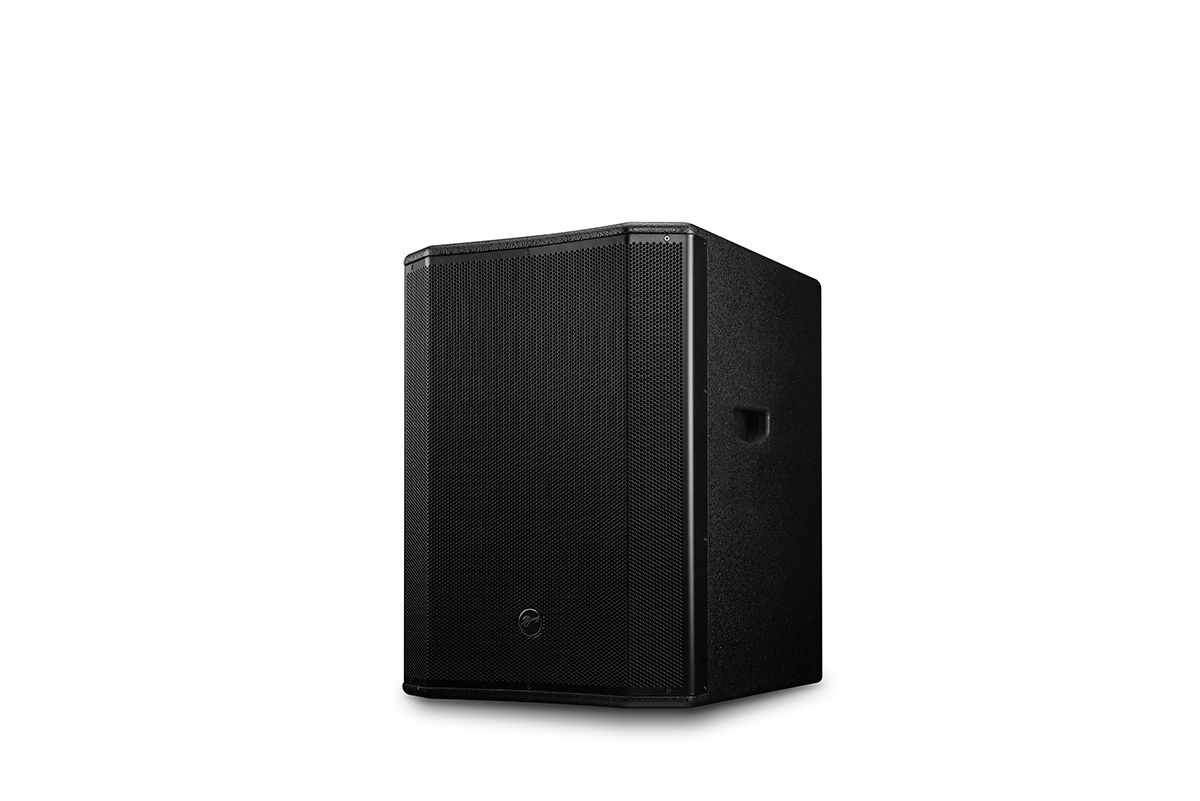

Pro-515S
Frequency Range
65Hz-18KHz
60Hz-18KHz
40Hz-300Hz
Rated power
120W(continuous)/480W(peak)
180W (continuous)/720W (peak)
450W(continuous)/1800W(peak)
Sensitivity
94db(lm/lW)
97db (lm/lW)
98db(lm/lW)
Maximum sound pressure level
115dB(continuous)/121dB(peak)
120dB (continuous)/126dB (peak)
125dB(continuous)/131
dB(peak)
Rated impedance
8Ω
8Ω
8Ω
Coverage angle
120° x30°
120°x30°
/
Woofer
4*4,,(25.5mm voice coil)
6*4,,(25.5mm voice coil)
1T5”(75.5nnnn vocie coil)
Tweeter
l*25.5mm compressed driver
1*25.5 mm compressed driver
/
Install
Hang/insert
Hang/insert
Floor-standing
Size(W*D*H)
135x142x759.5mm
135x142x1132mm
510x565x700mm
Net weight
8.4kg
12.7kg
37.3kg
