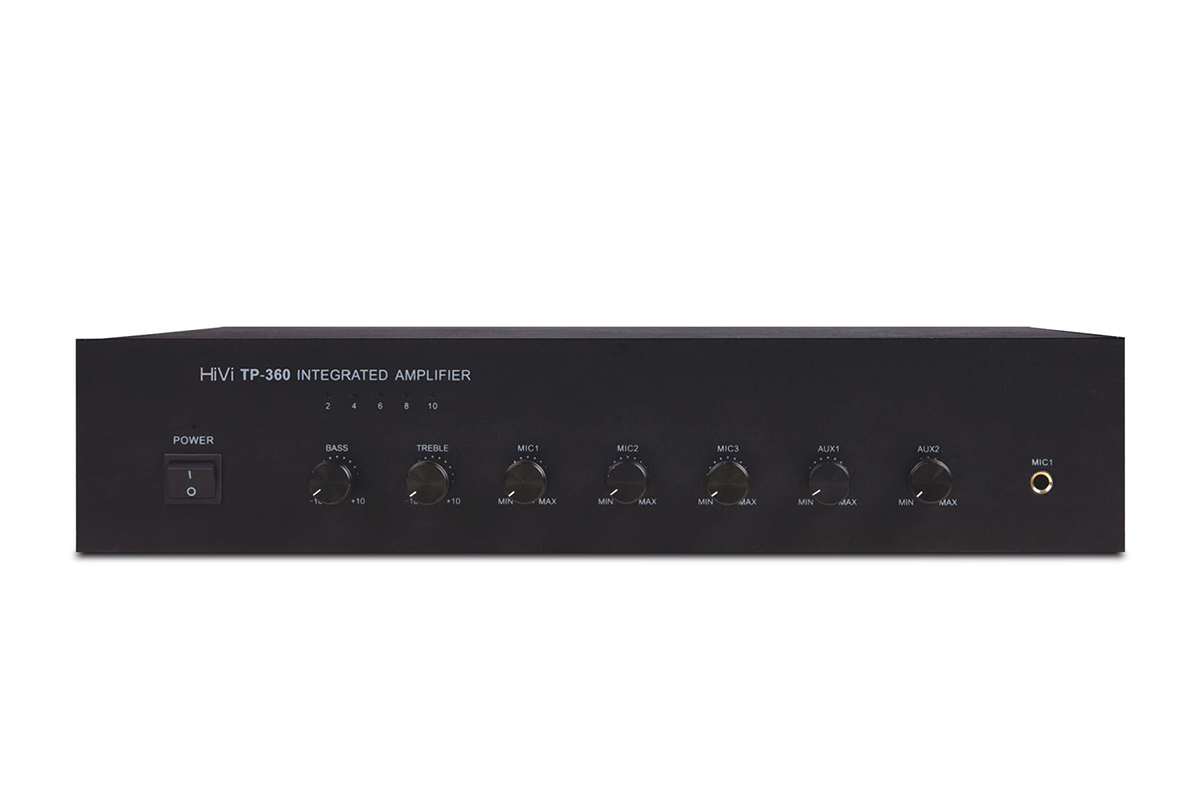

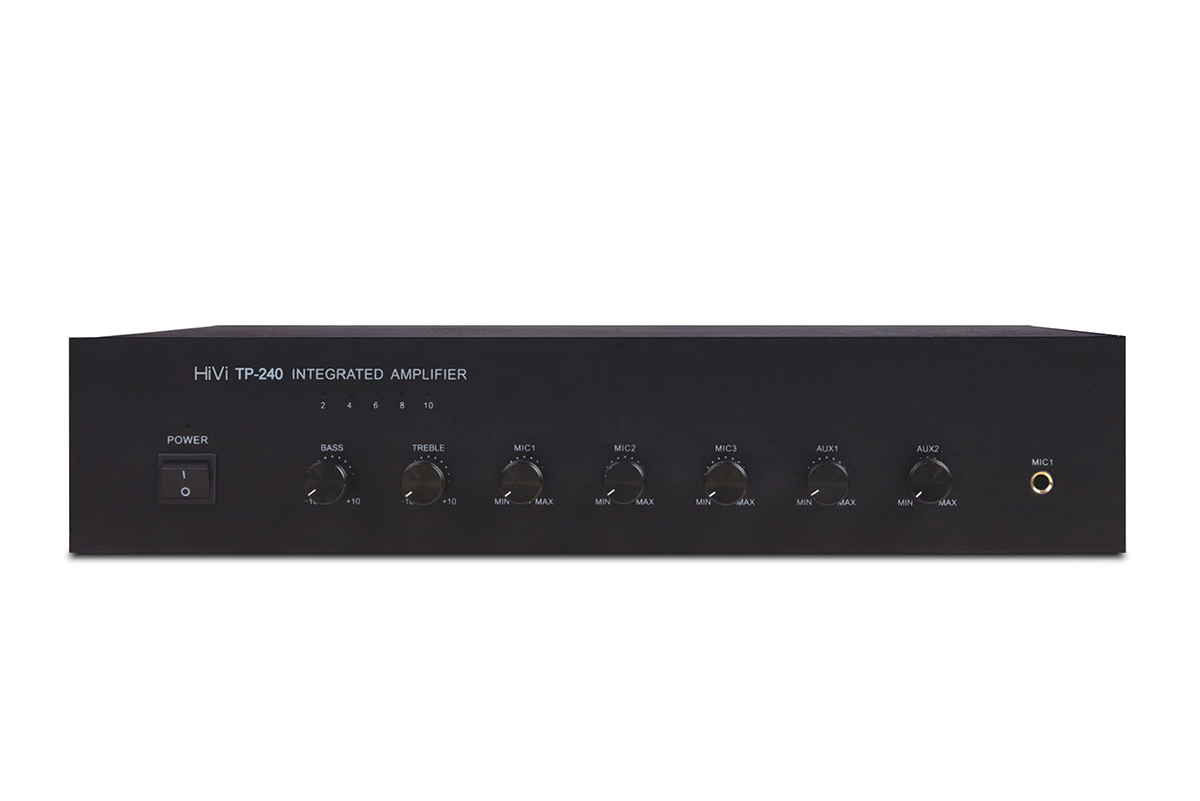

Swan TP series integrated broadcast amplifier TP-60/TP-120/TP-240/TP-360
$ -
Postage : $0.00
Public Broadcasting Broadcast amplifier series TP Series Constant Voltage Integrated Amplifier
Stock:
0
Feature of product
1. Provide 100V/70V constant voltage output and 4-16Ω constant resistance output;
2. 3-way MIC, 2-way AUX input, MIC1 has priority mute function;
3. 1-way expansion output port, which can be used for power expansion;
4. Temperature protection, overvoltage and overload protection, short circuit protection
Automatic mute function
The microphone input MIC1 has a priority function (automatic mute), the signal input from this channel will automatically suppress the input signal of other channels, and can be adjusted by the “MUTE” mute amplitude adjustment knob on the rear panel, and the adjustment range is 0~30dB.
1. Provide 100V/70V constant voltage output and 4-16Ω constant resistance output;
2. 3-way MIC, 2-way AUX input, MIC1 has priority mute function;
3. 1-way expansion output port, which can be used for power expansion;
4. Temperature protection, overvoltage and overload protection, short circuit protection
Automatic mute function
The microphone input MIC1 has a priority function (automatic mute), the signal input from this channel will automatically suppress the input signal of other channels, and can be adjusted by the “MUTE” mute amplitude adjustment knob on the rear panel, and the adjustment range is 0~30dB.
Technical parameter
Model
TP-60
TP-120
TP-240
TP-360
Rated
power
60W
120W
240W
360W
Power
consumption
120W
240W
480W
720W
Input
sensitivity
AUX
250mV（unbalance） MIC 5mV（unbalance）
Volume
adjustment knob
BASS:
±10dB TREBLE: ±10dB
Linear
Distortion
<1%(100% power)
SNR
LINE>65dB
MIC>65dB
Priority
MIC1 Priority
Frequency
response
70Hz-18KHz(±3dB)
Output
regulation
<3dB
Auxiliary
output
Unbalance 0.775V
Protect
Overload protection'
short circuit protection, over temperature protection
Power
supply
AC
220V±10% 50Hz~60Hz
Body size
(mm)
307x440x88mm
