| Product Description | |||
|

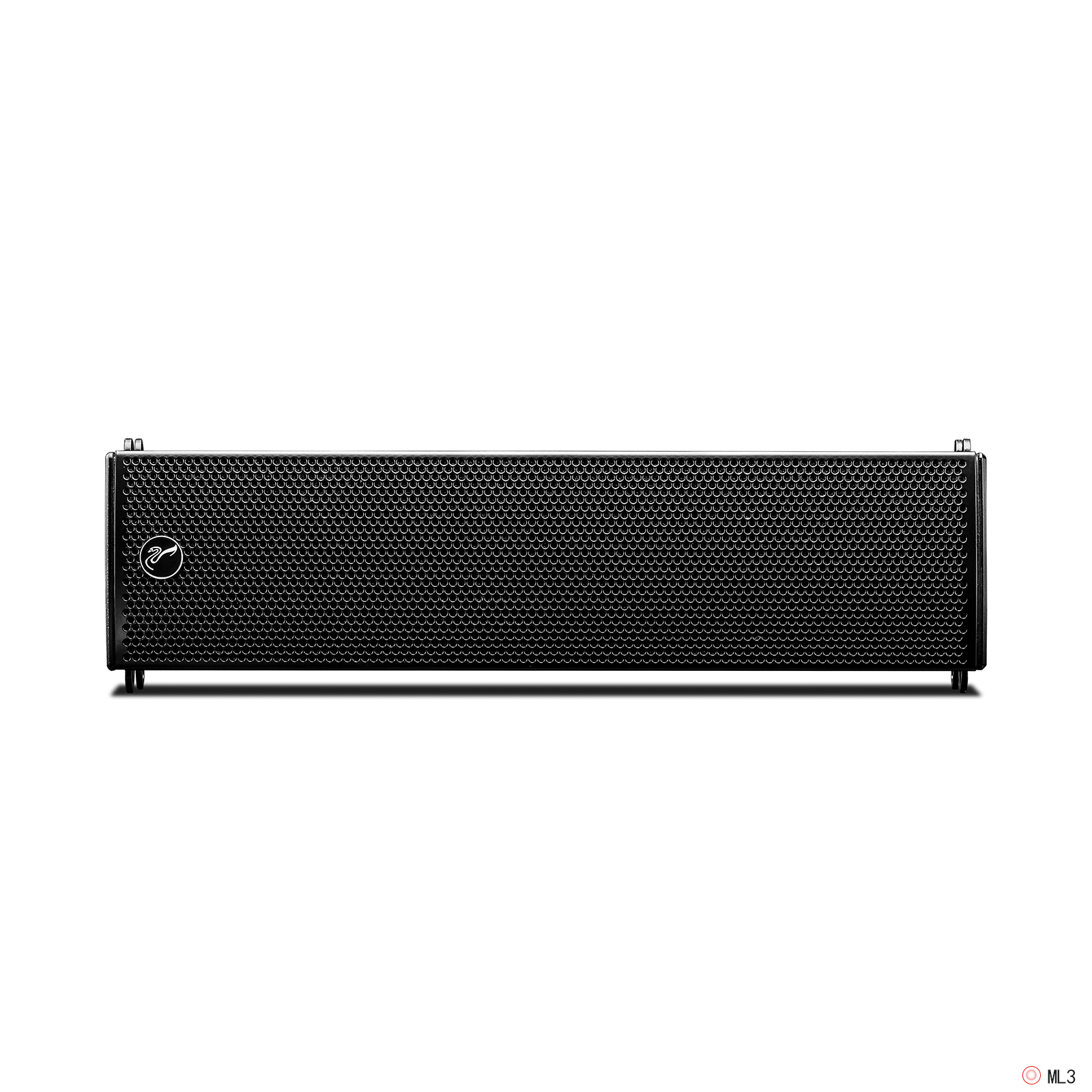

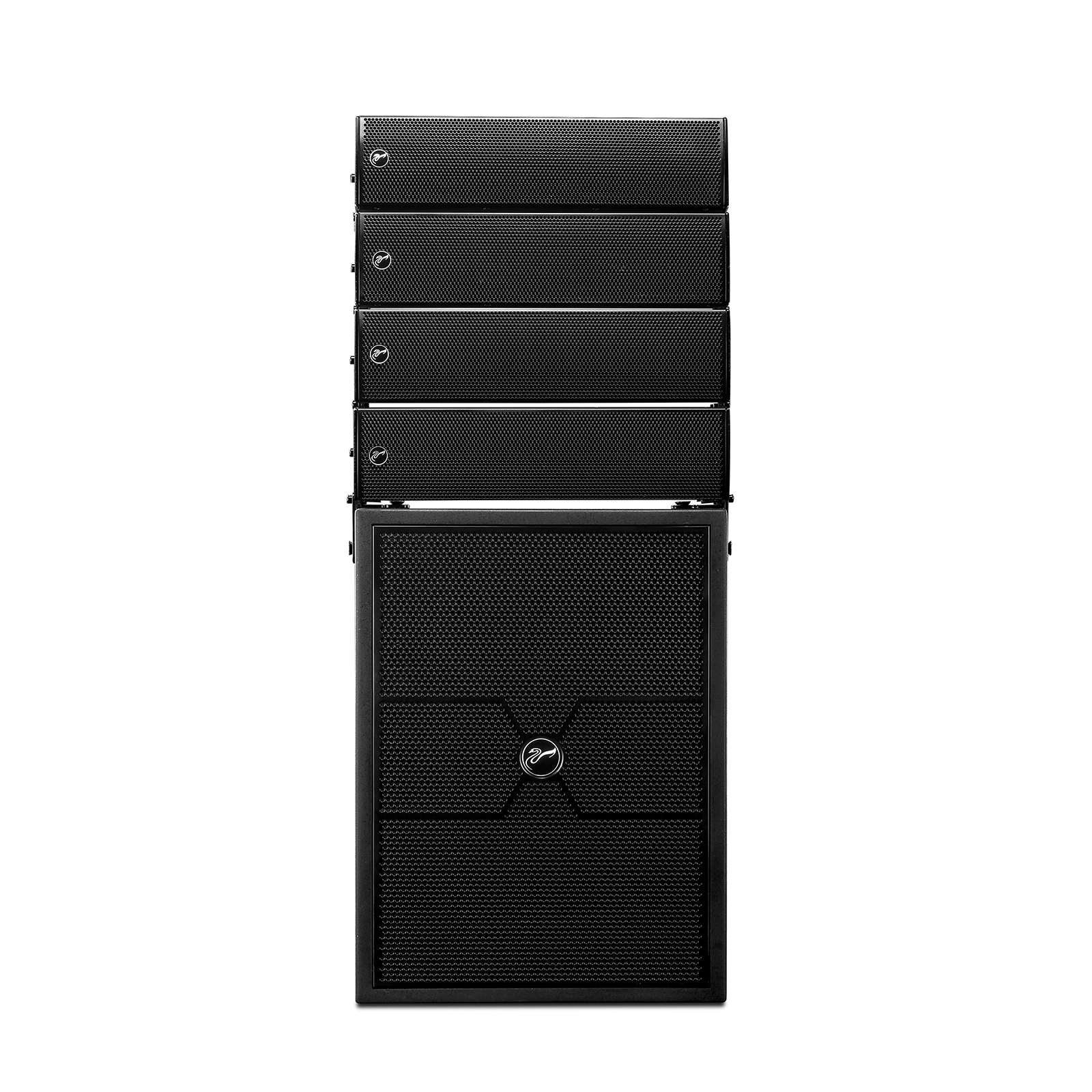

ML3 is a professional 3-inch array full-range speaker designed for professional sound reinforcement occasions such as conferences, multi-purpose halls and light bars. It adopts Swans professional 3-inch array-type line sound source mid-high-pitched combination, with built-in professional electro-acoustic technology optimized crossover network, the sound is clear and the dynamics are powerful. The speaker is equipped with a patented hanging device, which can easily and flexibly form a horizontal or vertical array. With the ML3S ultra-low frequency speakers, it can be combined into a professional three-way sound reinforcement system, and the low frequency is more powerful. The speaker is equipped with a patented hanging device, which can easily and flexibly form a horizontal or vertical array. |
|||
| Product Parameters | |||
| Model | ML3 | ML3S | ML25 |
| Frequency range: | 180Hz-20KHz | 60Hz-250Hz |
70Hz~16KHz |
| Rated input power: |
60W(continual)
120W(program signa)
240W(continual)
|
250W(continual)
500W(program signal)
1000W(peak)
|
80W(continual) 160W(program signal) 320W(peak) |
| Sensitivity: | 90dB(1W/1M) | 97dB(1W/1m) | 92dB(1w/1m) |
| Max SPL: |
108dB(continual)
114dB(peak)
|
121dB(continual)
127dB(peak)
|
111dB(continual) 117dB(peak) |
| Rated impedance: | 6Ω | 6Ω | 8Ω |
| Coverage angle: | 90d°x20° | Full directive | 60°×60° |
| Woofer: | 3x3" | 1×12"(75mm voice coil) | 2×5.25″ (25mm voice coil) |
| Tweeter: | 3" cone |
|
1×3″(cone) |
| Input connect: | 1x Speakon NL4 | 2x Speakon NL4 | red and black wire clip |
| Size(W×H×D): | 400×100×112mm | 398×532×472mm | 194×402×180mm |
| N.W.(±10%): | 2.7Kg | 28Kg | 6.5Kg |
| Product size | |||
|

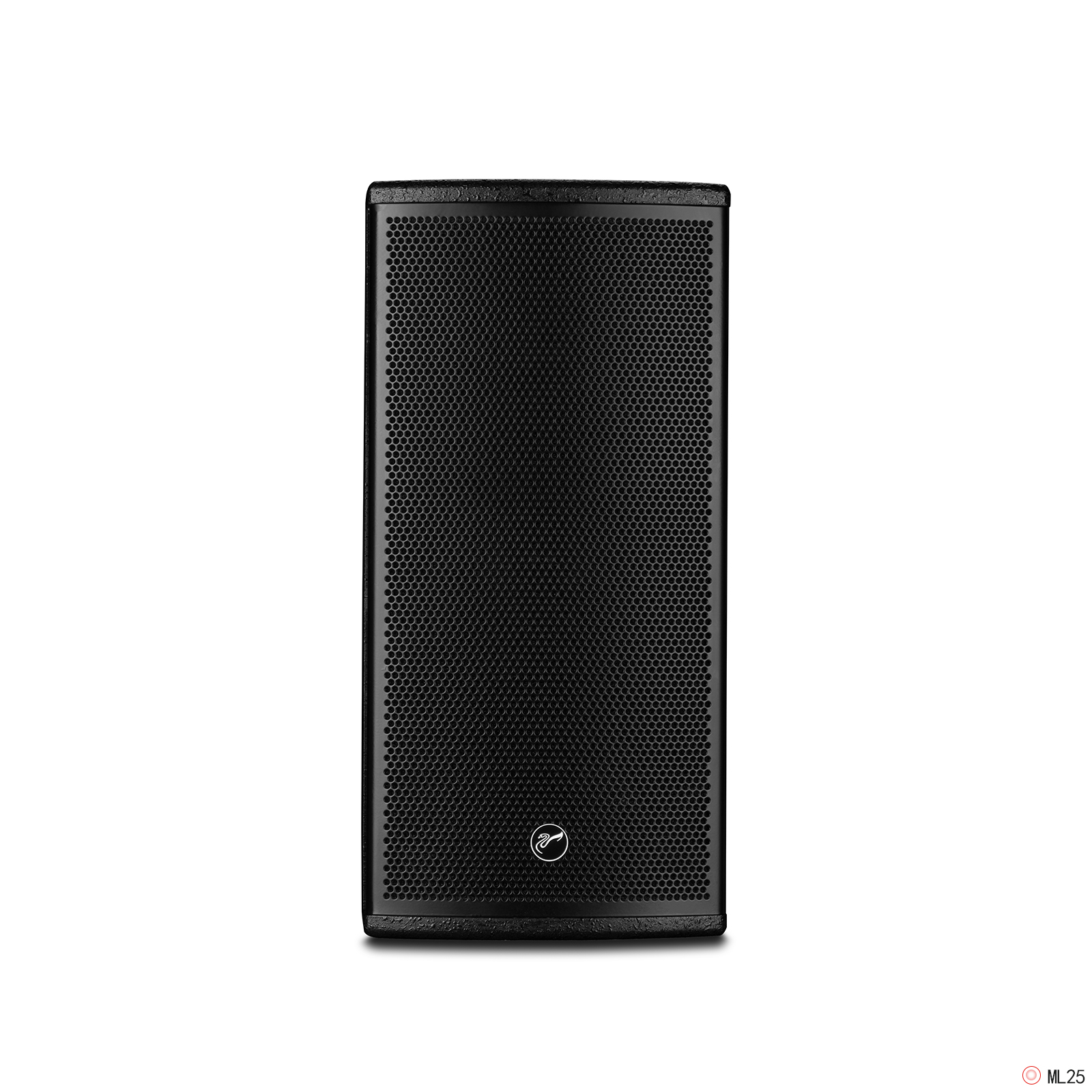

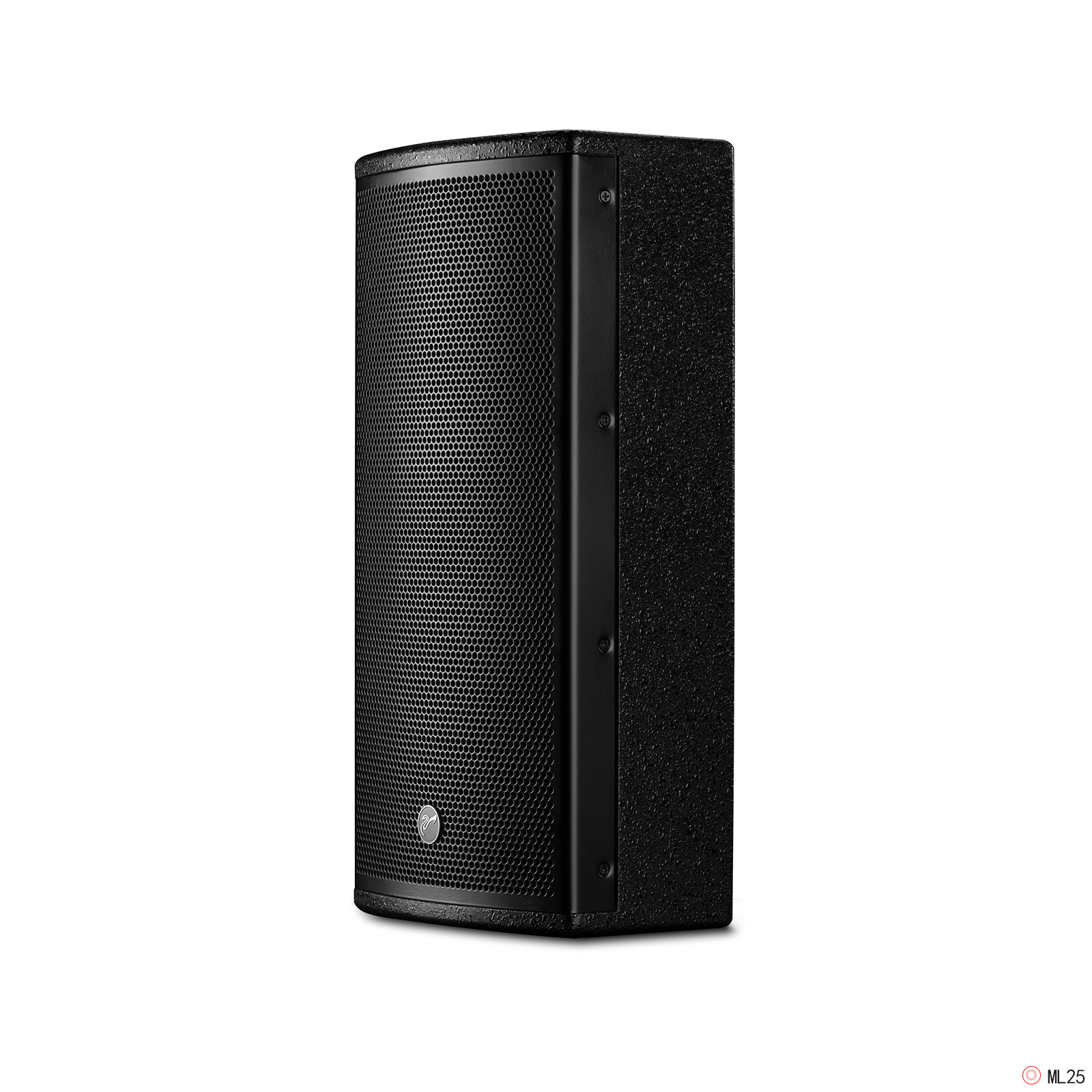

ML25
|
|||
