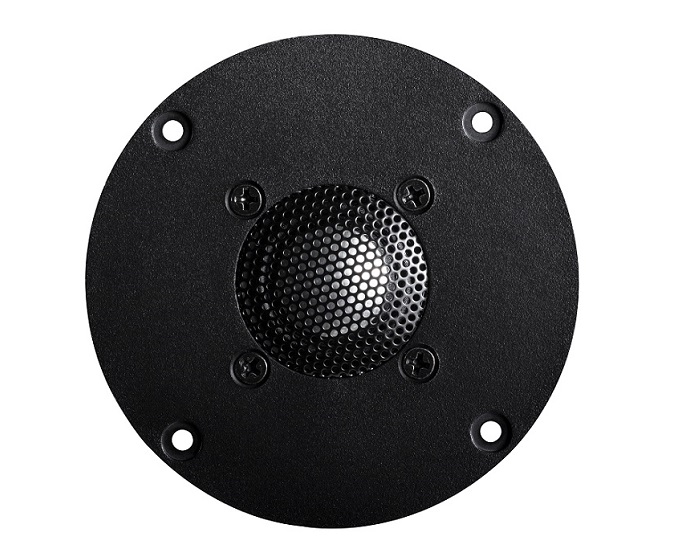

Swan TF26A silk tweeter speaker
$ -
Postage : $0.00
Speaker Driver Dome tweeter
Design features:
Treble is the soul of a system, and its timbre, transient, texture, dynamic compression, distortion and other factors play a decisive role in TF26A.
Based on the above factors,Swan launched a new 26-core unit -TF26A. Sweet timbre, high analytical power is to bring you beyond imagination performance.
TF26A adopts metal aluminum top shape diaphragm, with flat frequency response, high frequency up to 20kHz, high definition, good transient response, sweet and natural timbre. High temperature resistant aluminum alloy skeleton, with high temperature resistant copper clad aluminum wire and professional grade American magnetic liquid cooling, can withstand high power, and output high pressure level, high performance ferrite, high magnetic flux density, sensitivity up to 92dB.
Treble is the soul of a system, and its timbre, transient, texture, dynamic compression, distortion and other factors play a decisive role in TF26A.
Based on the above factors,Swan launched a new 26-core unit -TF26A. Sweet timbre, high analytical power is to bring you beyond imagination performance.
TF26A adopts metal aluminum top shape diaphragm, with flat frequency response, high frequency up to 20kHz, high definition, good transient response, sweet and natural timbre. High temperature resistant aluminum alloy skeleton, with high temperature resistant copper clad aluminum wire and professional grade American magnetic liquid cooling, can withstand high power, and output high pressure level, high performance ferrite, high magnetic flux density, sensitivity up to 92dB.
| Technical parameters | |||
| Parameter name | Symbol | Value | Unit |
| Basic application parameters | |||
| Rated impedance | Z | 6 | Ω |
| Resonant frequency | Fs | 600 | Hz |
| Rated power | Pnom | 15 | W |
| Maximum power | Pmax | 230 | W |
| Sensitivity (2.83V/1m) | E | 90 | dB |
| Weight | W | 0.64 | kg |
| Voice coil | |||
| Voice coil diameter | ∅ | 28 | mm |
| DC resistance | Re | 5.1 | Ω |
| Voice coil width | H | 13 | mm |
| Voice coil wire | High temperature resistant copper clad aluminum wire | ||
| Voice coil frame | High temperature resistant Aluminum | ||
| Magnetic circuit | |||
| Magnetic circuit type | Double magnetic circuit | ||
| Magnet material |
High
performance ferrite
parameter
|
||
| Recommended crossover point | >2000Hz | ||
