- 400-0909-199

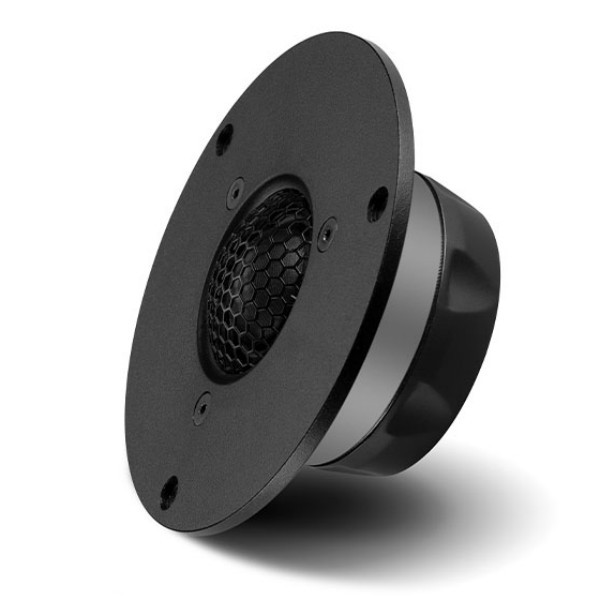

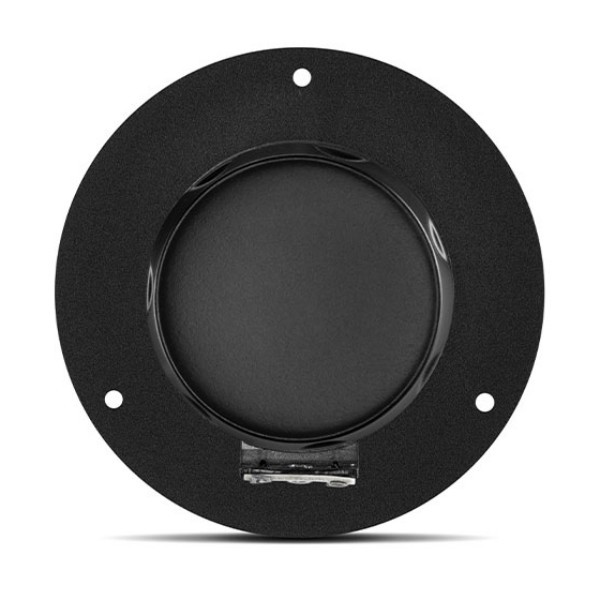

Swan Q3B Hi-end tweeter
$ 74.00
Postage : $0.00
Speaker Driver Dome tweeter
Stock:
0
Features:
Using 28mm German soft dome sound film, special damping layer treatment, the frequency response is broad and straight, and the sound performance is more transparent and clear. High-performance ferrite dual magnetic circuit design, linear uniform magnetic field, harmonic distortion can be effectively reduced. Lower distortion and better prevention of dynamic compression, improved resonant cavity design, high-impedance sound-absorbing materials. Professional liquid magnetic cooling technology, high temperature resistant aluminum alloy frame and copper clad aluminum wire voice coil, with greater power tolerance. To protect the precious treble diaphragm, a protective net is added to the panel to prevent the diaphragm from being deformed and damaged by external forces. Adhering to HiVi' s consistent Hi-end concept, the sound is more natural and smooth, and analytical performance are more layered, and the details are rich without unpleasant characteristics.
|
Swan
Q3B Parameter
|
|||
| Parameters | Mark | Value | Unit |
| Basic application parameters | |||
| Rated impedance | Z | 6 | Ω |
| Resonant frequency | Fs | 700 | Hz |
| Rated power | Pnom | 15 | W |
| Maximum power | Pmax | 30 | W |
| Sensitivity (2.83V/1m) | E | 90 | dB |
| Weight | W | 0.64 | kg |
| Voice coil | |||
| Voice coil diameter | ∅ | 28 | mm |
| DC Resistance | Re | 5.1 | Ω |
| Voice coil wire | High temperature copper clad aluminum wire | ||
| Voice coil bobbin | High temperature aluminum | ||
| Circuit | |||
| Magnetic circuit type | Dual magnetic circuit | ||
| Magnet material | High Performance Ferrite | ||
| Parameters | |||
| Recommended crossover point | >2000 Hz | ||
|
Swan
Q3B Parameter
|
|||
| Parameters | Mark | Value | Unit |
| Basic application parameters | |||
| Rated impedance | Z | 6 | Ω |
| Resonant frequency | Fs | 700 | Hz |
| Rated power | Pnom | 15 | W |
| Maximum power | Pmax | 30 | W |
| Sensitivity (2.83V/1m) | E | 90 | dB |
| Weight | W | 0.64 | kg |
| Voice coil | |||
| Voice coil diameter | ∅ | 28 | mm |
| DC Resistance | Re | 5.1 | Ω |
| Voice coil wire | High temperature copper clad aluminum wire | ||
| Voice coil bobbin | High temperature aluminum | ||
| Circuit | |||
| Magnetic circuit type | Dual magnetic circuit | ||
| Magnet material | High Performance Ferrite | ||
| Parameters | |||
| Recommended crossover point | >2000 Hz | ||
