| HCS200CCU Dual Backup Wired Conference Hosts
· Product Features
1、Simple operation, plug and play without setting; built-in anti-whistle function, one-key suppression
2、Support all-channel phantom power supply, one key to turn on and off
3、With priority function, MIC1, MIC2>MIC3~MIC8
4、With signal level indicator, clear and clear
5、High-fidelity sound quality circuit design, long pickup distance
6、Support hand-in-hand conference and phantom microphone mode, you can choose one mode or dual backup to achieve both flexibility and reliability
· Technical Parameters
Model | HCS200CCU |
Power supply | DC 12V 2A |
Frequency response | 70Hz-18KHz±3dB |
THD | ≦1% |
SNR | ≧70dB(A weight) |
Phantom power | DC 48V(self-locking switch) |
N.W. | 2.2KG |
Host dimension | 440×220×43.9mm |
Priority | MICI\MIC2>MIC3~MIC8 |
Working temperature | Indoor,0℃~45℃ |
Storage temperature | Indoor,-20℃~50℃ |
· Product Features
1、8-channel microphone input, 1 line input, 1 line output.
2、The host has a 48V phantom power switch key, you can choose 48V phantom power supply
3、Built-in anti-howling function, one-key suppression of howling, supports all-channel phantom power supply
4、Each channel has an independent volume control, and has a priority mode, when the priority channel speaks, the level of other channels is automatically attenuated
5、High-fidelity sound quality circuit design, restore the essence of sound with signal level indication, visual status
6、The main unit has two sets of audio mixing outputs for sound reinforcement systems or other equipment
· Technical Parameters
Model | HCS200MCU |
Power supply | DC 12V 2A |
Frequency response | 70Hz-18KHz |
THD | ≦1% |
SNR | ≧70dB |
Phantom power | DC +48V |
N.W. | 2.0KG |
Host dimension | 440×220×43.9mm |
Priority | MICI\MIC2>MIC3~MIC8 |
Working temperature | Indoor,0℃~45℃ |
Storage temperature | Indoor,-20℃~50℃ |

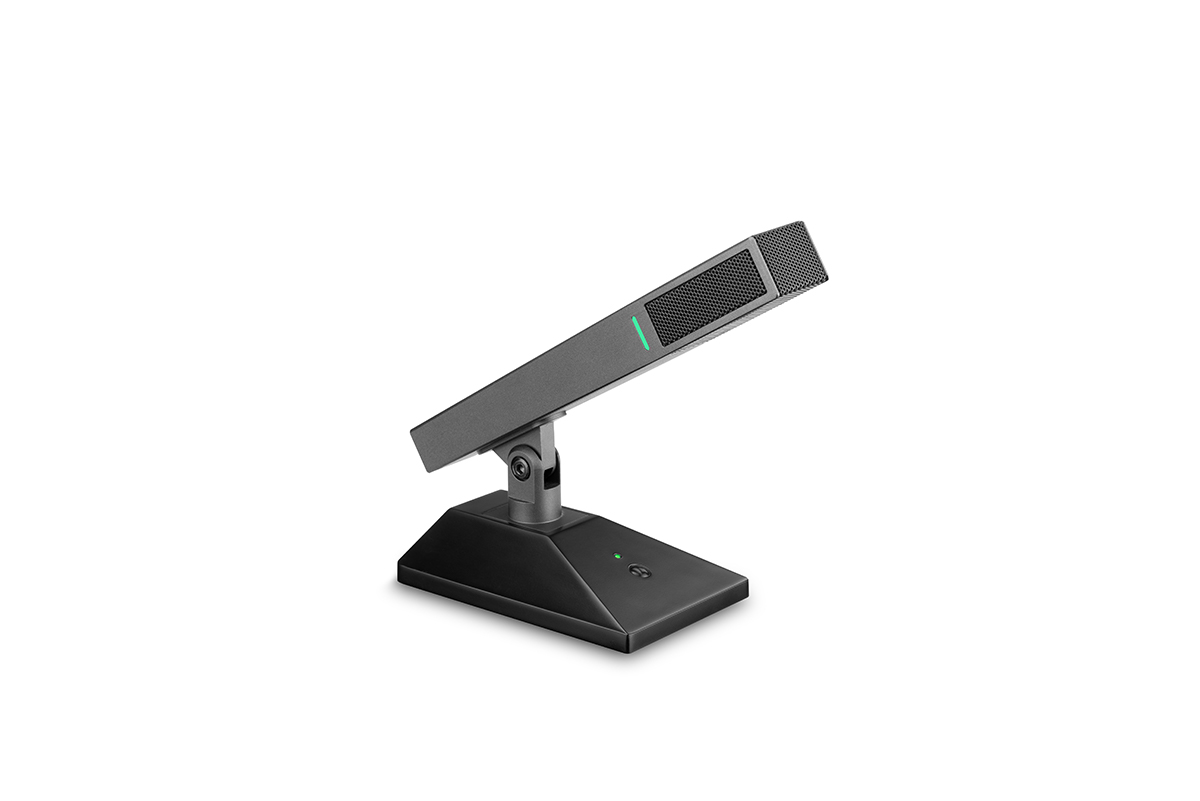

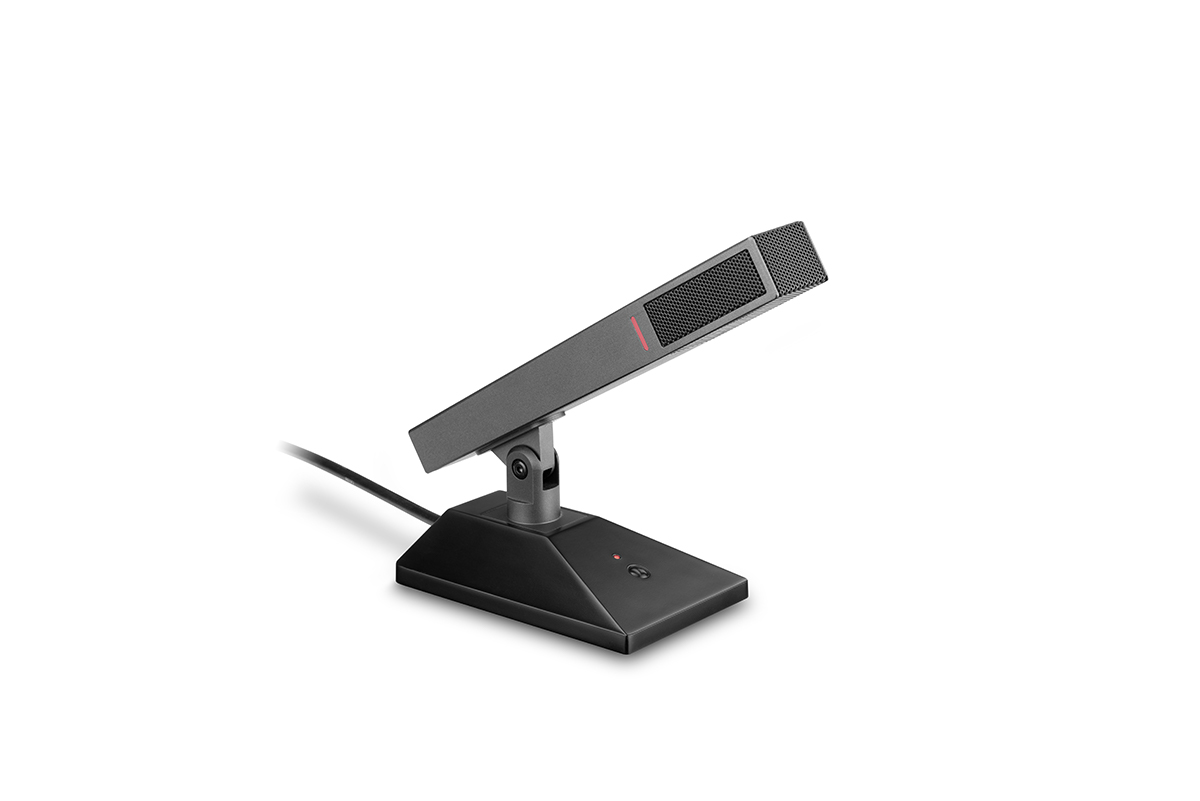

| HCS200P Phantom Wired Conference Speaking Unit
· Product Features
1、All metal base + square column microphone design, elegant appearance, calm atmosphere
2、Condenser microphone, super cardioid polar pattern, can clearly capture sound details
3、Built-in windproof cotton, optimized sound cavity structure design, better sound quality
4、The microphone pitch angle can be adjusted arbitrarily to ensure the best sound pickup effect
5、Black all-metal base with fine low-gloss and matte finish
6、The base is sturdy and thick, and is equipped with shock-proof insulating rubber pads, which can effectively reduce frictional vibration and mechanical noise on the installation surface
7、The back of the base is a 3-pin electroplated nickel XLR male socket, which is used as an audio signal output terminal
8、The microphone works with 48V phantom power supply
9、There is a microphone self-locking switch button, press the switch button, the microphone red indicator light is on, it is on, and the microphone needs to be pressed again to turn off the switch
10、Suitable for various occasions such as conferences, speeches, teaching, etc.
11、Works directly with audio processors, mixers or mixers
Note: HCS200D is only applicable to Swans HCS1500 series mainframe, HCS3000 series mainframe
· Technical Parameters
Model | HCS200P/HCS200D |
Elevation range | ≦55(normal 35) |
Microphone sensitivity | -36dB±2dB |
Pickup distance | 100-700mm |
Working temperature | Indoor,0℃~45℃ |
Storage temperature | Indoor,-20℃~50℃ |
