Swan HCS1000 full digital wireless conference system
$ -
Postage : $0.00
Model
Conference system Full-Digital Wired Conference System
Stock: 0

HCS1000 All-digital wireless conference system

HCS1000CCU All-digital wireless conference discussion host
HCS1000D Desktop unit
HCS1000H Wireless handheld speaker

1. Adopt pi/4 DQPSK digital modulation and demodulation technology, 16bit/48kHz PCM format audio codec, 2ms extremely low voice delay, meet the requirements of modern conference sound quality
2The wireless audio has an ID encryption code, and the audio without the ID encryption code of the system is automatically muted to prevent the interference of other wireless systems;
3User can freely choose idle frequency communication among 16 frequency points
4he wireless indoor barrier-free coverage radius of the system can reach up to 80 meters, and the partition wall is 40 meters, which expands the adaptability to the meeting place
5Equipped with 3000mAh lithium battery, and full battery working time ≥ 10h. One charge can meet the requirements of multi Day meetings and reduce the equipment management time
6The desktpye conference terminal adopts 128*64 OLED display, any visual angle is clear.;
7The handheld conference terminal adopts 2 AA dry batteries, and the working time is ≥10H when fully charged, which can meet the requirements of the conference;
8The product has beautiful appearance, no need for complicated wiring construction, graphical human-machine interface, CD sound quality, and clear voice;

· System connection diagram


HCS1000CCU All-digital wireless conference discussion host

HCS1000CCU The all-digital wireless conference host is based on a modular design, including a wireless receiving module, an audio processing module, an LCD display module, an electronic knob man-machine operation, a volume adjustment module, and a power processing module to achieve corresponding functions.

·Product Features

1. Adopt PI/4 DQPSK digital modulation and demodulation technology;
2. 16bit48kHz PCM format audio code;
3. 2ms extremely low voice dela ;
4. Has an ID code, and the audio without the ID code of the system is automatically muted;
5. 16 frequency points;
6. Communication distance 80 meters (indoor barrier-free coverage radius);
7. No need for frequency resource planning, multiple wireless systems can coexist and use;
8. Host wireless reception supports P2P mode and true diversity mode;
9.
With SIR infrared communication function, the unit parameters are set and adjusted by the host;

· product Function

1. Support 2/4/6/8 units to speak;
2. 256*64 LCD graphic dot matrix liquid crystal, which can display system information, channel parameters and other information, and provide system setting menus in traditional and simplified Chinese and English;
3. With electronic navigation knob for menu operation;
4. 1-channel wired microphone input, 1-channel stereo linear audio input;
5. 1-channel stereo recording output, 2-channel conference mixing output;
6. The volume of conference mixing output is adjustable, the volume of stereo input and recording output is adjustable, and the volume of microphone input is adjustable;
7. Set the speech volume, audio channel and wireless frequency of the conference unit through the host;
8. The receiving channel has real-time wireless communication indication, clearly indicating the wireless sending and receiving situation;

·Technical Parameters

Model HCS1000CCU
Communication Mode  pi/4DQPSK
Communication Freqiency 500-900MHz
Audio Data 16bit48KHz,PCM
Audio Frequency 20Hz-20KHz
Audio Delay 2.5MS
Audio Channels  2/4/6/8Channels
Wireless Receiving Mode P2P,Truediversitymode
Knob Knob with confirmed function
Screen 256*64dotarrayLCDdisplay
Power Supply  1A220VAC50HZ
Consumption  17.7W
Measurement(LxWxH) 428x240x65(mm)
Weight(Kg) 4.1kg
Working Environment Indoor 0°C -45°C
Storage Environment Indoor -20°C -50°C

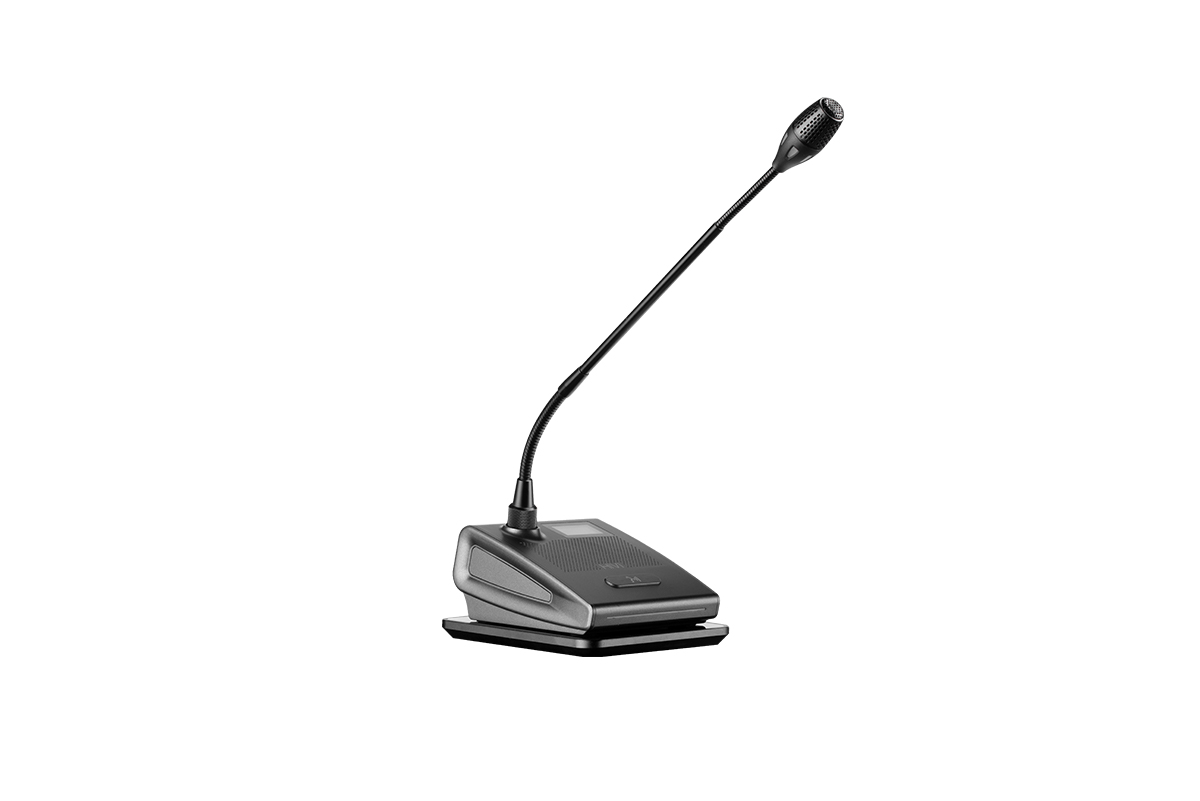

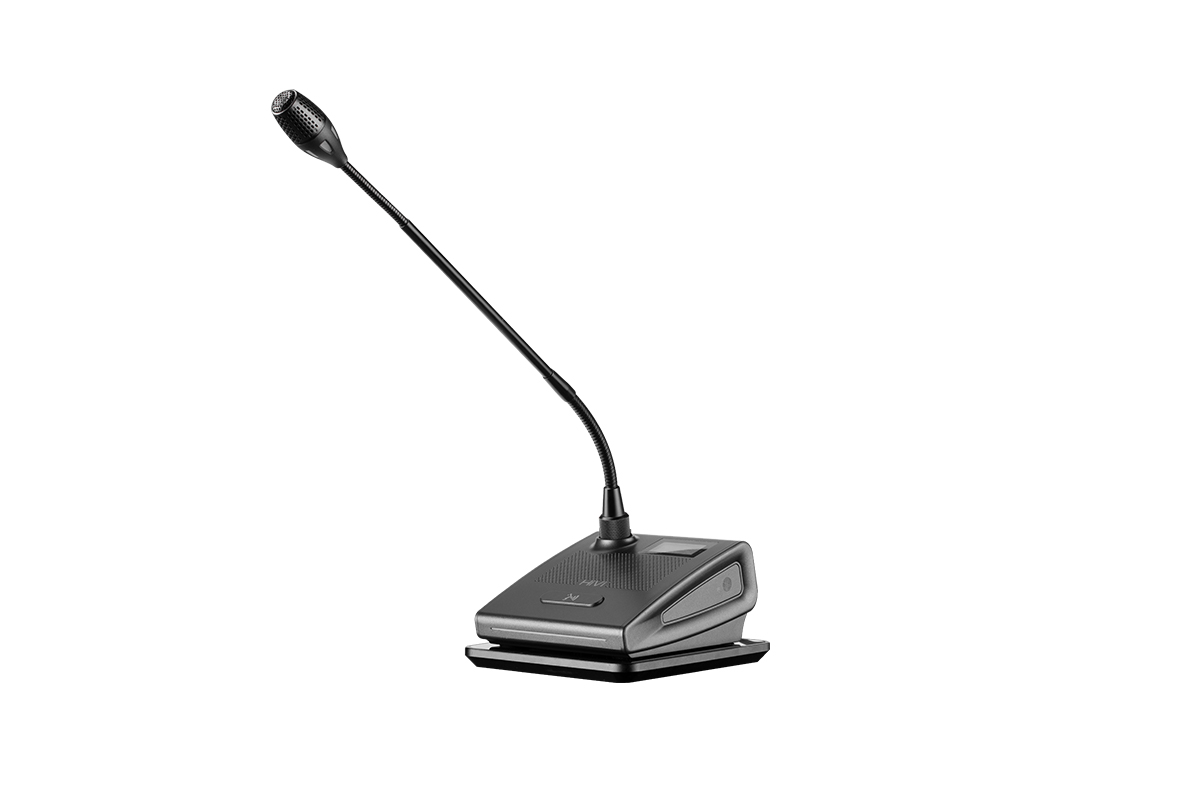

HCS1000D desktop unit



· Product Features

1. Adopt pi/4 DQPSK digital modulation and demodulation technology, 16bit/48kHz PCM format audio codec, 2ms extremely low voice delay, meet the requirements of modern conference sound quality;
2. The wireless audio has an ID encryption code, and the audio without the ID encryption code of the system is automatically muted to prevent the interference of other wireless systems;
3. User can freely choose idle frequency communication among 16 frequency points;
4. The wireless indoor barrier-free coverage radius of the system can reach up to 80 meters, and the partition wall is 40 meters, which expands the adaptability to the meeting place;
5. Equipped with 3000mAh lithium battery, and full battery working time ≥ 10h. One charge can meet the requirements of multi Day meetings and reduce the equipment management time;
6. The desktpye conference terminal adopts 128*64 OLED display, any visual angle is clear.;
7. The handheld conference terminal uses 2 AA dry batteries, and the working time is ≧10H when fully charged, which can meet the requirements of the conference;
8. The product has beautiful appearance, no need for complicated wiring construction, graphical human-machine interface, CD sound quality, and clear voice.

· Product Function

1. Press and hold the "speak" button to switch the machine on and off;
2. Short press the "speak" button to start and stop.
3. With SIR communication function;
4. With battery voltage detection, voltage alarm prompt and undervoltage automatic shutdown function;
5. Detachable microphone pole design, easy to maintain and store. Standard length 310mm, support 410/510mm optional, black, suitable for different occasions and meetings;
6. Optional shotgun microphone (black).

· Technical Parameters

Model HCS1000D
Screen OLED display
Battery 3000mAH lithium battery
Communication Distance Outdoor (barrier free) max. 140m Indoor (barrier free) max. 80m
Full-battery standby duration  40H
Full-battery working duration 10H
Mic Rod Removable goose type mic(Stander rod:410mm)
Dimension L x W x H)  110*130*60(mm), rod is not inculded
Weight(Kg)  0.55kg
Working Environment Indoor 0°C -45°C
Storage Environment Indoor -20°C -50°C
Communication Mode pi/4 DQPSK Digital modulation and demodulation technology
Communication Frequency 500-900MHz
Communication Type FHSS 48 Frequency Point
Audio Data 16bit 48kHz, PCM
Audio Frequency  20Hz-20KHz
Audio Delay 2.5MS
Pickup Sensitivity  -46dB±1dB, heart-shaped
Button Speech,Light touch button


HCS1000H Wireless handheld speaker

· Product Features

1. Adopt PI/4 DQPSK digital modulation and demodulation technology;
2. 16bit48kHz PCM format audio code;
3. 2.5ms extremely low voice dela;
4. Has an ID code, and the audio without the ID code of the system is automatically muted;
5. AA battery,Full battery working time ≥10;
6. Delicate and steady hand-held microphone with delicate hand feel, two 8-segment digital tubes with white characters on a black background, the display is clear and clear;
7. It has the functions of battery voltage detection, voltage alarm prompt and undervoltage automatic shutdown;

· Product Function

1.Turn on, speak, shut down, stop ;
2. With SIR communication function;
3. Battery removal function, easy to replace;

· Technical Parameters

Model HCS1000H
Communication Mode pi/4 DQPSK Digital modulation and demodulation technology
Communication Frequency 500-900MHz
Pickup Sensitivity  -59dB±1.5dB, moving coil
Audio Data 16bit 48kHz, PCM
Audio Frequency  30Hz-20KHz
Audio Delay 2.5MS
Button Speech,Light touch button
Display Black and white segment
Battery 2PCS AA Battery
Communication Distance Outdoor (barrier free) max. 140m Indoor (barrier free) max. 80m
Full-battery standby duration  40H
Full-battery working duration 10H
Dimension L x W x H)  length:255mm,max.diameter:49mm
Mic Rod Removable goose type mic(Stander rod:410mm)
Weight(Kg)  0.25kg
Working Environment Indoor 0°C -45°C
Storage Environment Indoor -20°C -50°C
