· Introduction

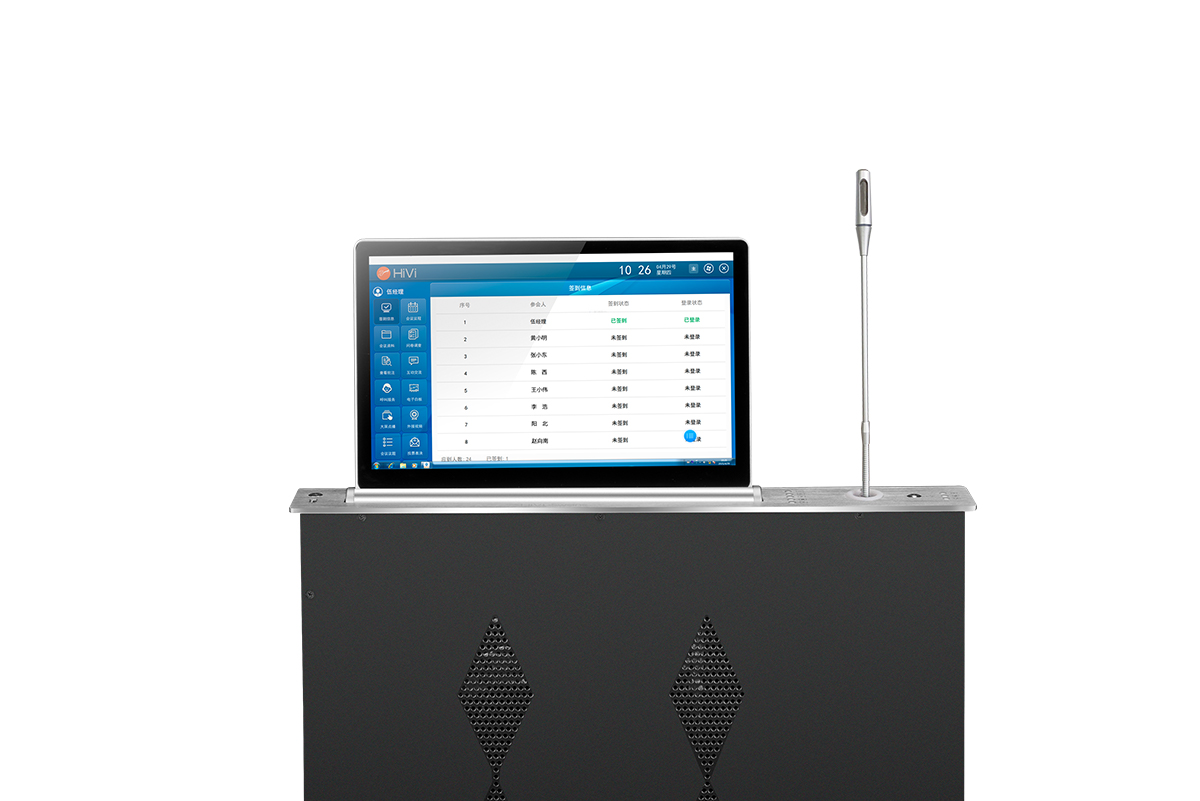

1. The intelligent 15.6inch touch type HD widescreen fits human posture to achieve comfortable visual effect. Its
strictly height designed is according to the angle of not blocking the line of sight. With integrated Lifter design, it
adopts seamless and no backplane connection;
2. The shell of ultra-thin display screen is made of aluminum alloy, and the thickness of the shell edge is only 6.8mm;
3. Multi point Capacitive Touch HD LCD screen with a resolution of 1920 x 1080dpi. The screen vision is IPS full view
LCD screen, with clear and bright display effect.;
4. The Lifter panel is used aviation aluminum of anodization drawing process. The panel width is only 8.8mm;
5.The screen and the ultra-thin circular shaft Lifter have no exposed connecting wires, connecting back panels and
exposed screws, so as to ensure the overall beauty of the lifting type screen;
6. The Lifter supports the controls: hand-in-hand 232, software and manual. The control software supports PC
installation and is compatible with common operating systems. It can be unified controlled or random grouped to
control its movements: lifting, stop and descending;
7. Lifter panel supports: lifting, stop, descending, front and back; multimedia conference terminal ON/OFF socket.
Lifter supports automatic elevation 0 ~ 35°to ensure the best viewing angle and touching screen with comfort;
8. Supports power protection function. Product will be automatically powered of if no operation in a few minutes
after screen descending. Lifter panel preset USB terminal to import and export files. PC on/off is with indicator to
display its status。
· Features
1. Supports login mode like passwords, card, face/fingerprint/ voiceprint recognition.;
2. Supports the basic functions of Electronic Meeting like voting intelligent ranking, SMS service application.;
3. Supports free group discussion on the same screen ad free choice of group hosting;
4. Supports electronic notes and markup; supports handwritten with its unique floating window type exchange
electric white board;
5. Supporting unlimited meetings with multi conference management mode;
6. Before, at or after the meeting management: intelligent meeting notification, one click sending of conference
materials and one click delete after meeting;
7. Multilevel permission management and automatic release of files;
8. Adopt hardware binding strategy and rigorous communication and data transmission encryption protocol to
prevent data leakage;
· Technical Parameters
Model
HY700
Display Size
15.6''
Display Scale
16:912
Physical
Resolution
1920 x 1080
Display Angle
IPS full view
Touchscreen
Capacitive screen, 10
point touch control
Interface
1 x HDMI, 1Á USB2.0
Working
Tempreture
5°C -40ãC
Relative
Humidity
Ý 75%
Working
Consumption
AC: 220V/50Hz/30W
Panel Size
646 x 88 x 5mm (L x H
x D)
Screen Size
378 x 237 x 3.8mm (L
x H x D)
Weight
3.5kg
Color
Silver
