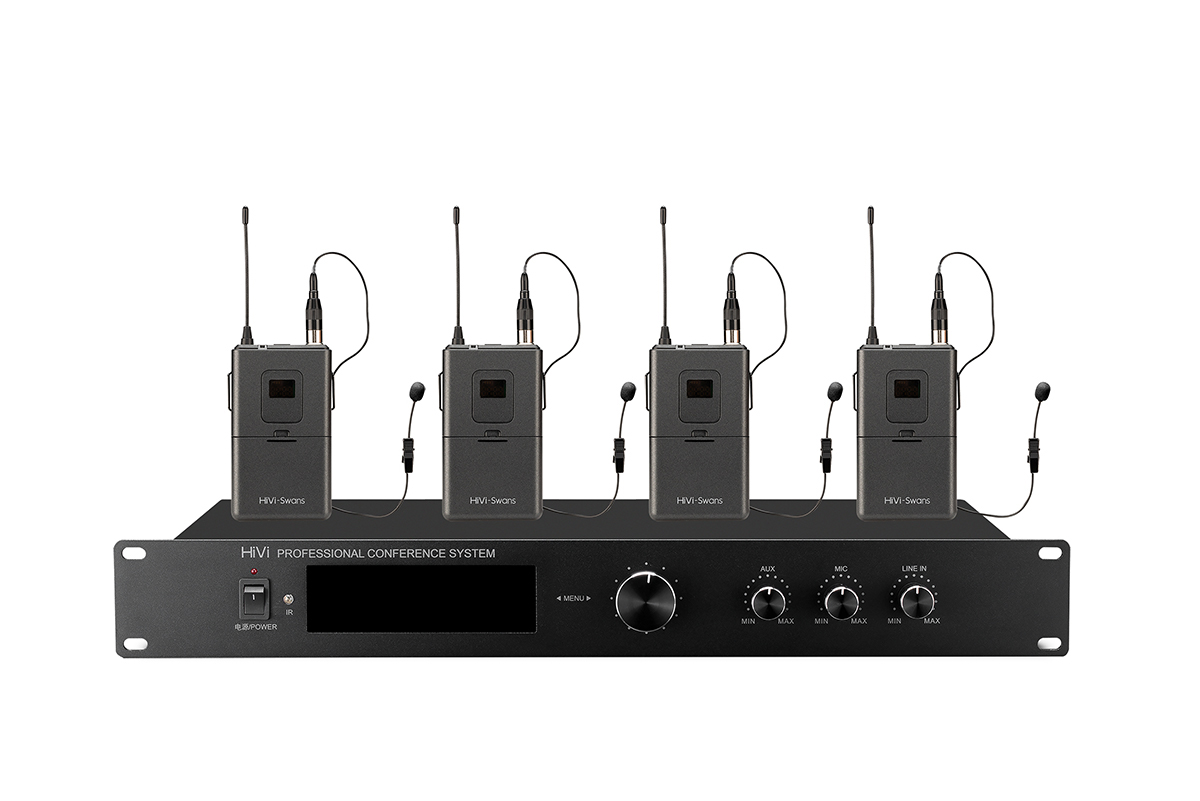

Swan HCS1000-W4 Lavalier/Head Mounted Wireless Microphone Set
$ -
Postage : $0.00
Conference System Full-digital wireless conference system
· 产品特色
HCS10T
1、Include collar & head mic
2、Simple operation and setup
3、The excellent signal transceiver circuit design ensures the strong performance of wireless communication and greatly expands the
4、Adaptability to the venue
5、Working time is ≥ 8 hours
6、Small size and light weight, wearable on the head
· Technical Parameters
| Model | HCS1000CCU |
| Communication system | pi/4 DQPSK Digital modulation and demodulation technology |
| Communication frequency | 500-900MKz |
| Communication method | FHSS.48 Frequency Point |
| Audio data | 16bit 48kHz,PCM |
| Audio delay | 30Hz-20KHz |
| Audio channel count | 2.5ms |
| Wireless reception mode | 4/8 channel |
| Display | P2P Mode/True Diversity Mode |
| Power consumption | 17.7W |
| Dimension(L*W*H) | 482mm x 250mm x 65mm |
| Weight | 4.1KG |
| Model | HCS10T |
| Frequency band | UHF |
| Battery | 2 PCS AA dry battery |
| Microphone sensitivity | >=-46dB |
| Accessories |
MINI
Head-mounted microphone(MIC-01H-Y)
MINI Lavalier (MIC-02C-B)
|
| Waist hanging host size | 112×68×26mm |
| Waist-mounted host frequency response | 48Hz~18KHz±3dB(circuit part) |
| Microphone frequency response | 80Hz~12KHz±3dB |
| Standby power consumption of waist-mounted host | ≦1mA@3V |
| Working current of the waist-mounted host | ≦150mA@3V |
| Working current of the waist-mounted host | Full-battery working duration ≧8H |
| Weight | 15g |
