SWAN HY600 Wired Digital Control Conference System
$ -
Postage : $0.00
Conference System Full-digital wireless conference system
Stock:
0
HY600 Wired Digital Control Conference System
HY600 Wired digital control conference host
HY600C Speaking Chairman
HY600D Speaking Representative
HY600 is an electronic conference equipment specially designed and developed by Swan according to the needs of the conference industry to adapt to modern medium and small conferences.System including：Conference host computer、Conference unit (speaking chairperson, speaking representative)、Connecting wire (eight-core wire, T-head)、PC computer (optional)、HCMS conference system management software (optional)、Video matrix (optional)、HD camera dome (optional) and peripheral audio equipment, display equipment, matrix switcher supporting equipment.
HY600 system supports conference discussion, extended camera tracking and other functions.The system has high reliability, convenient terminal operation, rich and clear information display, online upgrade function, and low maintenance cost.
1. Adopt digital bus control technology;
2. With speech function. Support FREE、LIMIT、APPLY、FIFO、PTT(With HCMS)；
3. Conference key sign-in function;
4. Combined with meeting management software，with Back-office supplementary report and cancellation function;
5. Camera dome control function, combined with external video switching matrix, to achieve camera tracking, to meet different conference camera tracking occasions;
6. The default capacity of the system is 45 units. By expanding the host, the system capacity of 512 units can be realized;
7. The system supports 60 speakers in free mode and 6 speakers in non-free mode;
8. The chairman unit can prohibit or forcibly interrupt the speech of the representative unit;
9. With（MIC）、（AUX）、（UNIT）；
10. The system supports "hand in hand" and T-bus link;
11. When the system is offline, the terminal can be ID-addressed by itself;
12. The system supports HCCP protocol, and the host and conference terminal can upgrade the software online;
13. To achieve camera and functions, it needs to be used with Swans conference management software HCMS;

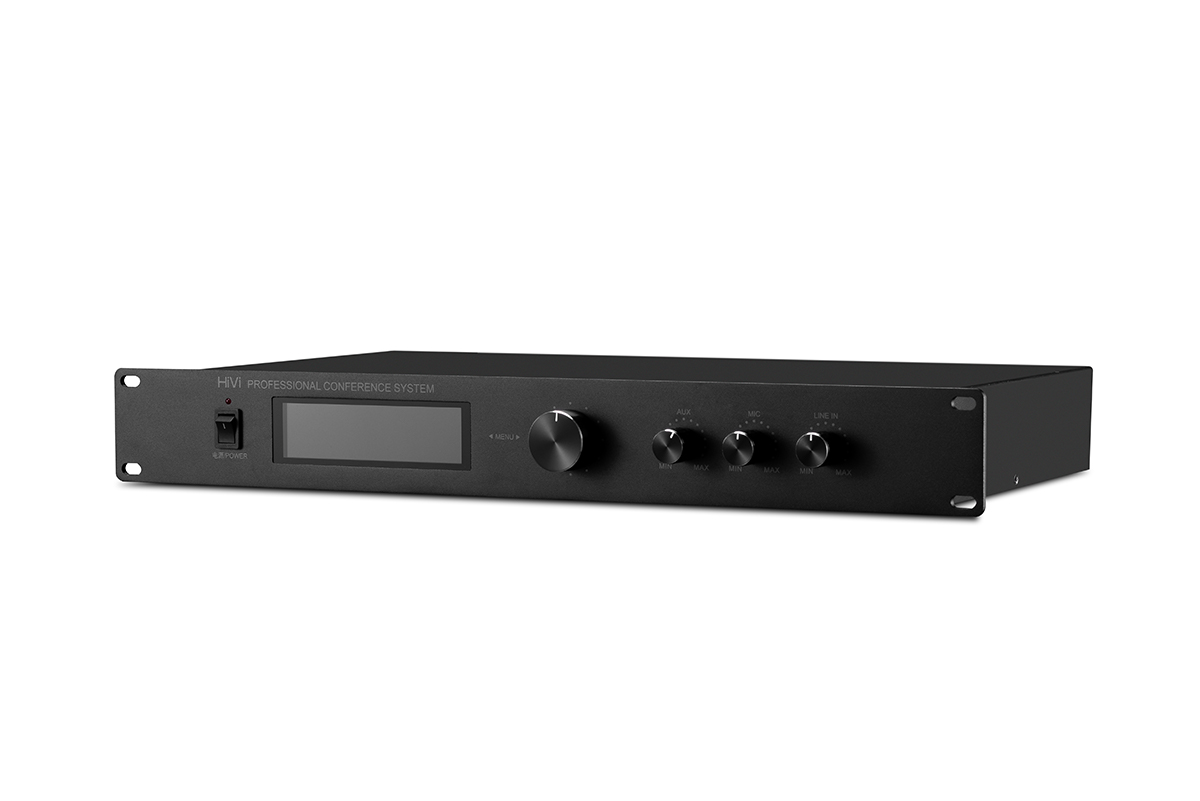

| HY600 Wired digital control conference host
· Product Features
1. System settings and system information display, conference
mode, maximum number of speakers, language and
communication parameters settings;
2. Conference discussion mode: FREE, LIMIT, FIFO,APPLY and PTT, etc;
3. Supports conference terminals and conference host on-line update;
4. Intelligent management to conference terminal: register, ID addressing, status management, offline check-in;
5. Supports speech camera checking (combine with video matrix), support PELCO-D camera control protocol.Maximum support 225 preset points recording and reviewing.
6. Follow HCCP conference control protocol;
7. Supports online and offline function.
8. With data transparent transmission function, PC can indirectly manage the conference terminals through the host;
9. Transplant with LWIP lightweight TCP/IP protocol stack, to make the host more easier to expand functions in the
future through expanding the host.;
10. In online mode, it supports PC management of conference equipment, conference agenda control, conference parameter setting and terminal speech management functions;
· Technical Parameters
| Model | HY600 |
| Frequency Response | 40HZ~18KHZ(±3dB) |
| THD | (THD)<0.5% (40HZ~18KHZ, normal) |
| SNR | >70dB |
| Source | AC110/220VÀ10% |
| Record audio output | 0~2.8VVpp |
| Max. Power | 350W |
| Standard Capacity | 45 conference units |
| Max. Capacity | By expanding the host, up to 512 |
| PC Communication | units RJ-45 |
| Other communication interfaces | RS232 |
| Camera tracking communication | RS485 |
| Speech Mode | (FREE),(LIMIT),(FIFO),(APPLY),(PTT) |
| Check in | Press Button |
| Limit of Mic | 1/2/4/6 |
| Photographic tracking protocol | PELCO-D |
| Audio Input | One-way MIC radio input 1Vpp 75Ω 256*64 |
| LCD | White on Black+backlit DFSTN LCD |
| System Expansion | Expansion to connect Swans HY100 series wireless conference system |
| Dimension | 428mm x 240mm x 56mm(without rack mount accessories) |
| Weight | 4.1KG |
| Working/Storage Temperature | Room temperature 0°C -45°C/-20°C -50°C |

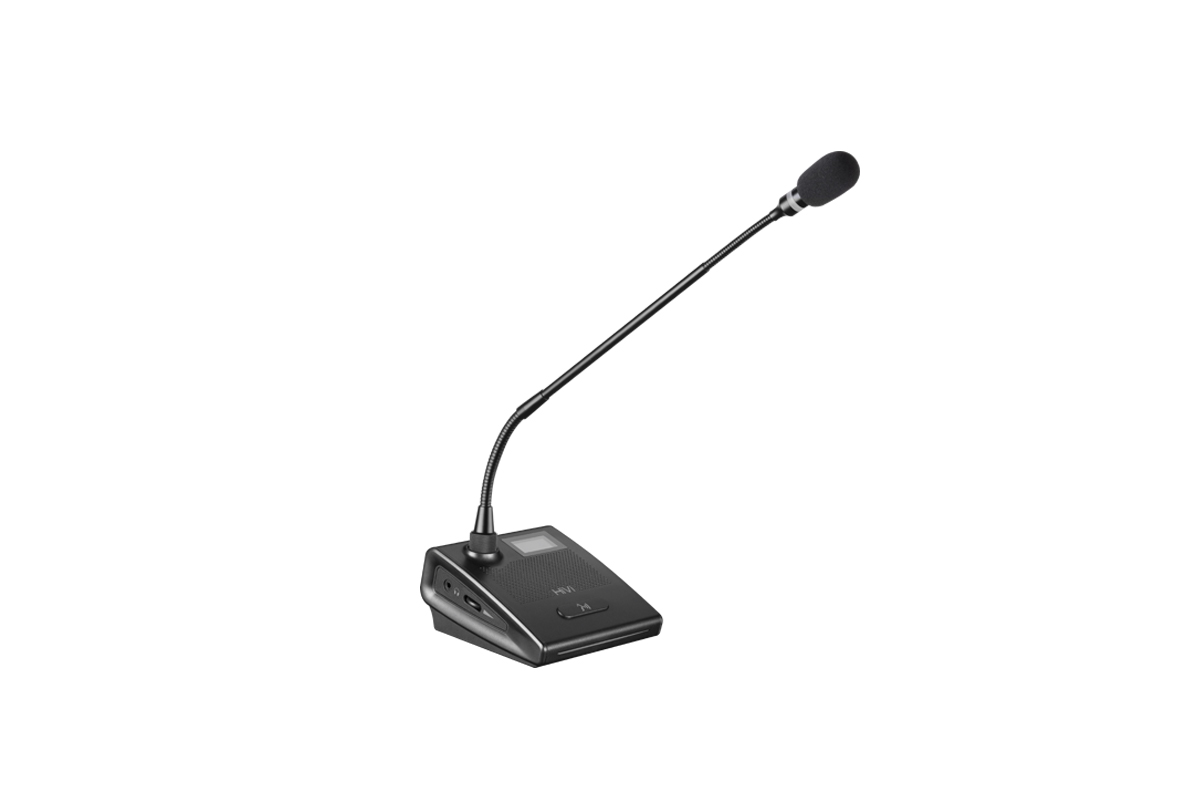

| HY600C speaking chairman
· Product Features
1. Adopt digital bus control technology;
2. With speech function；
3. Speaking Timing Reminder；
4. Two-color indicator and linear light strip, red for speak, green for application；
5. 128*64 OLED display with black background and white characters. users can clearly see the
screen from any angel；
6. Pattern information display, humanized operation；
7. With camera preset points recording function；
·Product Function
1. With the function of speaking and applying for speaking，support：FREE、LIMIT、APPLY、FIFO先、PTT；
2. Support button sign-in；
3. Speaking Timing Reminder；
4. Pattern information display, humanized operation；
5. There are 3 lengths of gooseneck microphone pole (standard 310mm, 410/510mm length optional, black standard); gun-type microphone pole is optional (black), suitable for different occasions and meetings; removable microphone pole, easy maintenance custody;
| HY600D speaking representative
· Product Features
1. Adopt digital bus control technology;
2. With speech function；
3. Speaking Timing Reminder；
4. Two-color indicator and linear light strip, red for speak, green for application；
5. 128*64 OLED display with black background and white characters. users can clearly see the screen from any angel；
6. Pattern information display, humanized operation；
7. With camera preset points recording function；
· Product Function
1. With the function of speaking and applying for speaking，support：FREE、LIMIT、APPLY、FIFO、PTT；
2. Support button sign-in；
3. Speaking Timing Reminder；
4. Pattern information display, humanized operation；
5. There are 3 lengths of gooseneck microphone pole (standard 310mm, 410/510mm length optional, black standard); gun-type microphone pole is optional (black), suitable for different occasions and meetings; removable microphone pole, easy maintenance custody;
· Technical Parameters
| Model | HY600C Speech Chairman | HY600D Speech Representative |
| Frequency Response | 40HZ~18KHZ (A3dB） | |
| Sensitivity | -46dBA 1dB | |
| Screen | 128*64 White on Black +backlit OLED | |
| Check in | Press button | |
| Pickup spacing | 100-600mm | |
| Standard microphone pole length | 410mm | |
| Power | 24V | |
| Dimension | 110x 130 x 60m | |
| Weight | 0.55KG | |
| Working/Storage Tempreture | Room tempreture 0°C/-20°C -50°C | |
| Note: The difference between the chairman and the representative is that the chairman unit has a priority key | ||
