Swan HY100 wireless digital control conference system
$ -
Postage : $0.00
Model
Conference system Full-digital wireless conference system
Stock: 0


|HY100 All-digital wireless conference system

HY100CCU All-digital wireless conference discussion host
HY100Desktop unit
HY100Wireless handheld speaker

1. Adopt pi/4 DQPSK digital modulation and demodulation technology, 16bit/48kHz PCM format audio code, 2ms extremely low voice delay, meet the requirements of modern conference sound quality;
2. The wireless audio has an ID encryption code, and the audio without the ID encryption code of the system is automatically muted to prevent the interference of other wireless systems;
3. User can freely choose idle frequency communication among 16 frequency points;
4. The wireless indoor barrier-free coverage radius of the system can reach up to 80 meters, and the partition wall is 40 meters, which expands the adaptability to the meeting place;
5. Equipped with 3000mAh lithium battery, and full battery working time ≥ 10h. One charge can meet the requirements of multi Day meetings and reduce the equipment management time;
6. The desktpye conference terminal adopts 128*64 OLED display, any visual angle is clear.;
7. The product has beautiful appearance, no need for complicated wiring construction, graphical human-machine interface, CD sound quality, and clear voice;

|HY100 All-digital wireless conference discussion host

HY100CCU The all-digital wireless conference host is based on  modular design, including  wireless receiving module,  audio processing module,  LCD display module,  electronic knob man-machine operation, volume adjustment module, and power processing module to achieve corresponding functions.

· Product Features

1. Adopt pi/4 DQPSK digital modulation and demodulation technology;
2. 16bit/48kHz PCM format audio code
3. 2ms extremely low voice delay
4. Has an ID code, and the audio without the ID code of the system is automatically muted;
5. 16 frequency points;
6. Communication distance 80 meters (indoor barrier-free coverage radius);
7. Frequency resource planning is required, and multiple wireless systems can coexist and use;
8. Host wireless reception supports P2P mode and true diversity mode;
9.With SIR infrared communication function, the unit parameters are set and adjusted by the host;

· Product Function

1. Support 2/4/6/8 units to speak;
2. 256*64 LCD graphic dot matrix liquid crystal, which can display system information, channel parameters and other information, and provide system setting menus in traditional and simplified Chinese and English;
3. With electronic navigation knob for menu operation;
4. 1-channel wired microphone input, 1-channel stereo linear audio input;
5. 1-channel stereo recording output, 2-channel conference mixing output;
6. The volume of conference mixing output is adjustable, the volume of stereo input and recording output is adjustable, and the volume of microphone input is adjustable;
7. Set the speech volume, audio channel and wireless frequency of the conference unit through the host;
8. The receiving channel has real-time wireless communication indication, clearly indicating the wireless sending and receiving situation;

· Product parameters

Model HY100
Communication Mode  pi/4 DQPSK
Communication Frequency 500-900MHz
Communication Type FHSS48 frequency point
Audio Data 16bit 48KHzPCM
Audio Frequency  30Hz-20KHz
 Audio Delay  2.5ms
Audio channel count 4/8 channel
Wireless reception mode P2P Mode, True Diversity Mode
SNR ≥74DB(A weight)
THD 0.249%(30HZ-20KHZ)
Button Electronic knob with confirm function
Screen  256*64 graphic dot matrix liquid crystal
Power supply 14220VAC 50HZ
Power consumption 17.7W
Measurement(L*W*H) 428X240X65(mm)
Weight(Kg)  4.1kg
Working/Stock Environment   Temp. 0℃-45C/-20C-50C

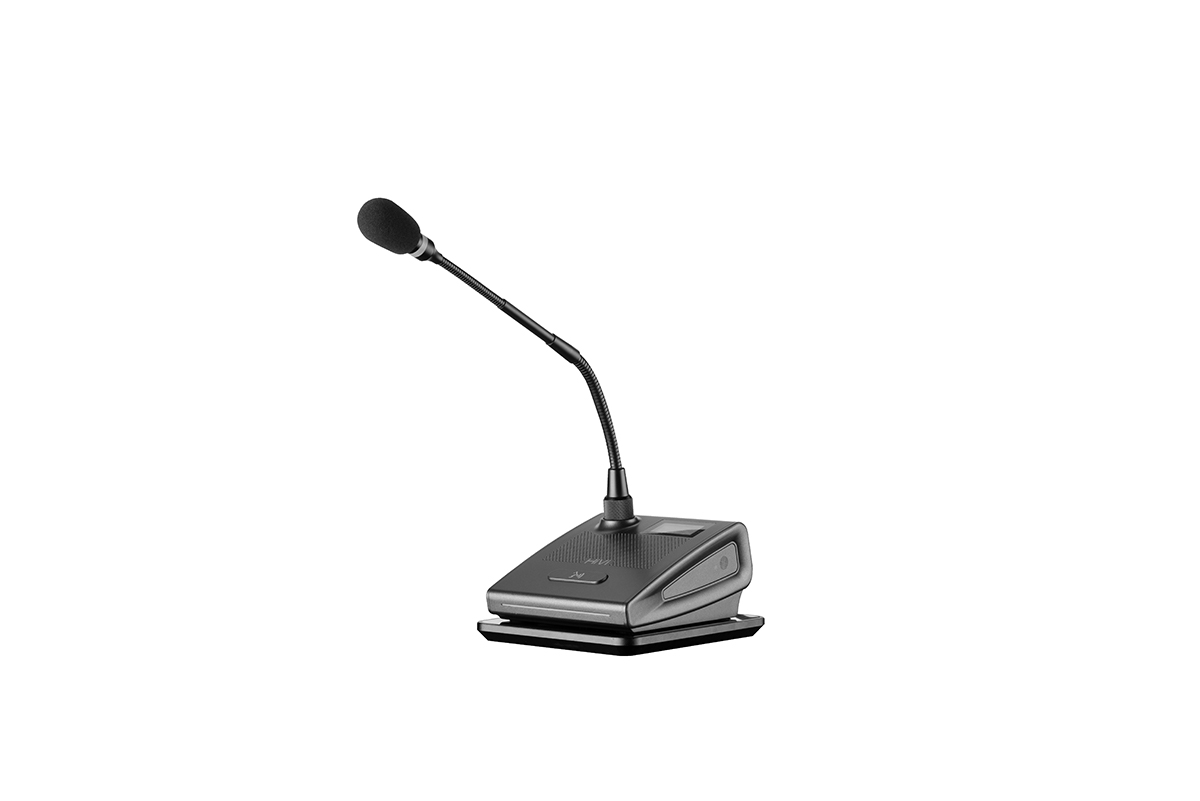

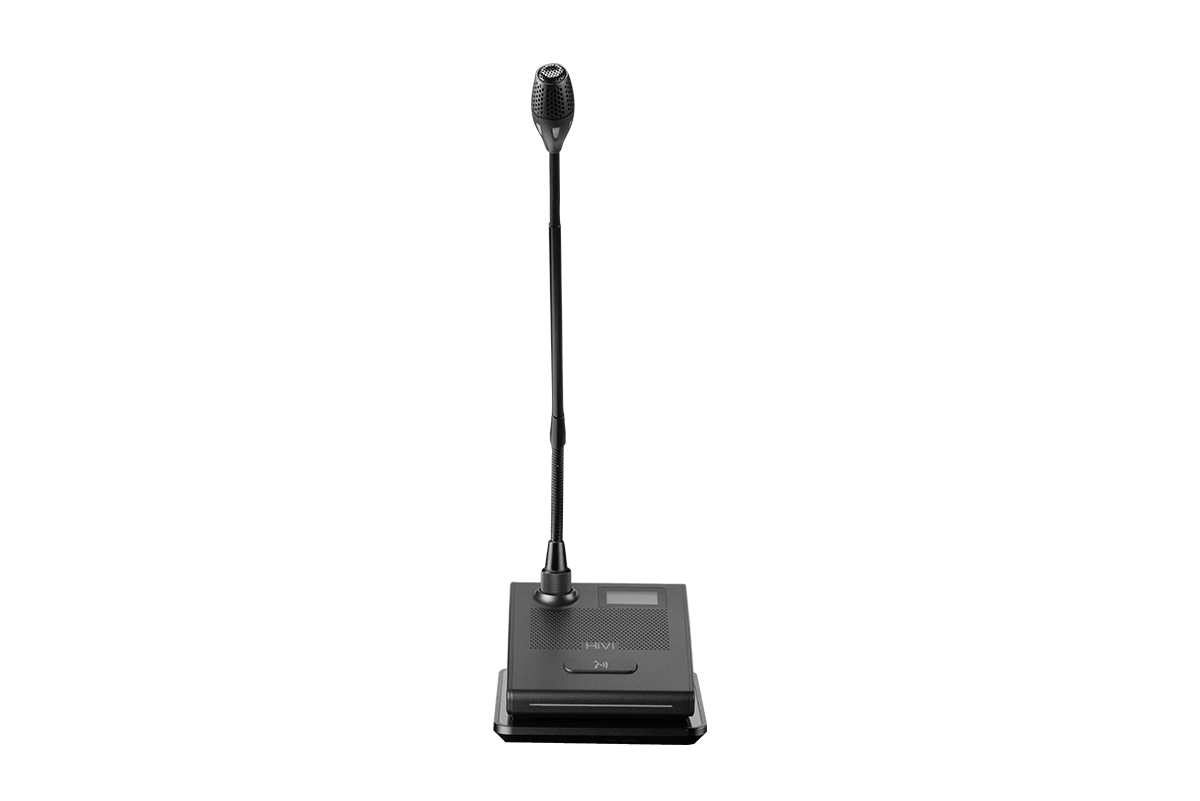

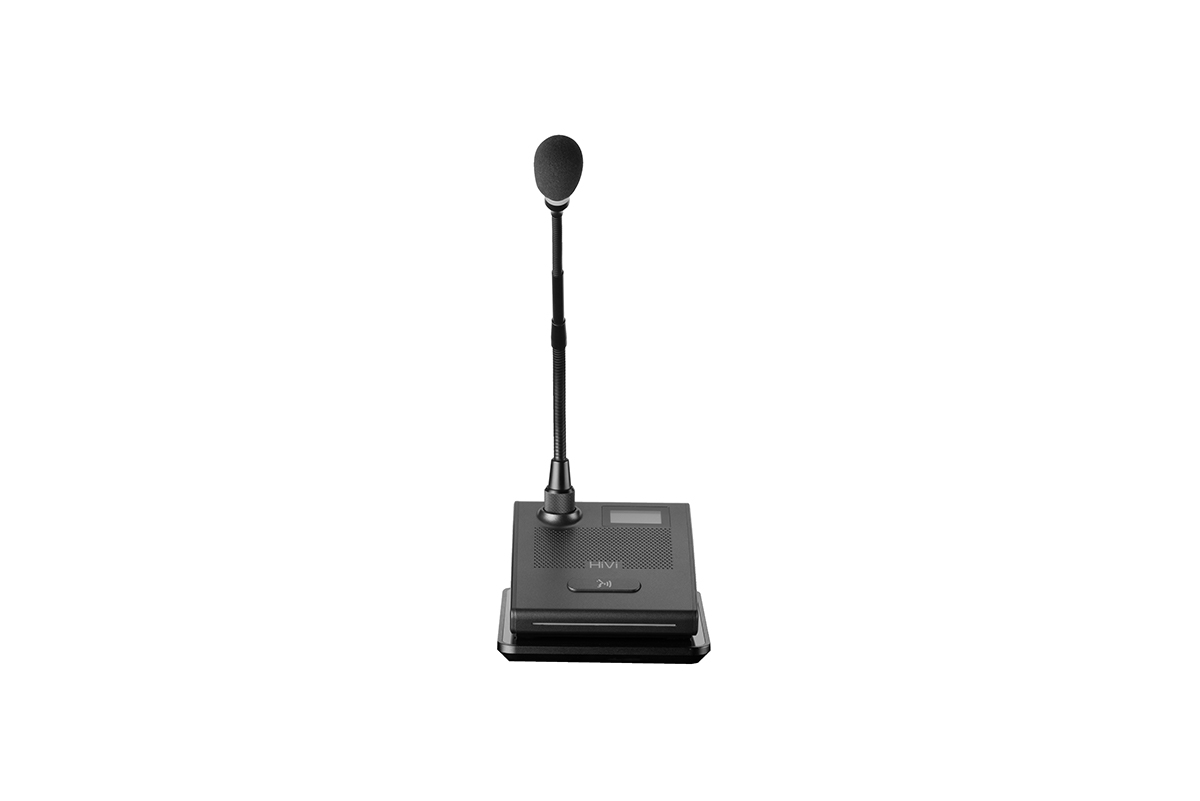

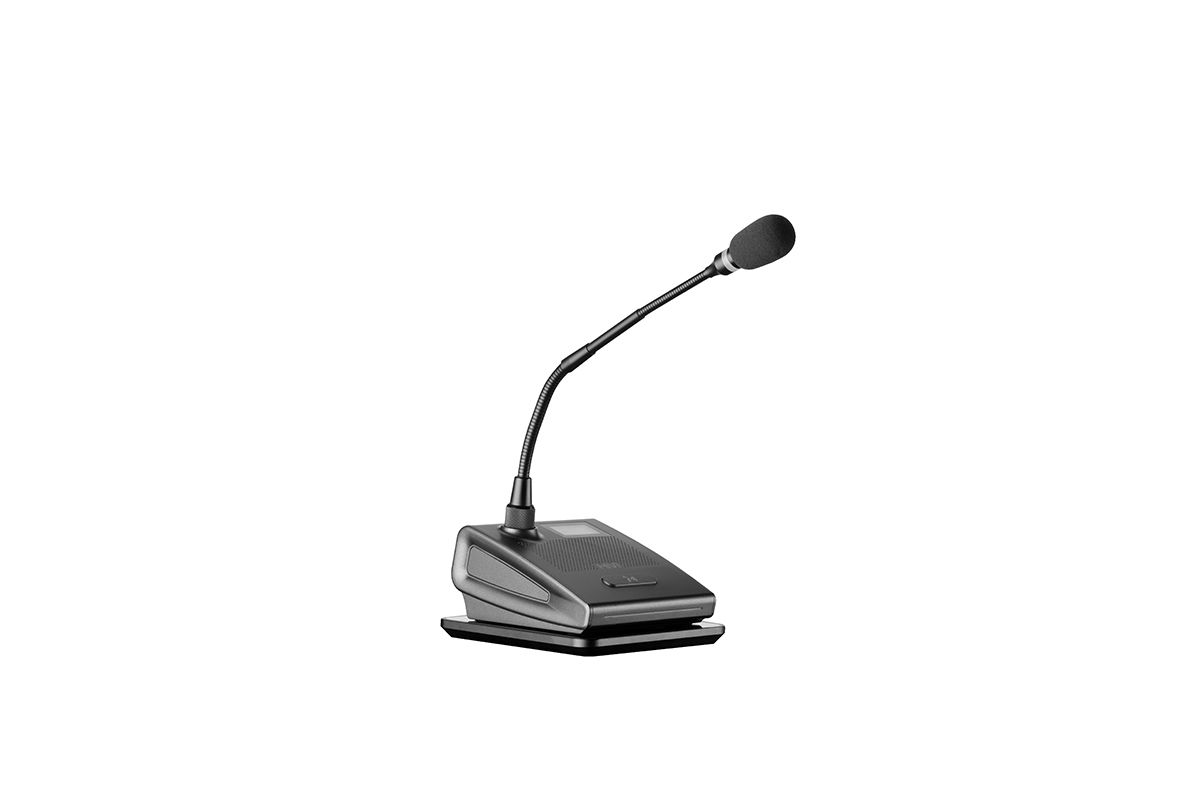

HY100Desktop unit


· Product Features

1. Adopt pi/4 DQPSK digital modulation and demodulation technology, 16bit/48kHz PCM format audio code, 2ms extremely low voice delay, meet the requirements of modern conference sound quality;
2. The wireless audio has an ID encryption code, and the audio without the ID encryption code of the system is automatically muted to prevent the interference of other wireless systems;
3. User can freely choose idle frequency communication among 16 frequency points;
4. The wireless indoor barrier-free coverage radius of the system can reach up to 80 meters, and the partition wall is 40 meters, which expands the adaptability to the meeting place;
5. Equipped with 3000mAh lithium battery, and full battery working time ≥ 10h. One charge can meet the requirements of multi Day meetings and reduce the equipment management time;
6. The desktpye conference terminal adopts 128*64 OLED display, any visual angle is clear.;
7. The product has beautiful appearance, no need for complicated wiring construction, graphical human-machine interface, CD sound quality, and clear voice;

· Product Function

1. Long press the "speak" button to turn on and off the machine;
2. Short press the "speak" button to start and stop;
3. With SIR communication function;
4. With battery voltage detection, voltage alarm prompt and undervoltage automatic shutdown function;
5. Detachable microphone pole design, easy to maintain and store. Standard length 310mm, support 410/510mm optional, black, suitable for different occasions and meetings;
6. Optional shotgun microphone (black);

· Product parameters

Model HY100D
Communication Mode  pi/4 DQPSK
Communication Frequency  500-900MHz
Communication Type FHSS48 frequency point
Audio Data 16bit 48KHzPCM
Audio Frequency  30Hz-20KHz
Audio Delay  2.5ms
Pickup Sensitivity  Capacitive cardioid,-46dB±1dB
Button Speech,Light touch mechanical key
Screen  128*64 OLED display
Battery 3000mAH Lithium battery
Communication Distance Outdoor (barrier free) max. 140m
Indoor (barrier free) max. 80m
Full-battery standby duration ≥40H
Full-battery working duration ≥10H
Mic Rod
Detachable Shotgun Microphone (Length 229mm, Black)
Detachable gooseneck microphone (length 410, 310/510mm optional, black)
Measurement 110*130*60(mm),rod is not inculded
Weight 0.55KG
Working/Stock Environment  Temp. 0°C -45°C/-20°C -50°C



HY100wireless handheld speaker

· Product Features

1. Adopt PI/4 DQPSK digital modulation and demodulation technology;
2. 16bit48kHz PCM format audio code;
3. 2.5ms extremely low voice delay;
4. Has an ID code, and the audio without the ID code of the system is automatically muted;
5. Full battery working time ≥10;
6. Two 8-band white and black segment tubes on black background is clear;
7. With battery voltage detection, voltage alarm prompt and undervoltage automatic shutdown function ;

· Product Function

1. Short press the "speak" button to start and stop;
2. With SIR communication function ;
3. Battery removal function for easy replacement;

· Product parameters

Model HY100H
Communication Mode pi/4 DQPSK
Communication Frequency  500-900MHz
Communication Type FHSS48 frequency point
Audio Data 16bit 48KHzPCM
Audio Frequency  30Hz-20KHz
Audio Delay  2.5ms
Pickup Sensitivity  -59dB±1.5dB,Moving Coil
Button Speech,Light touch mechanical key
Screen  Segment display
Battery 2PCS AA dry batteries
Communication Distance Outdoor (barrier free) max. 140m
Indoor (barrier free) max. 80m
Full-battery standby duration ≥40H
Full-battery working duration ≥10H
Measurement L: 255mm,max. diameter: 49mm
Weight 0.25kgBare Metal
Working/Stock Environment  Temp. 0°C -45°C/-20°C -50°C
Model HY01A
Number of chargeable units allowed 1 pcs
Power supply USB ChargeDC5V3A
Power 15W
Maximum battery charge voltage 4.25V
Maximum battery charging current 2.8A
Status indication Charging: green indication, Full: red indication
Measurement 125*145*15(mm)
Weight 0.15KG
Working/Stock Environment  Temp. 0°C -45°C/-20°C -50°C
