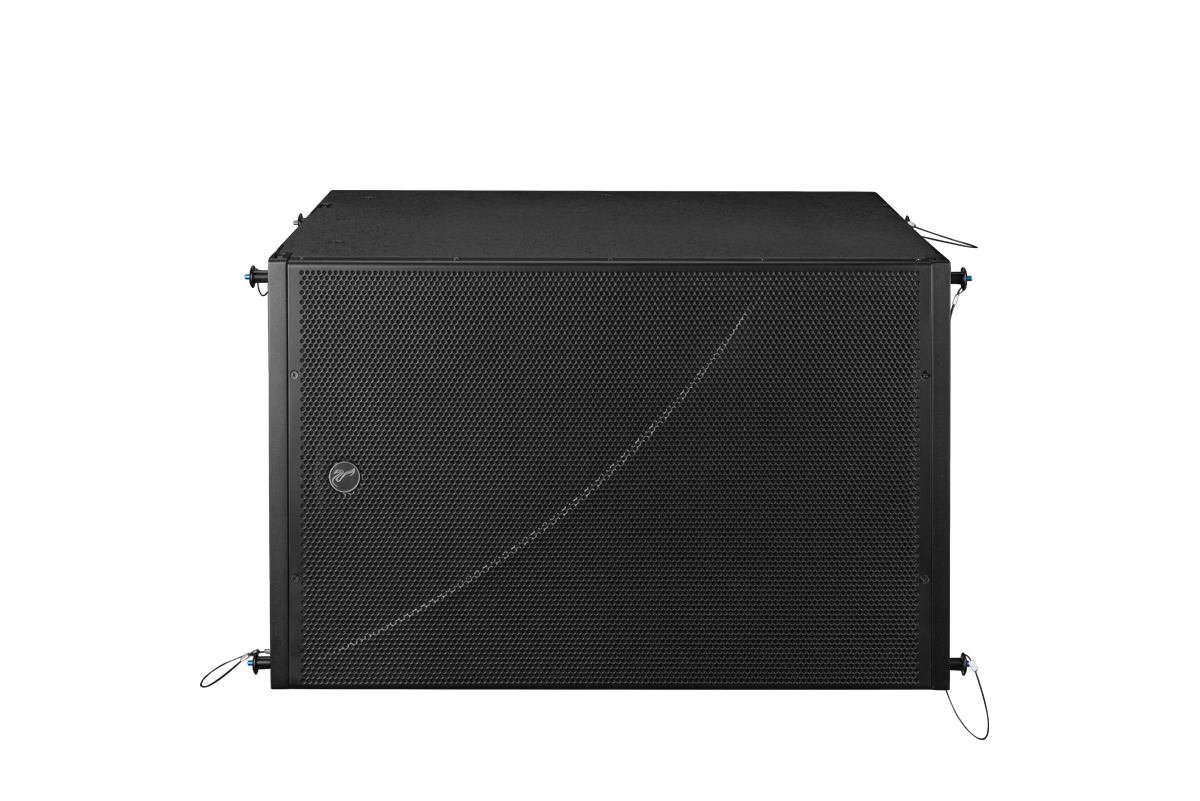

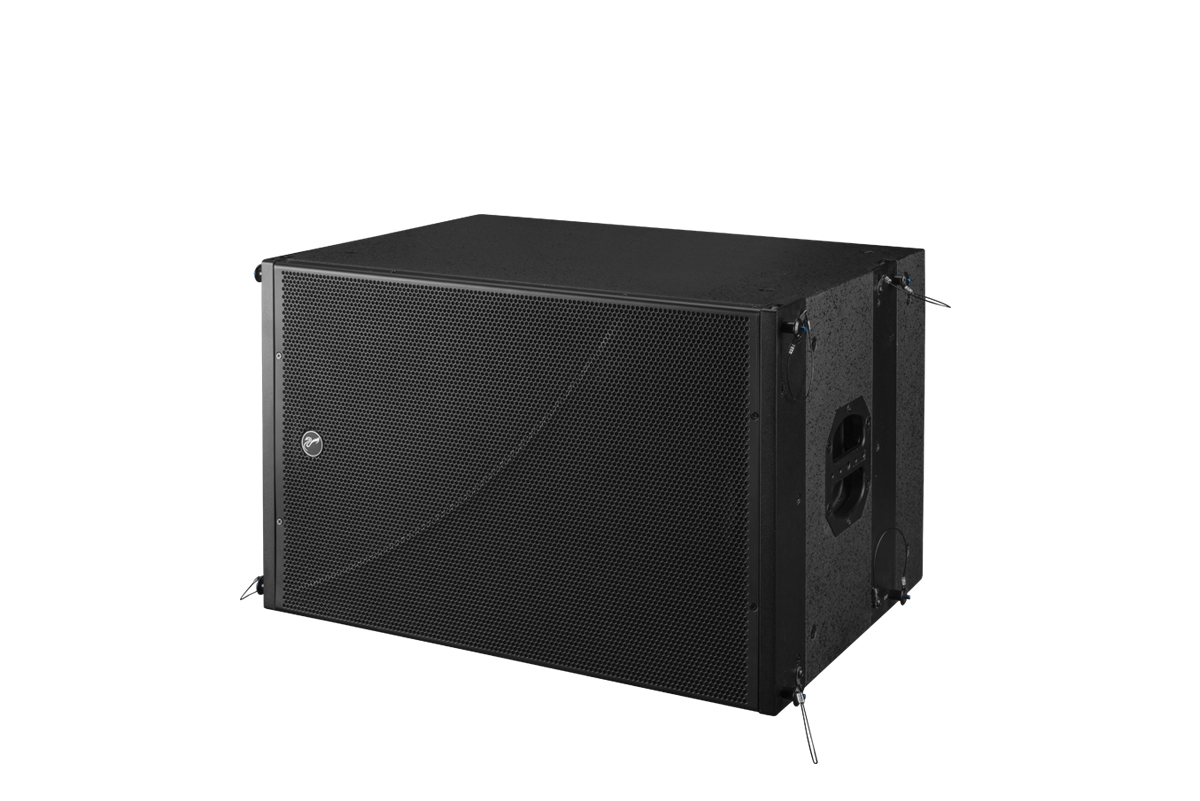

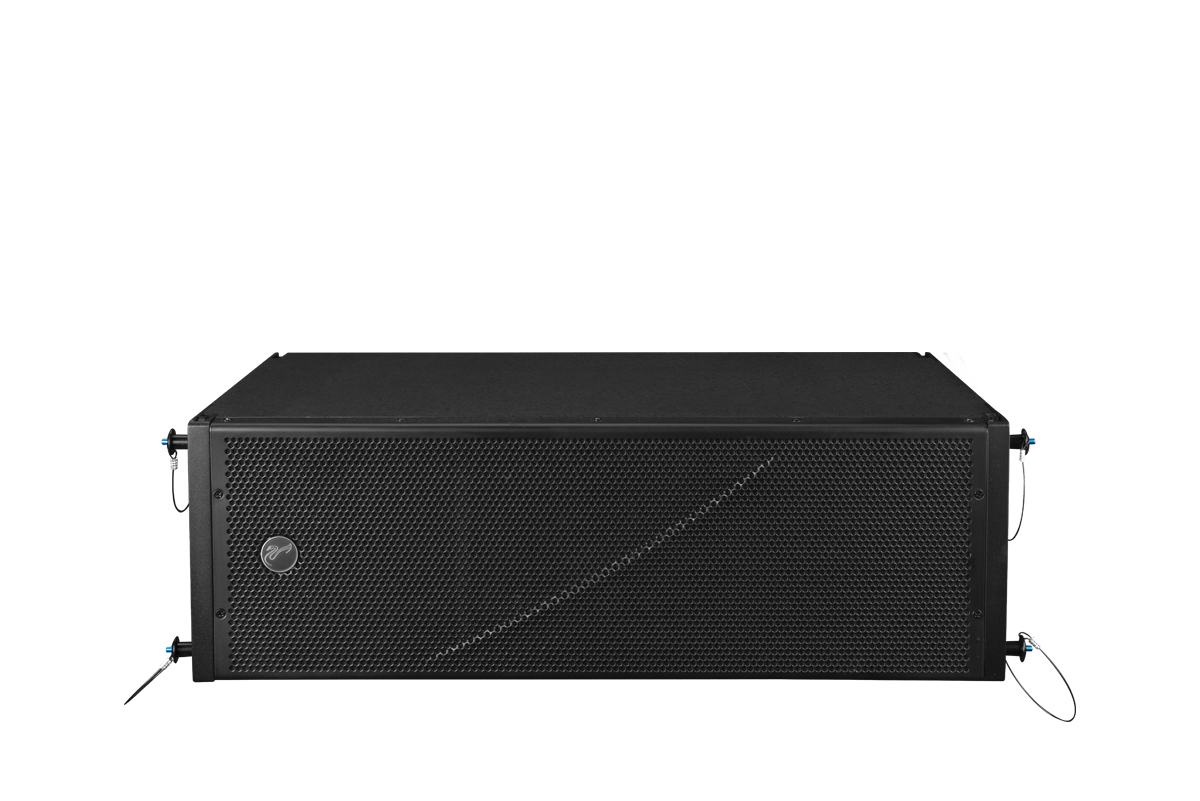

Swan Pro-1502s + Pro-8002 Line Array Speakers
$ -
Postage : $0.00
Public Broadcasting Professional Speaker System
Stock:
0

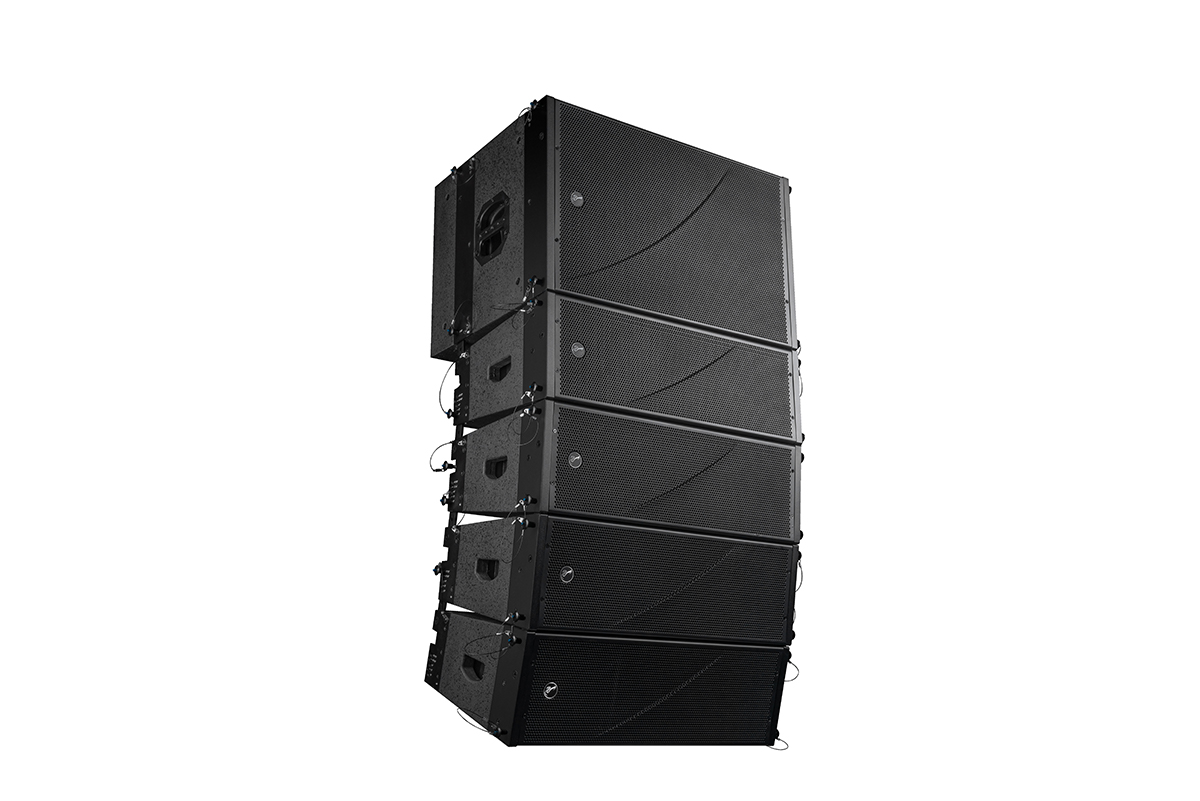

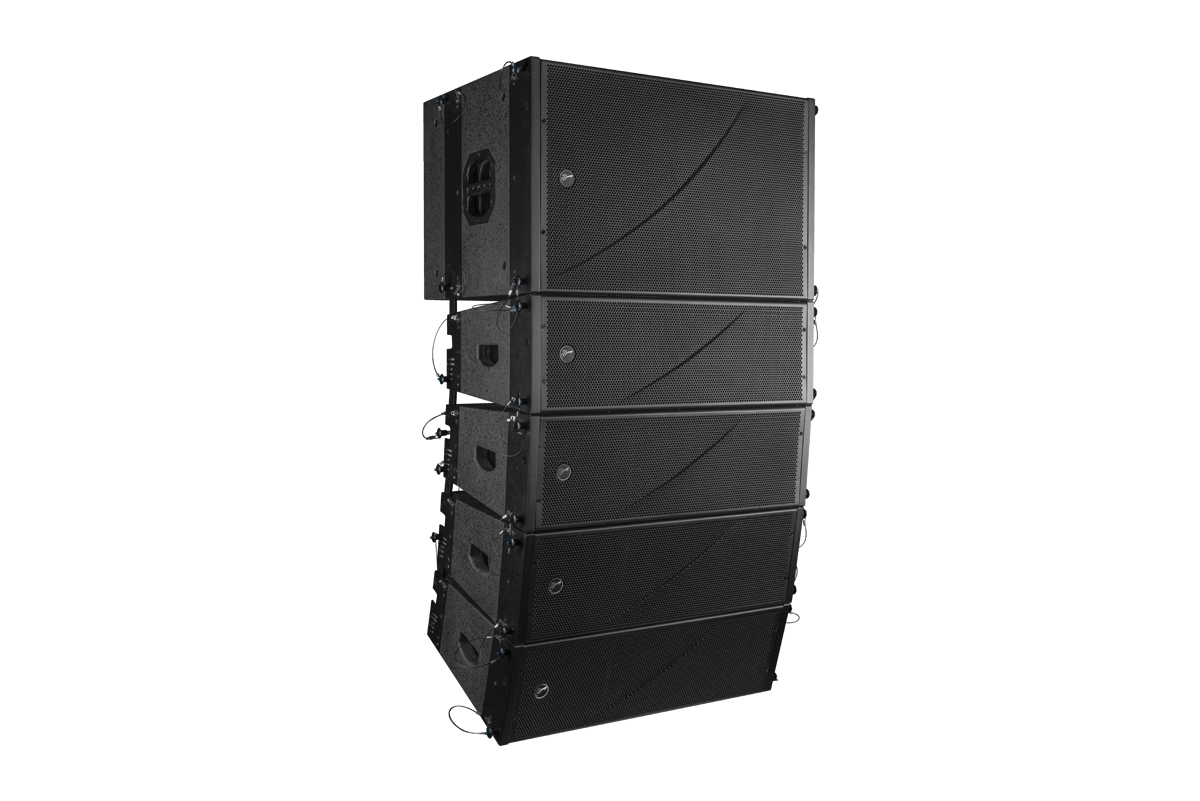

Pro-8002 and Pro-1502S are new conference line array speaker systems launched by Swans to solve the sound pressure level attenuation caused by long-distance transmission of sound. Through the correction of the wave front, it is close to the plane wave transmission, so as to solve the problem of long-distance transmission. Through the special hanging system, multiple speakers can be beneficially connected, forming a powerful line sound source, continuous sound pressure level High, dynamic, good transient.
This system is especially suitable for various basketball halls, assembly halls, auditoriums, theaters, multi-functional conference rooms, etc. It is also equipped with hangers, latches, various connectors, etc., which are convenient for system combination and hoisting.
Product portfolio
Bass configuration: 2 8" (φ51mm core) bass
Tweeter configuration: 1 2" (φ44mm core) tweeter
Forming board: birch plywood
External protective layer: Eco-friendly hardened black dot paint
Hanging parts: special hanging system
Front protection: spray-hardened steel mesh with rounded holes
Product Size
Product Parameters
| Model | Pro-1502S |
| Frequency range | 43Hz~350Hz |
| Rated input power | 700W （continual）/ 1400W （program signal）/2800W（peak） |
| Sensitivity | 101dB (1w/1m) |
| Max SPL | 130dB (continual)/436dB (peak) |
| Rated impedance | 4Ω |
| Woofer | 2x15" (75mm voice coil) |
| Input connection | 2xspeakon NL4 |
| Install | Hanger |
| Size（WXHXD） | 792x490x697mm |
| N.W. | 57kg |
| Model | Pro-8002 |
| System configuration | 2-way full range |
| Product portfolio | Bass :2* 8”（φ51 mm）woofer |
| Treble:1*3”（ φ44mm）tweeter | |
| Forming board: birch plywood / outer protective layer: environmental protection hardened black dot paint | |
| Hanging parts: special hanging system/front protection: sprayed and hardened steel mesh with rounded holes | |
| Frequency（±3dB） | LF: 73Hz-2kHz / HF: 1kHz-18kHz |
| Sensitivity（axi1m/1W） | LF: 95dB/HF: 105dB |
| Input impedance | LF: 16Ω / HF: 8Ω |
| Continual power | LF:250W/HF: 60W |
| Spread angle | Horizontal： 110°(100m)/ Vertical:10°(150m) |
| Coverage angle | 0。、2。、4。、6。、8。、10。、12° |
| Hoisting Options (Wire Sets) | Iron frame (one set) / 2 manual hoists / 2 nylon straps / waterproof canvas |
| Size（WXHXD） | 792x265x433mm |
| N.W. | 25.3kg |
