Swan PK Series Entertainment Speakers
$ -
Postage : $0.00
Professional speaker PK series Professional Speaker System
Stock:
0
|
Features |
||
|
A new generation of PK series KTV Club dedicated speakers, designed for large-space KTV room sound reinforcement applications, including 2 models: A new generation of PK series KTV Club dedicated speakers, designed for large-space KTV room sound reinforcement applications, including 2 Model: PK1 (10-inch full-range speaker), PK2 (12-inch full-range speaker), which will further enrich the PK series product line.

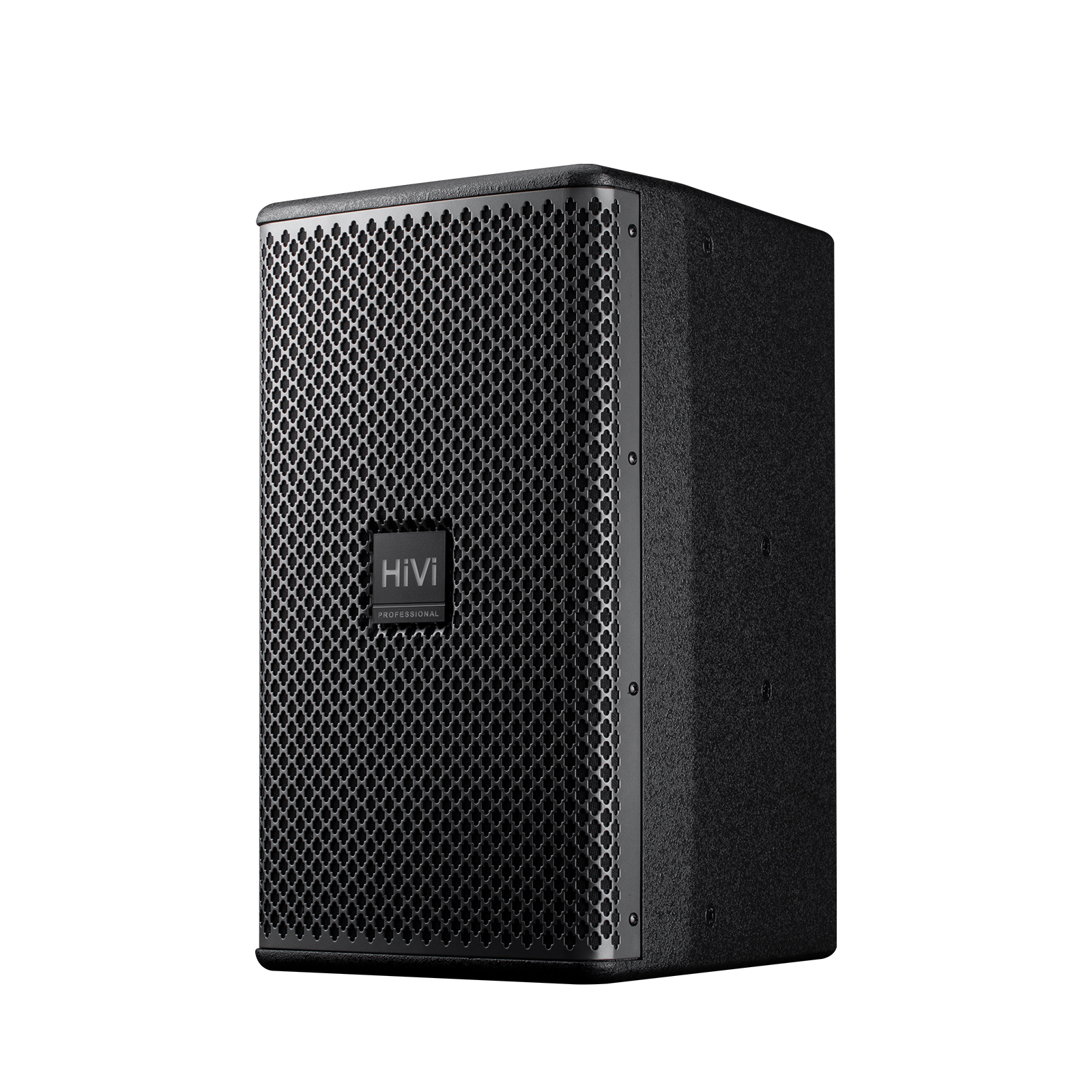

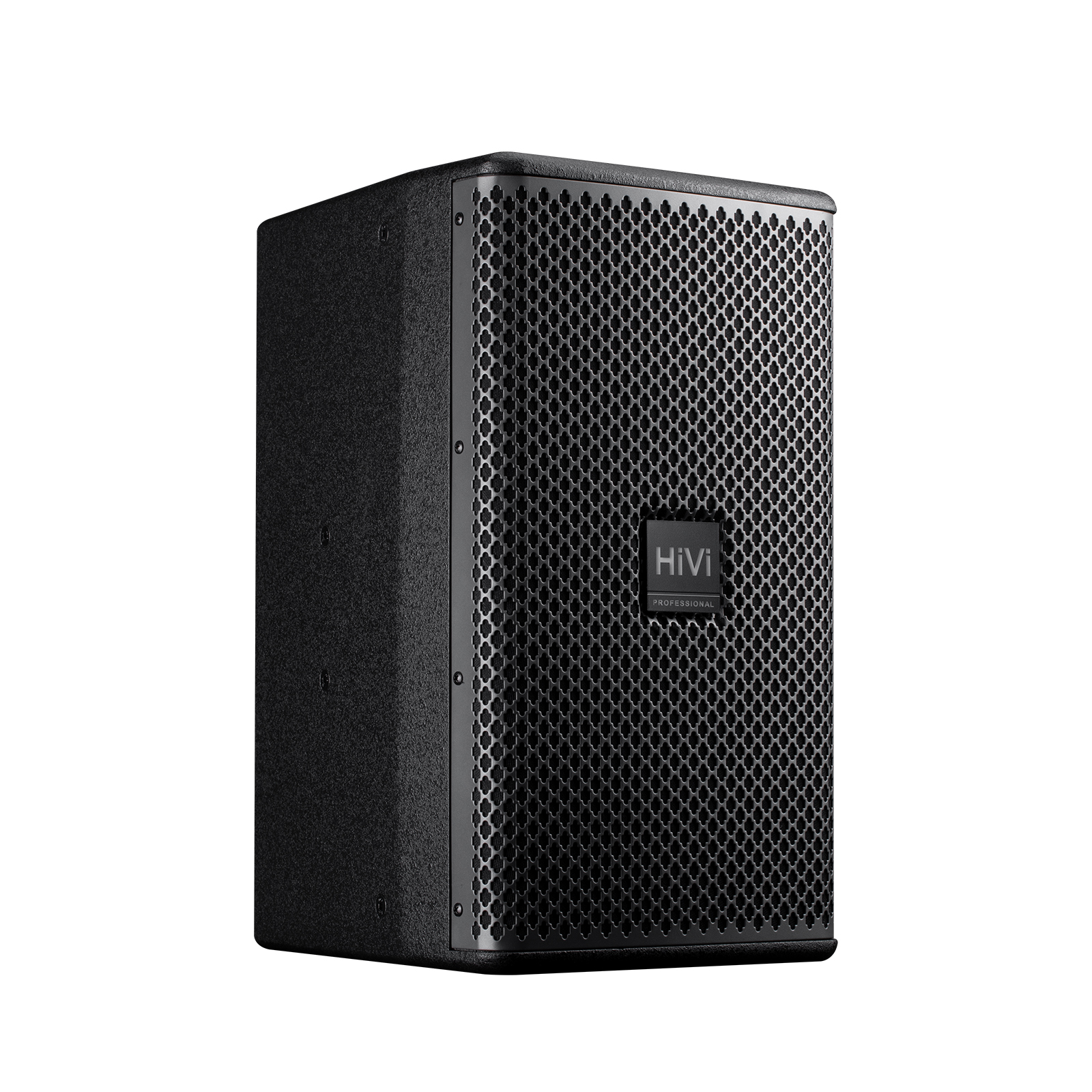

The PK series adopts the classic black as the main color, and the overall appearance is luxurious and elegant; the surface of the titanium gray iron mesh is treated with a special process, the color is brighter, and the anti-corrosion and anti-aging ability is stronger!
|
||
|
Technical Parameters |
||
|
System |
PK1 |
PK2 |
|
System Type |
10",2-way, bass reflex |
12", 2-way, bass reflex |
|
Frequency Range(-10dB) |
48Hz-20kHz |
45Hz-20kHz |
|
Frequency Response(+3dB) |
80Hz-20kHz |
80Hz-20kHz |
|
Sensitivity(1w@1m)' |
96dB |
98dB |
|
Rated Impedance |
8Ohms |
8Ohms |
|
Maximum SPL output2 |
122dB(continued)128dB(peak) |
125dB(continued)131dB(peak) |
|
Rated Input Power3 (continued/music signal/peak) |
400W/800W/1600W |
500W/1000W/2000W |
|
Coverage |
70°×60°(H×V) |
70°×60°(H×V) |
|
Appearance |
||
|
Dimension(H×W×D) |
533mm×300mm×370mm |
600mm×360mm×410mm |
|
N.W.(±10%) |
16.6Kg(47.01bs) |
21.3Kg(47.01bs) |
|
Woofer |
1×10"(255mm) |
1×12"(304.8mm) |
|
Tweeter |
1×1.5"(38.1mm) |
1×1.5"(38.1mm) |
|
Connection |
2×Neutrik Speakon NL4MP |
2×Neutrik Speakon NL4MP |
|
Finish |
Trapezoid, 15mm high quality multi-layer plywood |
Trapezoid, 15mm high quality multi-layer plywood |
|
Production Dimension |
||
|
|
||
No relative downloads now.
