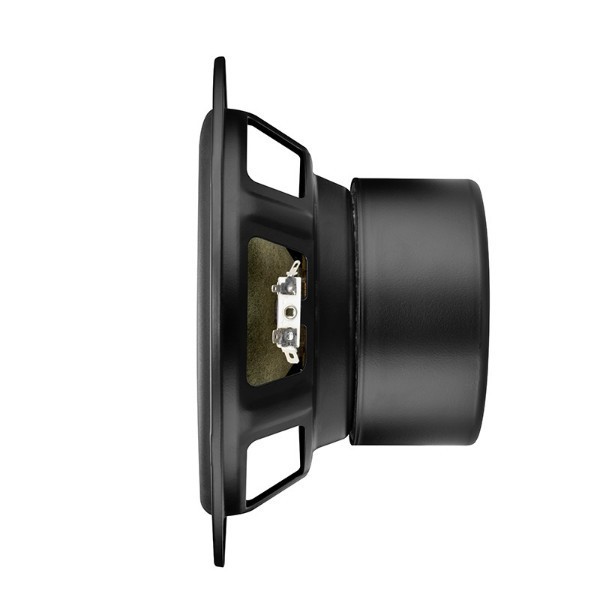

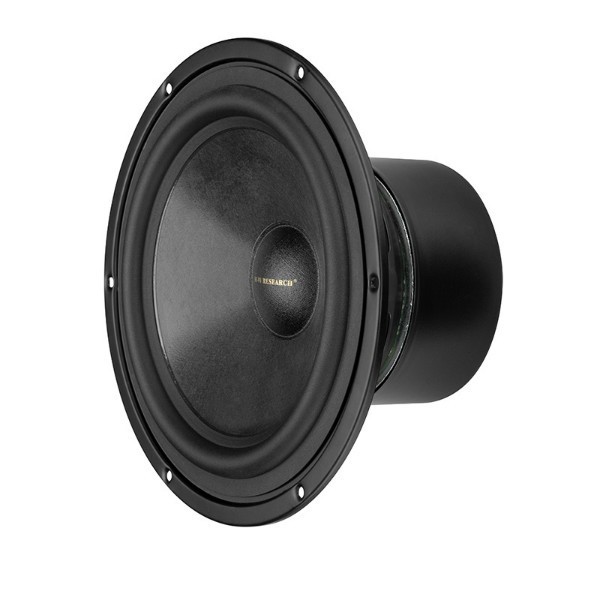

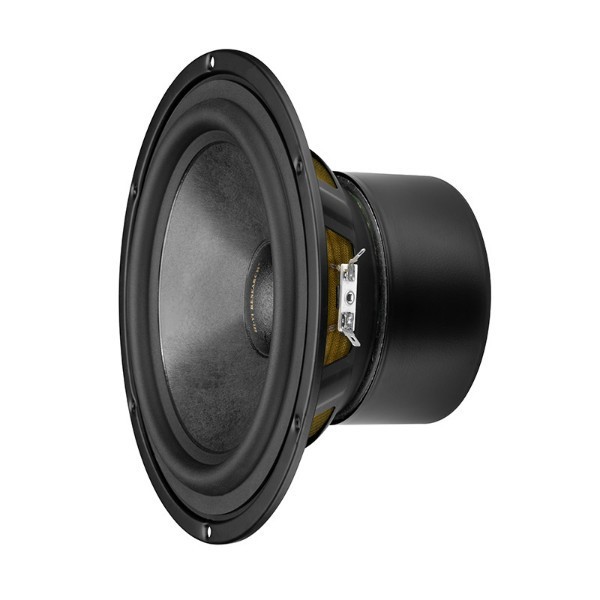

Swan E8N Mid-low range Speaker
$ 63.00
Postage : $0.00
Speaker Driver E Series
Stock: 0

Design Features:

Leading Small/Thiele parameter optimization design;

Black natural fiber ultra-light and high-strength integrated diaphragm;

Fatigue resistance and high loss natural rubber folding ring-strong absorption of excess vibration energy;

Highly stable linear centering support piece-improving the characteristics of air compression;

All-magnet high-performance large magnetic circuit system;

HiVi’s symmetrical magnetic field (SMD) drive technology-high sound pressure distortion output;

High-density aluminum frame-eliminates harmful resonance;

 High-power, high-temperature resistance and no eddy current loss AL voice coil frame-guarantee of high-quality bass.


Voice characteristics:

Naturally accurate, highly analytical, full of vitality and dynamic!

It is suitable for the low frequency unit in the Hi-Fi two-way phase inverted speaker system and the mid-range unit in the three-way system.




Swan E8N Parameters
Parameters Mark Value Unit
Basic application parameters
Rated impedance Z 8 Ω
Resonant frequency Fs 35 Hz
Rated power Pnom 80 W
Maximum power Pmax 160 W
Sensitivity (2.83V/1m) E 89 dB
Weight W 2.71 kg
Voice coil
Voice coil diameter 35 mm
DC Resistance Re 7.2 Ω
Voice coil width H 17.8 mm
Voice coil material  High temperature SV wire
Voice coil bobbin AL
Magnetic circuit
Magnetic circuit type Dual magnetic antimagnetic
Magnet material High performance ferrite
Force coefficient (BL value) BL 10.4 N/A
Magnetic gap height He 8 mm
Maximum Linear Displacement Xmax 4.9 mm
Small/Thiele  Parameters
Consistency Cms 809 uM/N
Mechanical Q Qms 2.46 -
Electric Q value Qes 0.37 -
Total Q Qts 0.33 -
Vibration mass Mms 24.28 g
Equivalent volume Vas 52.5 L
Recommended cabinet parameters
Cabinet type Phase inverted
Recommended net volume of box Vb 28.5 L
Inverter tuning frequency Fb 33 Hz
Cabinet at -3dB frequency in free field F3 36 Hz


Swan E8N Parameters
Parameters Mark Value Unit
Basic application parameters
Rated impedance Z 8 Ω
Resonant frequency Fs 35 Hz
rated power Pnom 80 W
Maximum power Pmax 160 W
Sensitivity (2.83V/1m) E 89 dB
Weight W 2.71 kg
Voice coil
Voice coil diameter 35 mm
DC Resistance Re 7.2 Ω
Voice coil width H 17.8 mm
Voice coil material  High temperature SV wire
Voice coil bobbin AL
Magnetic circuit
Magnetic circuit type Dual magnetic antimagnetic
Magnet material High performance ferrite
Force coefficient (BL value) BL 10.4 N/A
Magnetic gap height He 8 mm
Maximum Linear Displacement Xmax 4.9 mm
Small/Thiele  Parameters
Consistency Cms 809 uM/N
Mechanical Q Qms 2.46 -
Electric Q value Qes 0.37 -
Total Q Qts 0.33 -
Vibration mass Mms 24.28 g
Equivalent volume Vas 52.5 L
Recommended cabinet parameters
Cabinet type Phase inverted
Recommended net volume of box Vb 28.5 L
Inverter tuning frequency Fb 33 Hz
Cabinet at -3dB frequency in free field F3 36 Hz
