| Swans 2.5HT Parameters | |
| Swans 2.5 Front speaker | |
| System： | Four-way fourth-order vented speaker system |
| Speaker driver： |
Professional 15" Bass
Professional 5-inch midrange x4
28mm dome tweeter x16
Isodynamic ribbon tweeterx16
|
| Frequency range： | 22Hz-20kHz |
| Distortion： | 55Hz-20kHz≤1%(2.83V/1m) |
| Sensitivity(2.83V/1m) | 88dB |
| Rated impedance： | 8Ω |
| Power range： | 10W-500W |
| Size(WxDx H) ： | 754x590x1560mm |

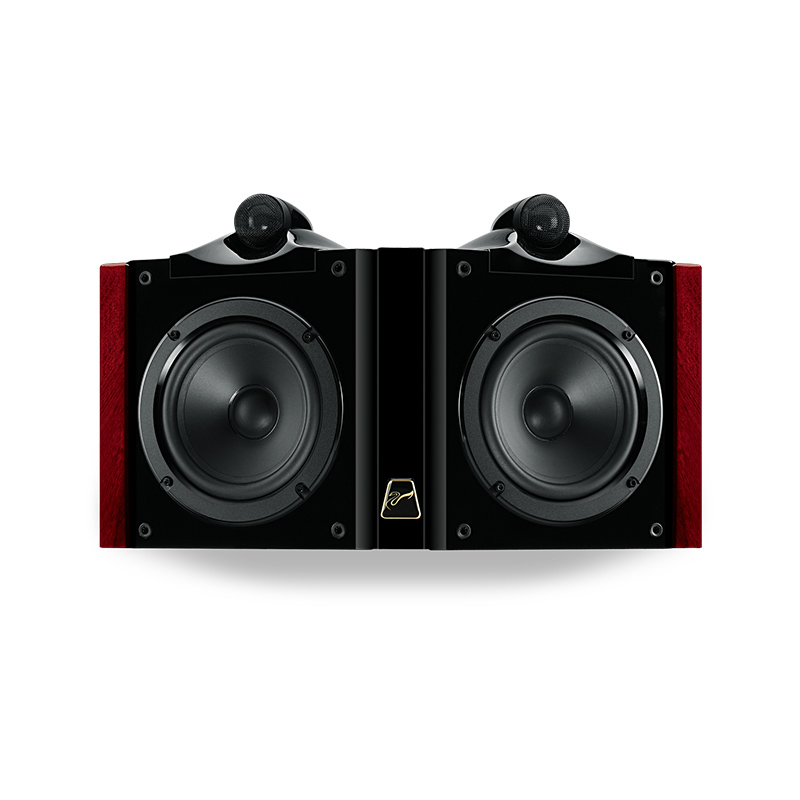

| Swans 2.3C+ Center speaker | |
| System： | 3-way phase inverted speaker system |
| Speaker driver： |
Professional 6.5-inch mid-bass x4
28mm dome tweeter Isodynamic ribbon tweeter× 2 |
| Frequency range： | 40Hz-20kHz |
| Distortion： | 55Hz-20kHz≤1%(2.83V/1m) |
| Sensitivity(2.83V/1m)： | 90dB |
| Rated impedance： | 8Ω |
| Power range： | 10W-320W |
| Size(WxDxH) ： | 1020×341×308mm |
| N.W.(each) ： | 33kg |
| F5R+ Surround speaker | |
| System： | Di-pole Surround speaker |
| Speaker driver： |
Professional 6.5-inch mid-bass × 2
28mm dome tweeter × 2 |
| Frequency range： | 55Hz-20kHz |
| Distortion： | 53Hz-20kHz≤1%(2.83V/1m) |
| Sensitivity(2.83V/1m)： | 87dB |
| Rated impedance： | 8Ω |
| Power range： | 10W-150W |
| Size(WxDxH) ： | 505×290×236mm |
| N.W.(each) ： | 13kg |
| Cabinet finish： | Luxury natural veneer piano paint cabinet with aluminum decorative ring |
