| X5 Parameters | |
| Model： | X5 |
| Audio series: | monitor active electronic crossover speaker system |
| Acoustic system | |
| System form: | Two-way fourth-order inverting system |

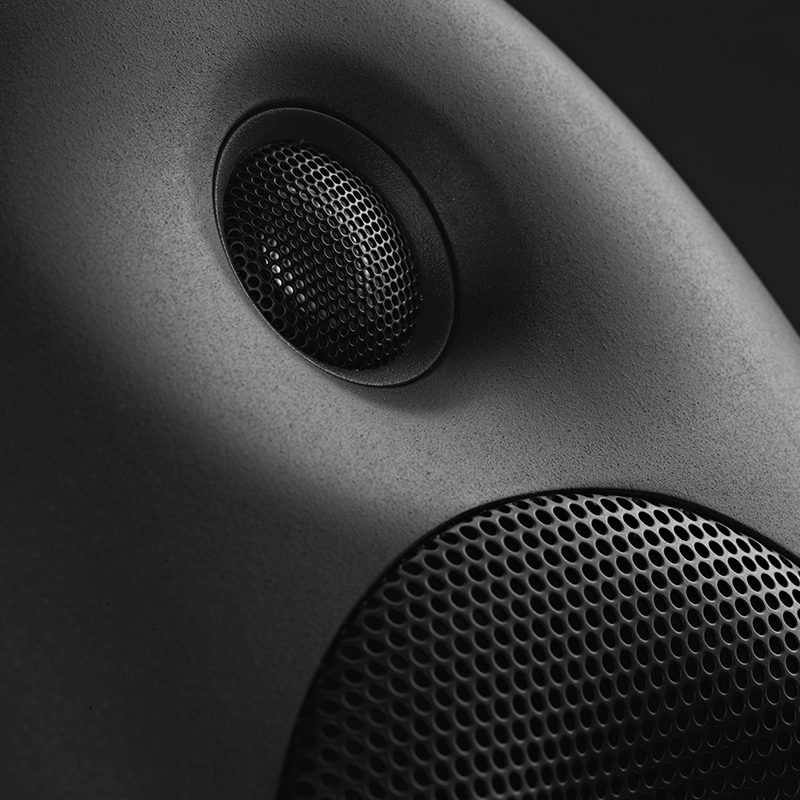

| Unit configuration: | 5-inch mid-bass, 20mm metal hard dome tweeter |
| Frequency Range: | 55Hz-20kHz (±2.5dB, freespace) |
| Distortion: | 65Hz-20kHz≤1%(85dB/1m) |
| Filter type: | Active electronic crossover filter |
| rated power: | Total power per channel 70W |
| Active electronic crossover point: | 2.7kHz |
| Bass adjustment: | +2/0/-2dB(200Hz) |
| Midrange adjustment: | 0/-2/-4dB(500Hz) |
| Treble adjustment: | +1/0/-1dB(10kHz) |
| Low Frequency Cutoff Frequency: | 55Hz/65Hz/75Hz |
| Signal to Noise Ratio: | >94dB(Unweighted) |
| Input sensitivity: | 350mv |
| input resistance: | 12kΩ |
| Input peak: | 3000mV |
| Others | |
| Box appearance: | Painted, high-strength cast aluminum cabinet |
| Size | 189x183x266mm |
| Net weight: | 5.8kg/pcs |
