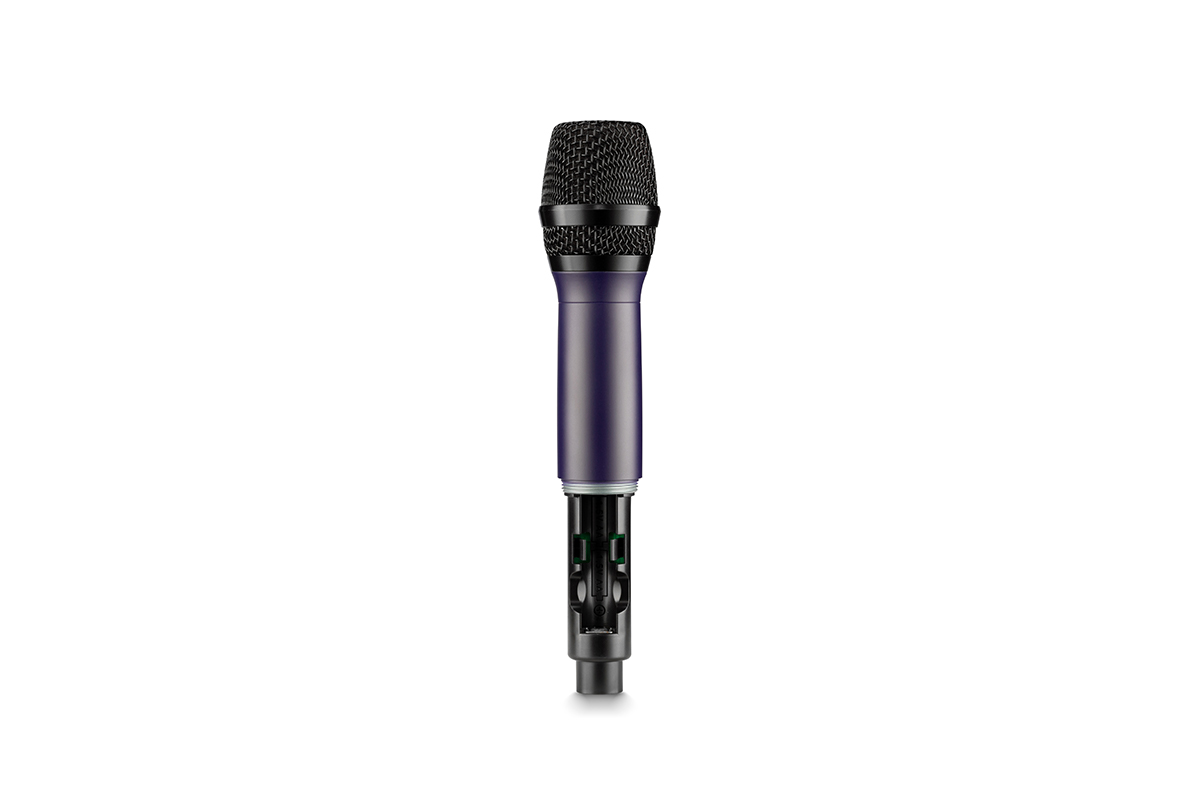

Swan HCS1001H Handheld Wireless Microphone
$ -
Postage : $0.00
Conference System Full-digital wireless conference system
· Product Features
1、Adopt PI/4 DQPSK digital modulation and demodulation technology.
2、 16bit48kHz PCM format audio code.
3、2ms extremely low voice delay.
4、Has an ID code, and the audio without the ID code of the
system is automatically muted.
5、Working time at full power is more than 6h.
6、Two 8-band white and black segment tubes on black
background is clear.
7、With SIR communication function.
8、With battery voltage detection, voltage alarm prompt and
undervoltage automatic shutdown function .
· Technical Parameter
|
Model |
PI/4 DQPSK digital modulation and demodulation |
|
Communication system |
500-900MHz |
|
Pickup Sensitivity |
-70dB±3dB (0dB =1V/ubar at 1KHz) |
|
Audio data |
16bit 48kHz, PCM |
|
Audio frequency response |
30Hz-20KHz |
|
Audio delay |
2.5ms |
|
Battery |
2 AA dry batteries |
|
Communication distance |
Outdoor (barrier-free) maximum 140 meters, indoor maximum 80 meters (barrier-free) |
|
Full power standby time |
≧40H |
|
Full power working time |
≧6H |
|
Dimensions (L*W) |
Length 245mm, maximum diameter 53mm |
|
Weight |
0.23kg |
· Set content comparison
|
Model |
Name |
Package microphone content |
|
HCS1001-D4/HCS1001-D8 |
Wireless desktop one-to-four/8 sets |
HCS 1000 host ×1 HCS 1001D ×4/8 Microphone ×4/8 |
|
HCS1001-H4/HCS1001-H8 |
wireless handheld one-to-four/8 sets |
HCS 1000 host ×1 HCS 1001H ×4/8 Microphone ×4/8 |
