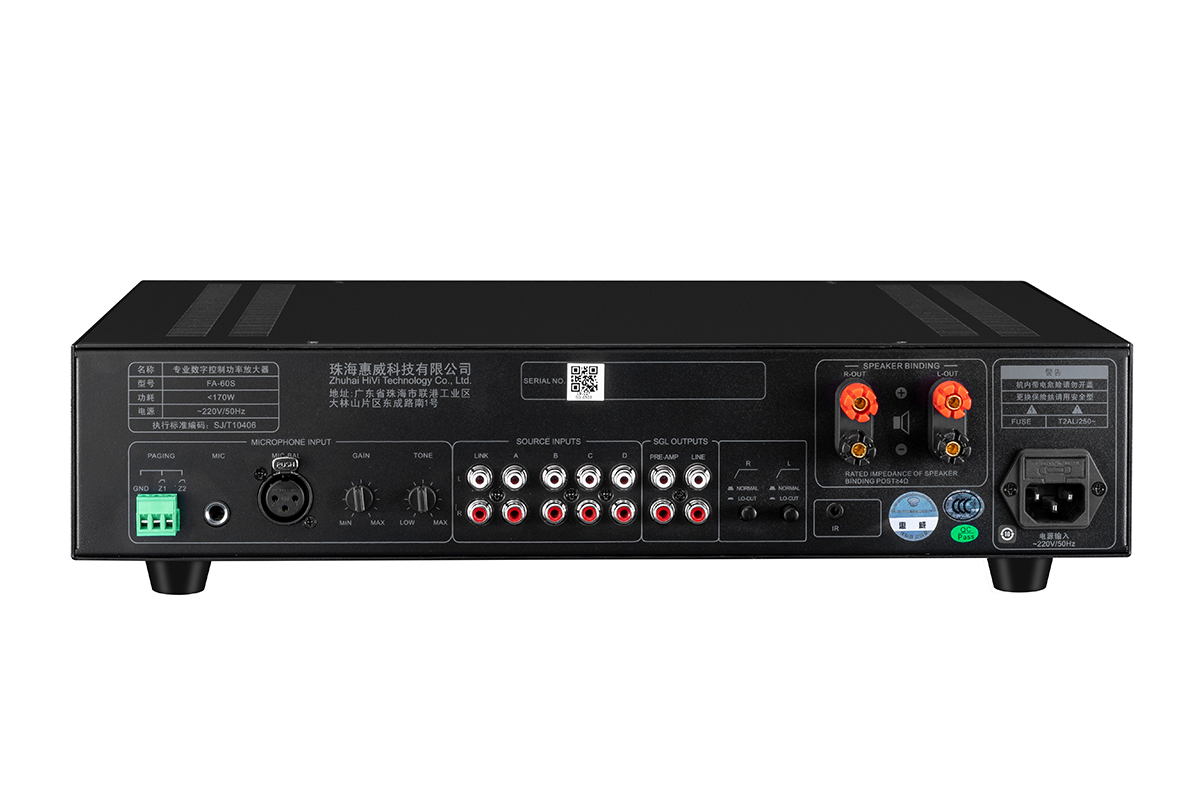

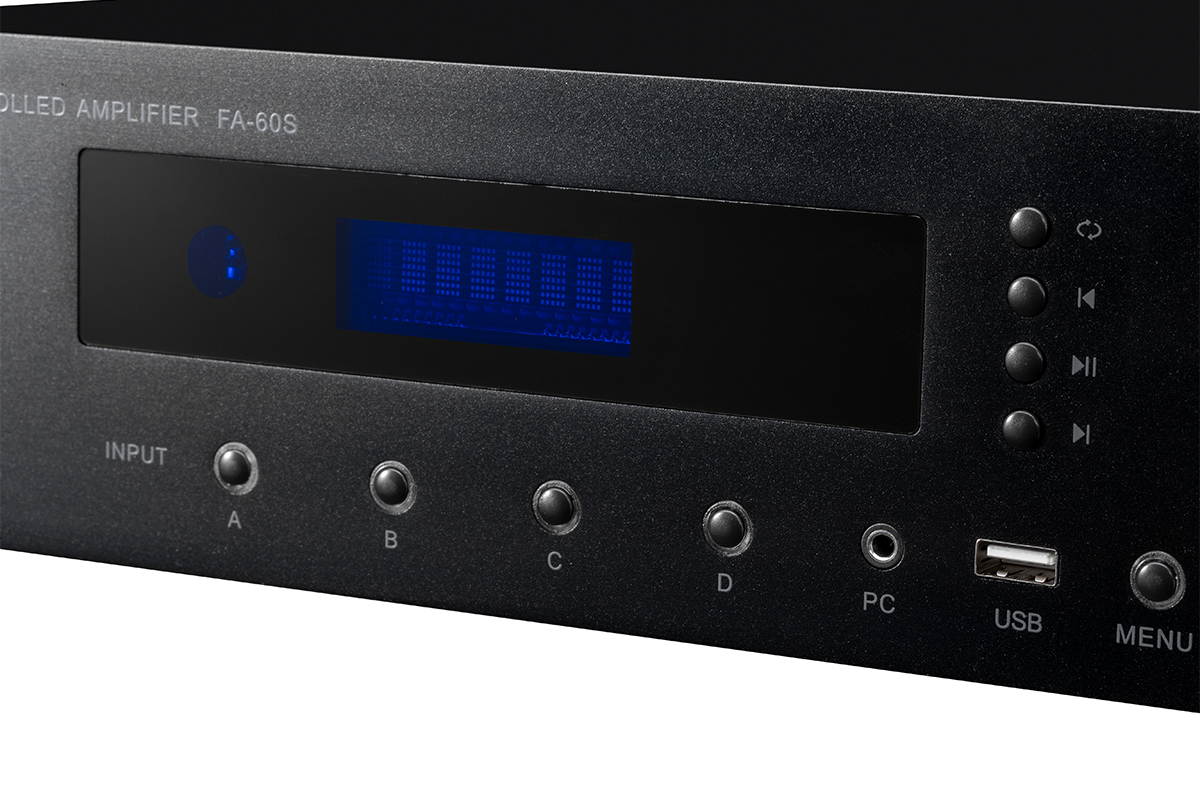

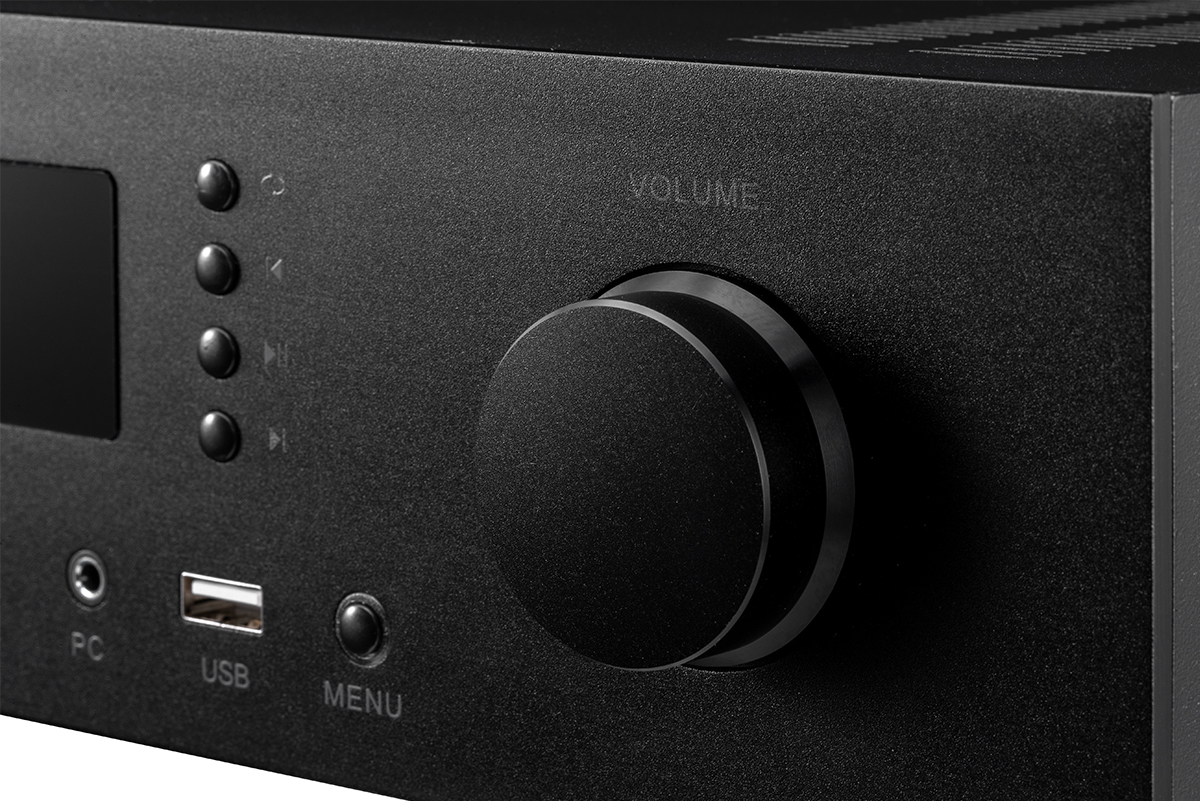

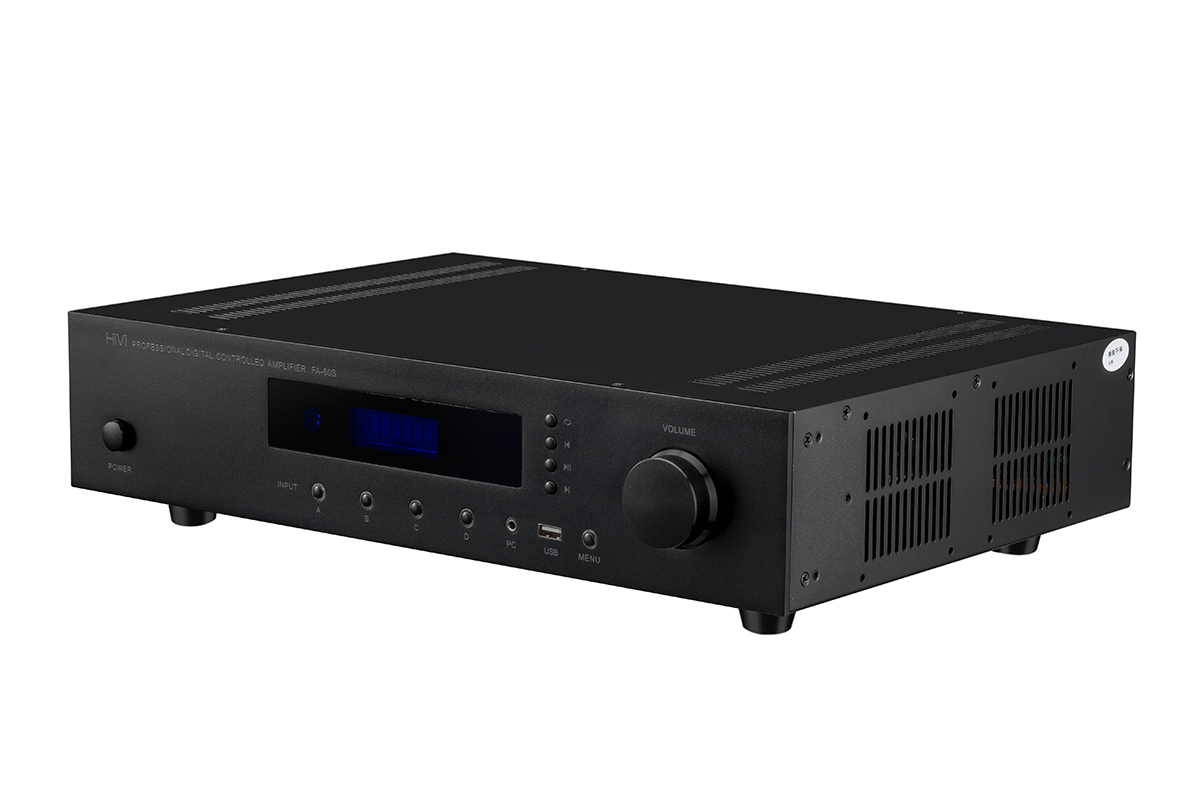

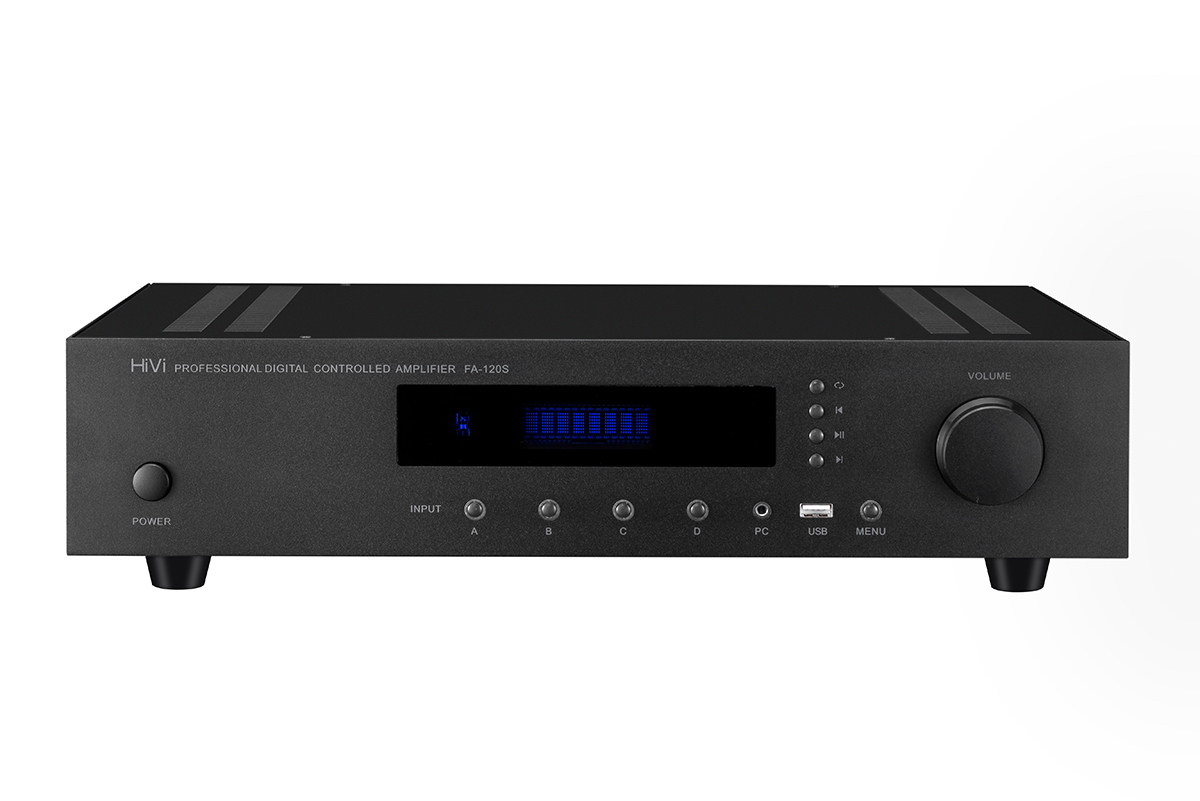

Swan FA Series Professional Audio Power Amplifier FA-60S/FA-120S
$ -
Postage : $0.00
Public Broadcasting Commercial & background system Conference System Conference sound reinforcement system Professional Amplifier Series Business background power amplifier
Stock:
0
Feature of product
Simple operation, professional and efficient, stylish appearance, flexible installation, can work safely and continuously for a long time
Adaptation
Various high-end private places, Chinese and Western restaurants, high-end fashion stores, high-end private residences, leisure clubs, beauty centers, high-end gyms, various small conference systems, etc.
Applicable venue
In a relatively quiet environment indoors. Mainly suitable for all kinds of music, background music and voice systems.
Simple operation, professional and efficient, stylish appearance, flexible installation, can work safely and continuously for a long time
Adaptation
Various high-end private places, Chinese and Western restaurants, high-end fashion stores, high-end private residences, leisure clubs, beauty centers, high-end gyms, various small conference systems, etc.
Applicable venue
In a relatively quiet environment indoors. Mainly suitable for all kinds of music, background music and voice systems.
Technical parameter
Overall gain
Model
FA-60S
FA-120S
Output
Power
≥60W(4Ω)
≥120W(4Ω)
SNR
Music>80dB
(A-weighted);
Microphone>55dB (A-weighted)
(GAIN maximum, minimum hour)
Music>85dB
(A-weighted);
Microphone>60dB (A-weighted)
(GAIN maximum, minimum hour)
Minimum
source EMF
Music: <400mV;
Microphone <7mW/<420mV (minimum, maximum)
Music: <800mV;
Microphone <7mW/<700mV (minimum, maximum)
Degree of
separation
>60dB
>70dB
Gain
limited frequency range
Music:
20Hz-30kHz/l00Hz-30kHz(+l/-3dB);
Microphone: 150HZ-12kHz/100Hz-l 2kHz(+l/-3dB)
Total harmonic distortion
Music: <0.1%; Microphone: <0.5%
Music: >32dB; Microphone: >70/30dB
Power consumption
<185W
<500W
