Swan CL Series Cross curvature Array Speakers
$ -
Postage : $0.00
Pro Audio Line array CL series line array speaker
Stock:
0
Product Description

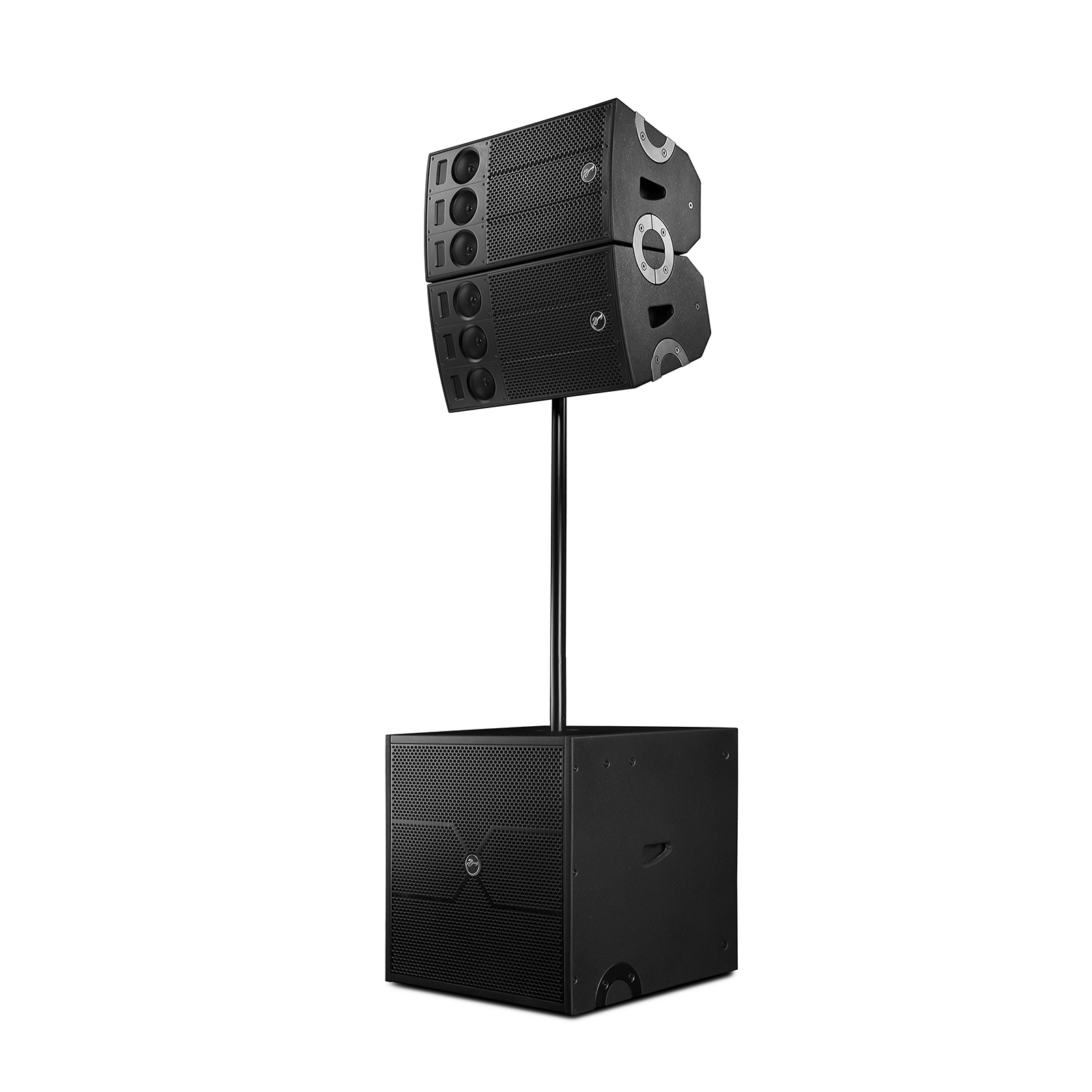

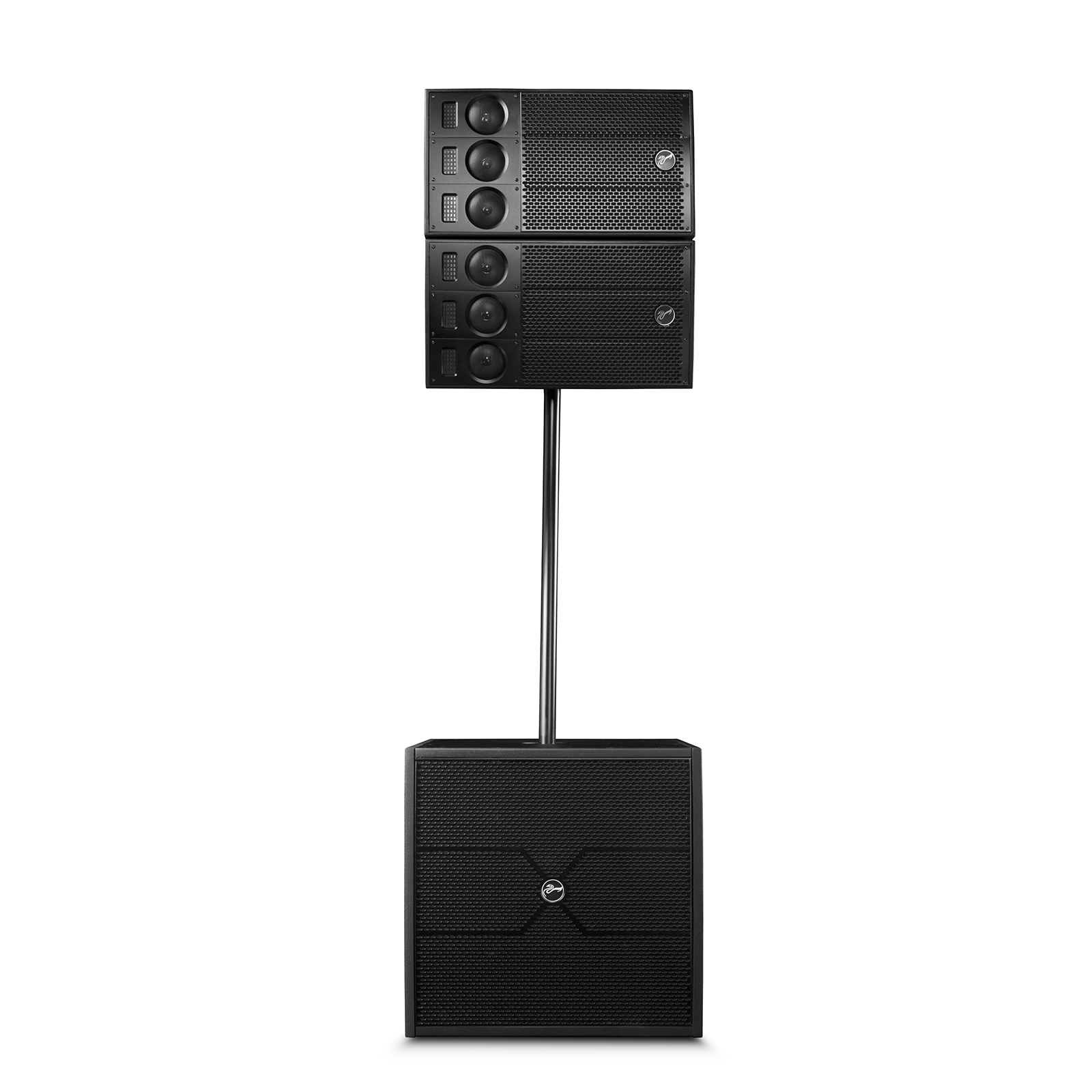

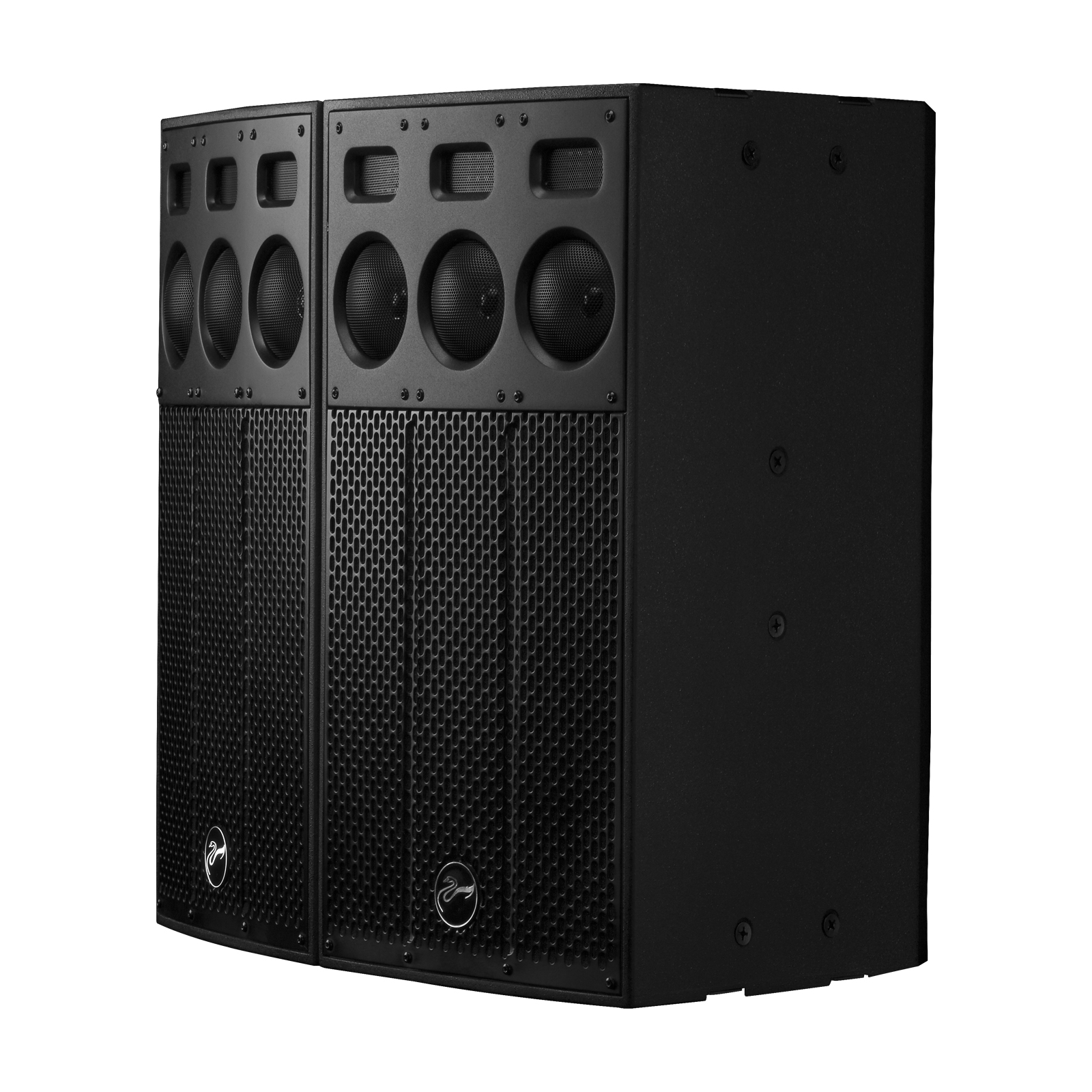

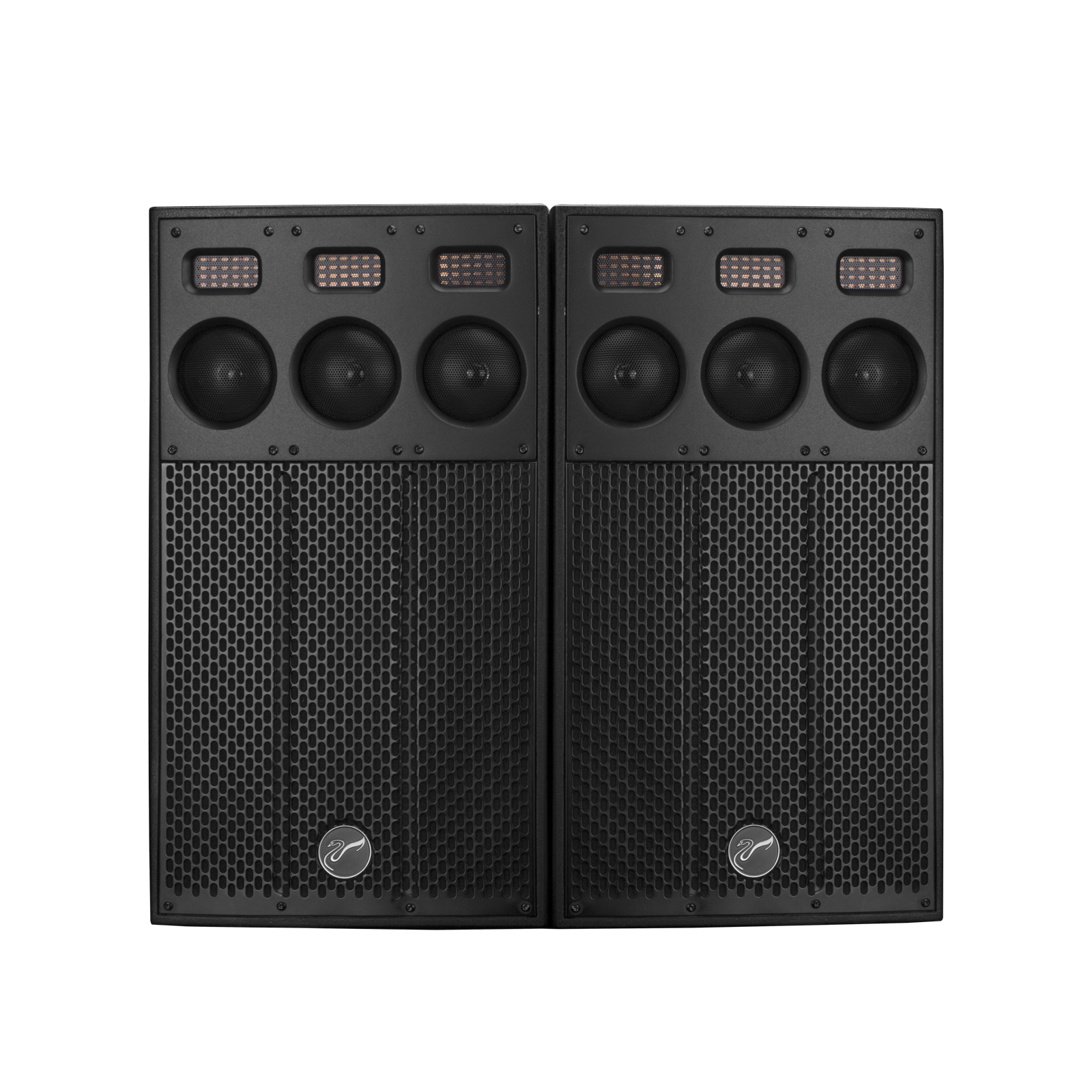

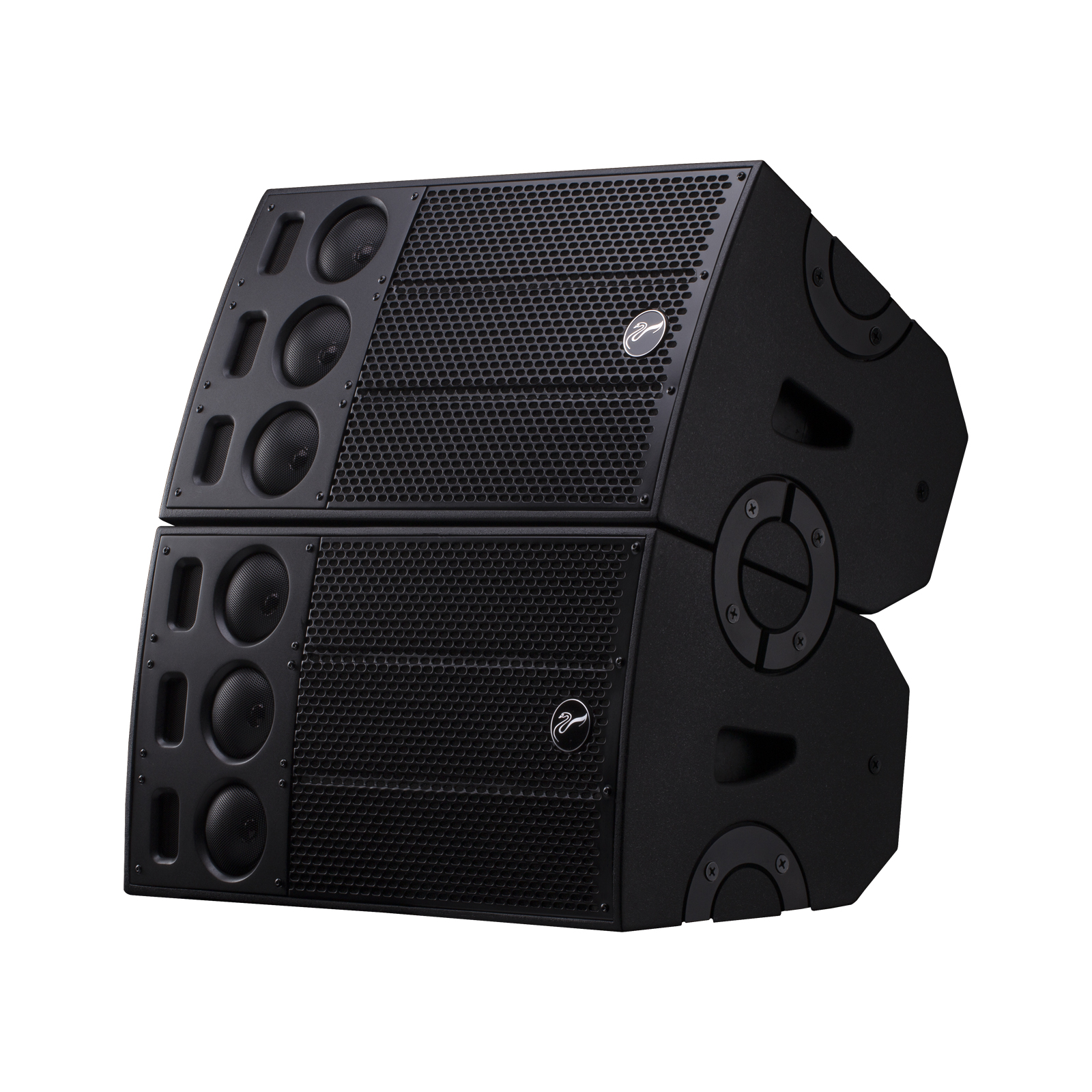

CL1000 is a professional three-way constant curvature array full-range speaker, designed for professional sound reinforcement occasions such as conferences, multi-purpose halls and light bars. Adopt HiVi patented belt-type super high-pitched, array-type line sound source mid-high-pitched combination, with built-in professional electro-acoustic technology optimized crossover network, the sound is clear and dynamic. With the CL1000S subwoofer, it can be combined into a professional four-way sound reinforcement system, and the low frequency is more powerful. The speaker is equipped with a patented ring-shaped hanging device, which can be easily and flexibly formed into a horizontal or vertical array.|
|
||
| Product Parameters | ||
| Model | CL1000 | CL1000S |
|
Frequency range |
55Hz-20kHz |
38Hz-180Hz |
| Rated power |
250W（continual） 500W（program signal） 1000W（peak） |
400W（continual） 800W（program signal） 1600W（peak） |
| Sensitivity | 96dB(1W/1m) | 98dB(1W/1m) |
| Max SPL |
120dB（continual） 126dB（peak） |
124dB（continual） 130dB（peak） |
| Rated impedance | 12Ω | 4Ω |
| Coverage angle | 90°×15° | Full directive |
| Woofer | 1×10"(65mm voice coil) | 2×12"(75mm voice coil) |
| Mid-nass | 3×3"(cone tweeter) |
|
| Tweeter | 3×2.5"(ribbon tweeter) |
|
| Dimension | 550×306×344mm | 550×530×540mm |
| N.W.(±10%) | 17.5Kg | 37Kg |
|
Product size |
||
 |
||
