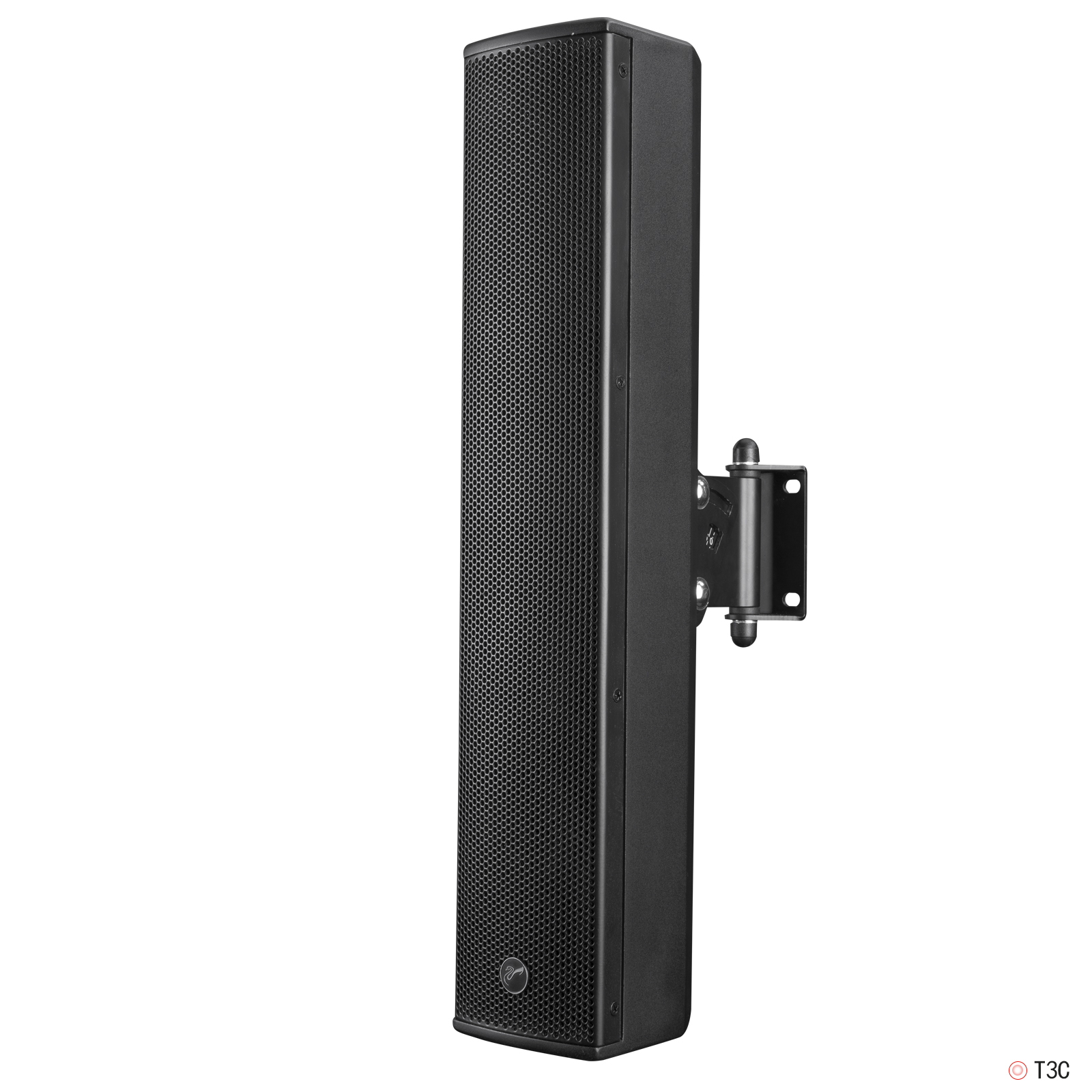

Swan T3C/T3C+/T3Plus Column Speaker
$ -
Postage : $0.00
Model
Pro Audio Line array T3 series Line array speaker
Stock: 0
T3C is a professional two-way line sound source sound reinforcement speaker, designed for sound reinforcement occasions such as conference multi-purpose halls. T3C+ series is a professional line sound source sound reinforcement speaker system, designed for conferences, multi-purpose halls and other sound reinforcement occasions.

T3C and T3C+ both use Hivi wide horizontal pointing treble, array type line sound source speaker combination, with built-in professional electro-acoustic technology optimized frequency division network, the vertical ceiling and ground sound reflection is small, the sound reproduction is clear, and the dynamic is strong.

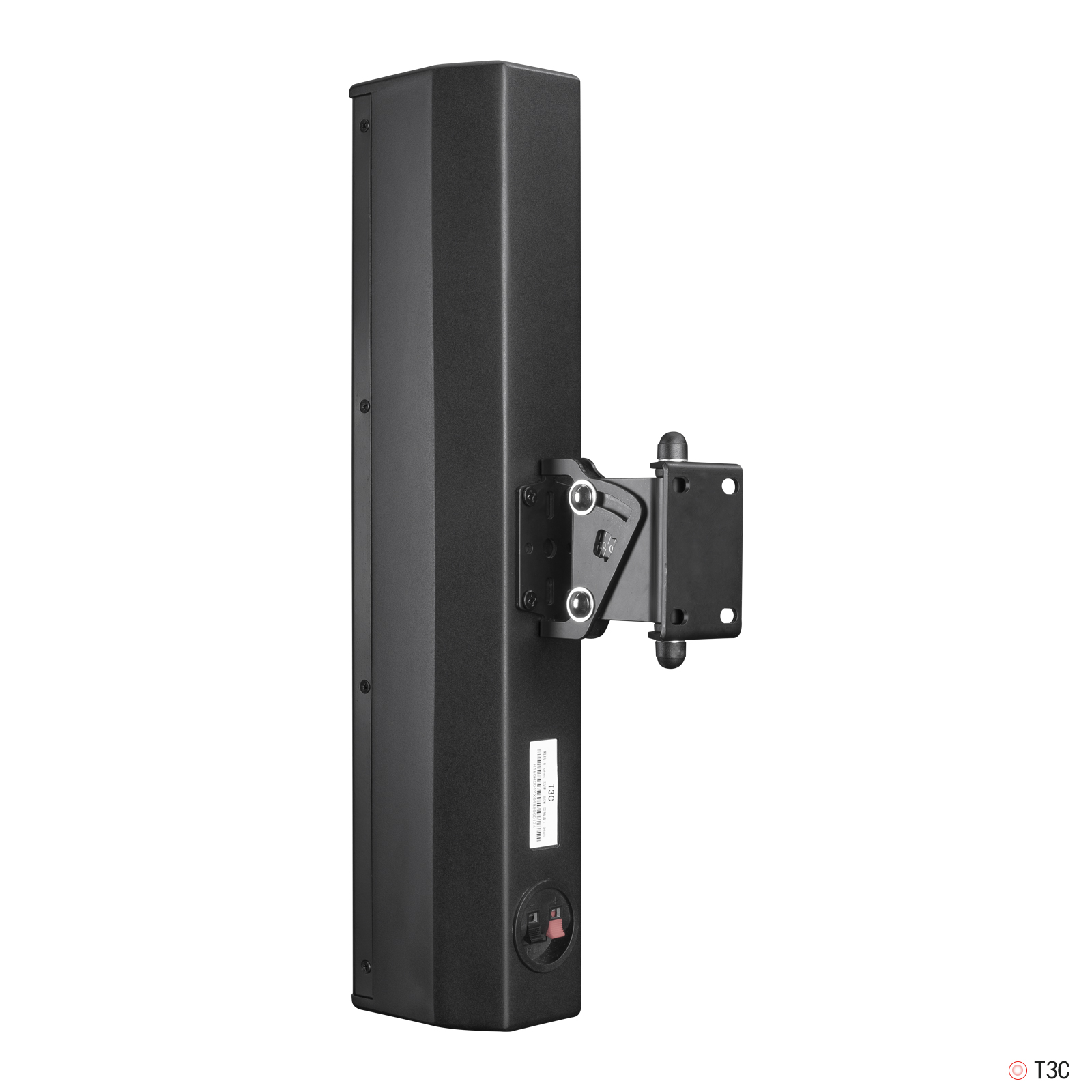

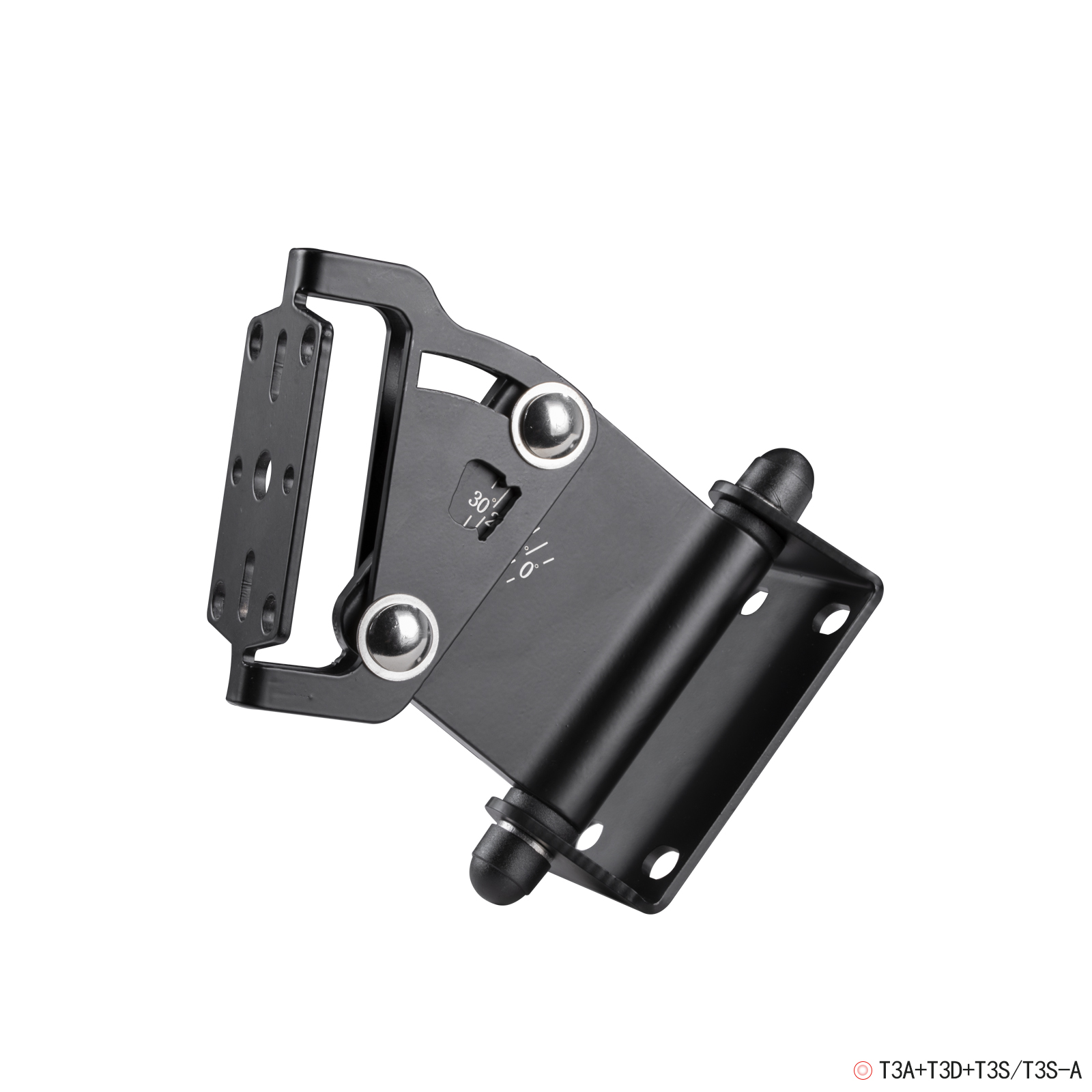

The T3C wall mount adopts the wall mount bracket GM1, which can flexibly adjust the horizontal and vertical angles. The wall mount bracket HiVi GM1 is optional.

Product Parameters

Model

T3C

T3C+

T3Plus

Frequency range

120Hz-20KHz

120Hz-20KHz

120Hz-20KHz



Rated input power

80W(continual)

160W(program signal)

320W(peak)

100W(continual)

200W(program signal)

400W(peak)

200W(continual)

400W(program signal)

800W(peak)

Sensitivity

94dB(1W/1m)

94dB(1W/1m)

100dB(1W/1m)

Max SPL

113dB(continual)

119dB(peak

114dB(continual)

120dB(peak)

123dB(continual)

129dB(peak)

Rated impedance

Ω

Coverage angle(HxV)

90°x30°

Woofer

4x3"(25mm voice coil)

4x3"(25mm voice coil)

4x4"(25mm voice coil)

Tweeter

1x3" cone

Input connection

Red black wire clap

Install

Wall-hanged

Wall-hanged, support

Wall-hanged, support

Dimension(WxHxD)

108x560x120mm

108x560x135mm

125x700x145mm

N.W(±10%)

2.7 KG

3.35KG

5.4KG

Product Size
