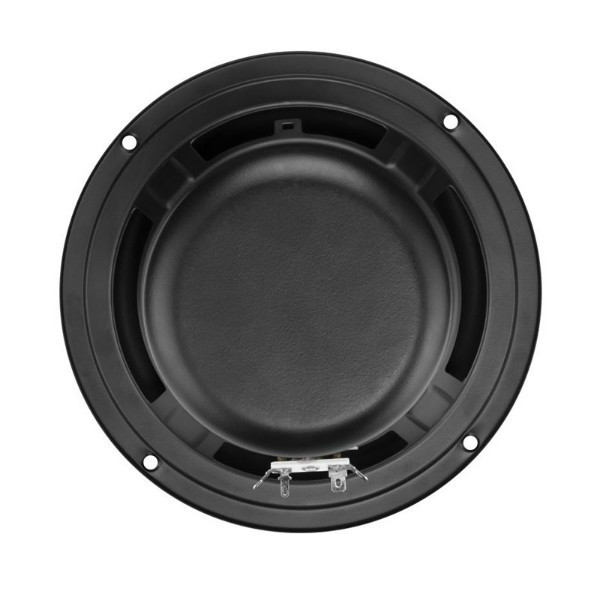

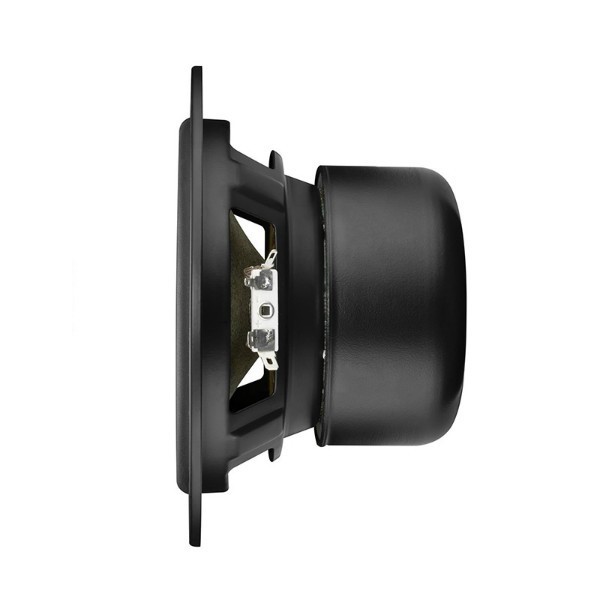

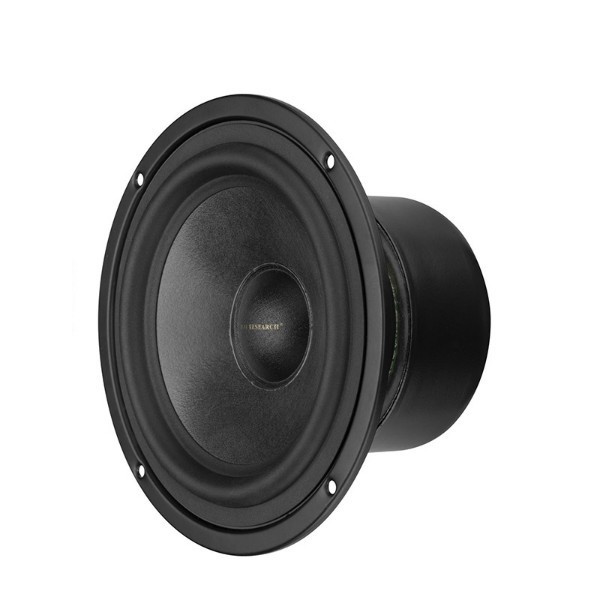

Swan E6.5N Mid-low range speaker
$ 57.00
Postage : $0.00
Speaker Driver E Series
Design Features:
Leading Small/Thiele parameter optimization design technology-convenient cabinet design! Black natural fiber ultra-light and high-strength integrated diaphragm-natural and accurate sound / fatigue resistance and high loss natural rubber folding ring-strong absorption of excess vibration energy / high permeability Highly stable linear centering support piece-improving the characteristics of air compression along with the state/all-magnet high-performance large magnetic circuit system-power surging linear drive source/Hvi’s symmetrical magnetic field (SMD) drive technology-high sound pressure distortion output/limited Yuan precision computer simulation design integrated high-density aluminum frame-eliminates harmful resonance / high-power, high-temperature resistance and no eddy current loss AL voice coil frame-guarantee of high-quality bass.
Voice characteristics:
Naturally accurate, highly analytical, full of vitality and dynamic!
Leading Small/Thiele parameter optimization design technology-convenient cabinet design! Black natural fiber ultra-light and high-strength integrated diaphragm-natural and accurate sound / fatigue resistance and high loss natural rubber folding ring-strong absorption of excess vibration energy / high permeability Highly stable linear centering support piece-improving the characteristics of air compression along with the state/all-magnet high-performance large magnetic circuit system-power surging linear drive source/Hvi’s symmetrical magnetic field (SMD) drive technology-high sound pressure distortion output/limited Yuan precision computer simulation design integrated high-density aluminum frame-eliminates harmful resonance / high-power, high-temperature resistance and no eddy current loss AL voice coil frame-guarantee of high-quality bass.
Voice characteristics:
Naturally accurate, highly analytical, full of vitality and dynamic!
It is suitable for the low frequency unit in the Hi-Fi two-way phase inverted speaker system and the midrange unit in the three-way system.
| Swan E6.5N Parameters | |||
| Parameters | Mark | Value | Unit |
| Basic application parameters | |||
| Rated impedance | Z | 8 | Ω |
| Resonant frequency | Fs | 43 | Hz |
| Rated power | Pnom | 60 | W |
| Maximum power | Pmax | 120 | W |
| Sensitivity (2.83V/1m) | E | 88 | dB |
| Weight | W | 1.78 | kg |
| Voice coil | |||
| Voice coil diameter | ∅ | 25 | mm |
| DC Resistance | Re | 6.5 | Ω |
| Voice coil width | H | 14.5 | mm |
| Voice coil material | High temperature SV wire | ||
| Voice coil bobbin | AL | ||
| Magnetic circuit | |||
| Magnetic circuit type | Dual magnetic antimagnetic | ||
| Magnet material | High performance ferrite | ||
| Force coefficient (BL value) | BL | 7.14 | N/A |
| Magnetic gap height | He | 6 | mm |
| Maximum Linear Displacement | Xmax | 4.25 | mm |
| Small/Thiele Parameters | |||
| Consistency | Cms | 894.9 | uM/N |
| Mechanical Q | Qms | 1.96 | - |
| Electric Q value | Qes | 0.51 | - |
| Total Q | Qts | 0.4 | - |
| Vibration mass | Mms | 14.7 | g |
| Equivalent volume | Vas | 21 | L |
| Recommended cabinet parameters | |||
| Cabinet type | Phase inverted | ||
| Recommended net volume of box | Vb | 16.2 | L |
| Inverter tuning frequency | Fb | 51 | Hz |
| Cabinet at -3dB frequency in free field | F3 | 48 | Hz |
| Swan E6.5N Parameters | |||
| Parameters | Mark | Value | Unit |
| Basic application parameters | |||
| Rated impedance | Z | 8 | Ω |
| Resonant frequency | Fs | 43 | Hz |
| Rated power | Pnom | 60 | W |
| Maximum power | Pmax | 120 | W |
| Sensitivity (2.83V/1m) | E | 88 | dB |
| Weight | W | 1.78 | kg |
| Voice coil | |||
| Voice coil diameter | ∅ | 25 | mm |
| DC Resistance | Re | 6.5 | Ω |
| Voice coil width | H | 14.5 | mm |
| Voice coil material | High temperature SV wire | ||
| Voice coil bobbin | AL | ||
| Magnetic circuit | |||
| Magnetic circuit type | Dual magnetic antimagnetic | ||
| Magnet material | High performance ferrite | ||
| Force coefficient (BL value) | BL | 7.14 | N/A |
| Magnetic gap height | He | 6 | mm |
| Maximum Linear Displacement | Xmax | 4.25 | mm |
| Small/Thiele Parameters | |||
| Consistency | Cms | 894.9 | uM/N |
| Mechanical Q | Qms | 1.96 | - |
| Electric Q value | Qes | 0.51 | - |
| Total Q | Qts | 0.4 | - |
| Vibration mass | Mms | 14.7 | g |
| Equivalent volume | Vas | 21 | L |
| Recommended cabinet parameters | |||
| Cabinet type | Phase inverted | ||
| Recommended net volume of box | Vb | 16.2 | L |
| Inverter tuning frequency | Fb | 51 | Hz |
| Cabinet at -3dB frequency in free field | F3 | 48 | Hz |
