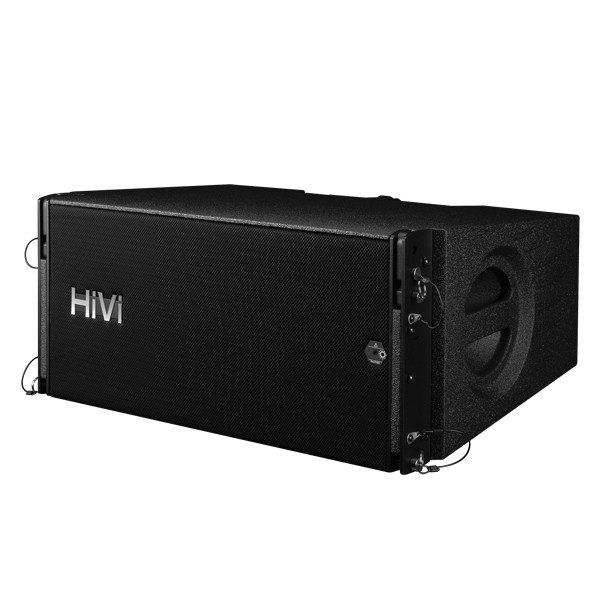

Swan WRL22+WRL22S Line array speaker
$ -
Postage : $0.00
Model
Pro Audio Line array WR Remote waterproof line array speaker
Stock: 0

Product Introduction

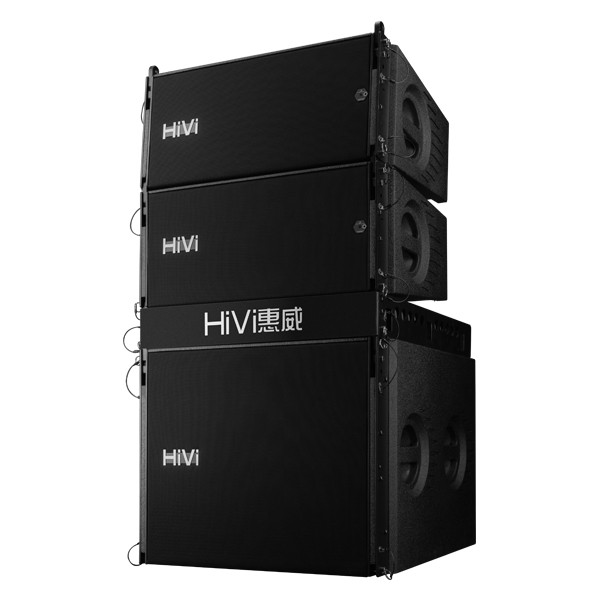

WR series is a new waterproof shower array external crossover speaker system introduced by HiVi  Company. It is designed according to IPX6 international waterproof grade standard, and can meet professional sound reinforcement requirements in unexpected rainy weather and various harsh environments with high water density. WR series corrects the wave front to make it close to the plane wave transmission, thus solving the problem of long-distance transmission. Through the special hanging system, many speakers can be quickly connected to form a good vertical coverage line sound source, which has good directivity, high continuous sound pressure level, large dynamic and good transient. With its WR ultra-low frequency speakers, the ideal external frequency division combination configuration can achieve good sound reinforcement effect. This system is especially suitable for all kinds of indoor and outdoor gymnasiums, great halls, auditoriums, theatres, performance halls, multi-functional conference rooms and other sound reinforcement requirements; It is equipped with special hangers, bolts, all kinds of connectors and automatic positioning devices of the patented sound reinforcement pointing area.

Parameters

Model

WRL22

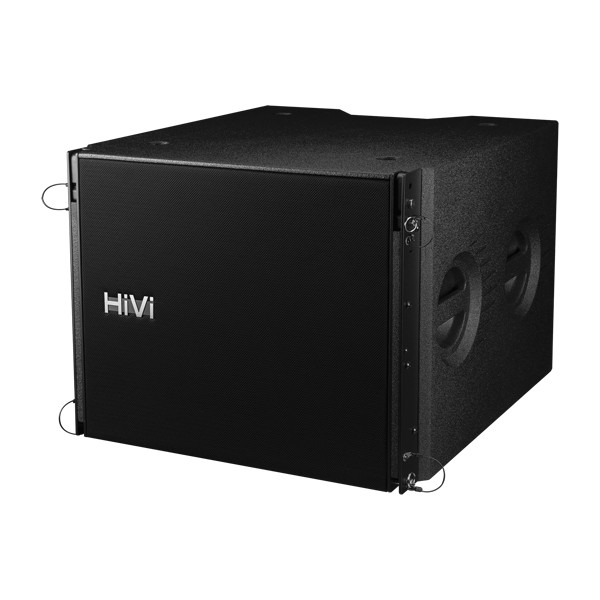

WRL22S

Type

External 3-way system

Subwoofer

Frequency range

LF60HZ-3KHz

MF60HZ-3KHz

HF1KHz-22KHz

30Hz-250Hz

Rated power

LF350W

MF350W

HF150W

800W

Sensitivity

LF100dB

MF100dB

HF112dB

100dB

Max SPL(Peak)

LF131dB

MF131dB

HF140dB

137dB

Rated impedance

LF16Ω

MF16Ω

HF16Ω

8Ω

Speaker driver configuration

LF1*10(65mm Voice coil) neodymium magnet

MF :1*10(65mm Voice coil) neodymium magnet

HF :1*2.6(65mm Voice coil) neodymium magnet

1*18(100mm Voice coil) neodymium magnet

Input connection

LF1+2-

MF3+4-

HF5+6-

1+2-

Directive system

Laser pointing input 3+, 4- (optional)

/

Hanging system

Special array hanging system

Special array hanging system

Coverage angle(H×V

90°×10°

/

Front protection

Black hardened steel mesh (waterproof mesh)

Black hardened steel mesh (waterproof mesh)

Cabinet material

Birch plywood

Birch plywood

Finish

Environment-friendly black polyurea waterproof paint

Environment-friendly black polyurea waterproof paint

Install

Hanging and stacking

Hanging and stacking

Size(mm)(W×H×D

860×303×470

860×555×730

N.W.(±10%)

35KG

68KG

Instructions for laser pointing and positioning in sound reinforcement area
1. First, make sure that the power amplifier is properly connected to the port of 8-core waterproof speaker base (3+, 4-). When a low-voltage 15KHz sine wave signal is input, a slight high-frequency sound of the woofer will be heard. Then, continue to slowly increase the input signal voltage until the laser light outlet on the front of the speaker emits a stable beam, and the projection position of the beam is the sound reinforcement pointing area of the speaker. Note: When using this function, please mute the ports of (1+, 2-) and (5+, 6-) to prevent the horn from burning out. 2. Schematic diagram of laser beam positioning, as shown in the figure. Note: This pointing system is optional. Please make sure the speaker has this function before using it.

Product Size



Install
