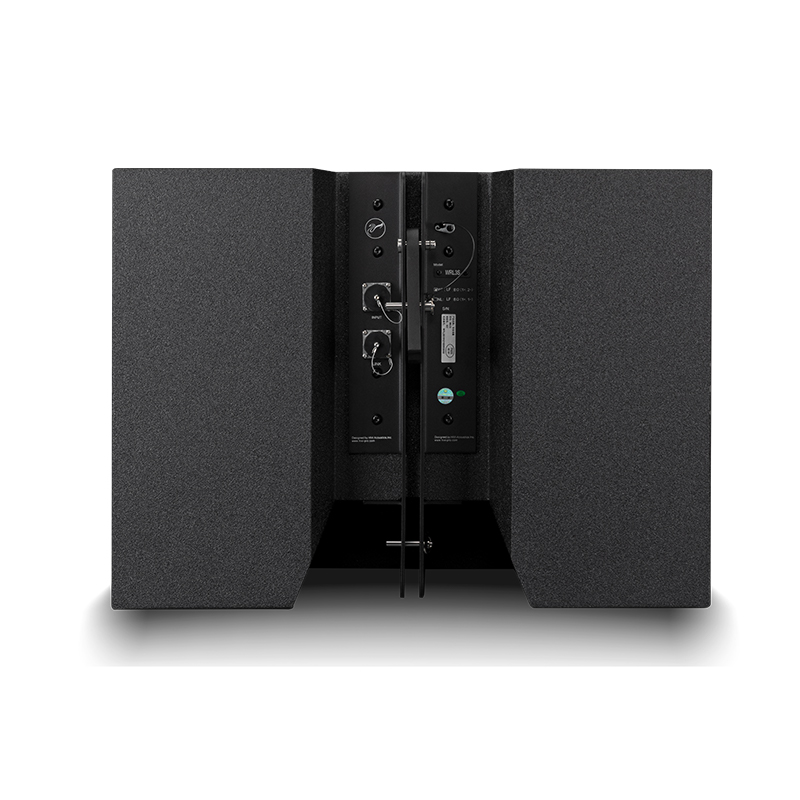

Product Description |
||
|
WR series is a new waterproof shower line array external frequency crossover speaker system launched by Swan. It is designed in accordance with the IPX6 international waterproof level standard and can meet the needs of professional sound reinforcement in unexpected rainy weather and various harsh environments with high water density. need. The WR series corrects the wave front to make it close to the plane wave transmission, so as to solve the problem of long-distance transmission. Through the special hanging system, multiple speakers can be quickly matched and connected to form a good vertical coverage surface line sound source. It has good directivity, high continuous sound pressure level, high dynamics and good transient state. It can achieve good sound reinforcement effect with its WR subwoofer and ideal external frequency division combination configuration.
This system is especially suitable for various indoor and outdoor gymnasiums, assembly halls, auditoriums, theaters, performance halls, multi-functional conference rooms and other sound reinforcement needs; and is equipped with special hangers, plugs, various connectors and patented sound reinforcement pointing areas automatic positioning device, etc.
|
||
| Technical Parameters | ||
|
Model |
WRL3 |
WRL3S |
|
Type |
External 2-way speaker system |
Subwoofer |
|
Frequency range |
LF：50Hz-3KHz HF：1KHz-22KHz |
30Hz-250Hz |
|
Rated power |
LF：450W HF：150W |
800W |
|
Sensitivity |
LF：100dB HF：112dB |
100dB |
|
Max SPL(Peak) |
LF：133dB HF：140dB |
137dB |
|
Rated impedance |
LF：16Ω HF：16Ω |
8Ω |
|
Speaker driver configuration |
LF：1*12”(75mm voice coil)Neodymium magnet HF :1*2.6”(65mmvoice coi)Neodymium magnet |
1*18”(100mm voice coil)iron magnet |
|
Input connection |
LF（1+，2-） HF（3+，4-） |
（1+，2-） |
|
Directive system |
Laser point input 1+, 2- (optional accessory) |
/ |
|
Hanging system |
Dedicated array suspension system |
Dedicated array suspension system |
|
Coverage angle（H×V） |
90°×7° |
/ |
|
Front protection |
Black hardened steel mesh (waterproof mesh) |
Black hardened steel mesh (waterproof mesh) |
|
Cabinet material |
birch plywood |
birch plywood |
|
Cabinet surface |
Environmentally friendly wear-resistant black polyurea waterproof paint |
Environmentally friendly wear-resistant black polyurea waterproof paint |
|
Install |
Hanging, stacking |
Hanging, stacking |
|
Size（mm）（W×H×D） |
750×366×583 |
750×555×780 |
|
N.W.(±10%) |
37.5KG |
66KG |
|
Size and structure demonstration |
||
|
Instructions for laser pointing and positioning in the sound reinforcement area |
||
|
1. First make sure that the power amplifier and the 8-pin waterproof speaker stand (1+, 2-) are connected correctly, input a low-voltage 15KHz sine wave signal, you will hear the slight high-frequency sound of the woofer, and then continue to slowly increase the input signal Voltage until the laser light outlet on the front of the speaker emits a stable beam, and the projection position of the beam is the sound reinforcement pointing area of the speaker.
Note: When using this function, please mute the ports (3+, 4-) to prevent the speakers from being burned.
2. Schematic diagram of laser beam positioning, as shown in the figure.
Note: This pointing system is an optional accessory, please make sure that the speaker has this function before using it.
|
||
|
Assembly instructions |
||
|
|
||
|
Install instruction |
||
|
|
