Swan Swan CK8 Movie decoder
$ -
Postage : $0.00
Pro Audio Peripheral equipment
Stock: 0

·Product description



This machine is a professional audio processing equipment based on an all-digital DSP audio processing platform. It is powerful in function and compact in size. functions in one. 2U rack height, easy to use and flexible configuration, can be widely used in various professional entertainment venues such as mid-to-high-end performance halls and KTV private rooms and home karaoke venues, and easily achieve the perfect combination of singing in the theater.

Features:

▼5-inch 65.5K pixel color LCD screen, optional in Chinese and English, simple and intuitive;

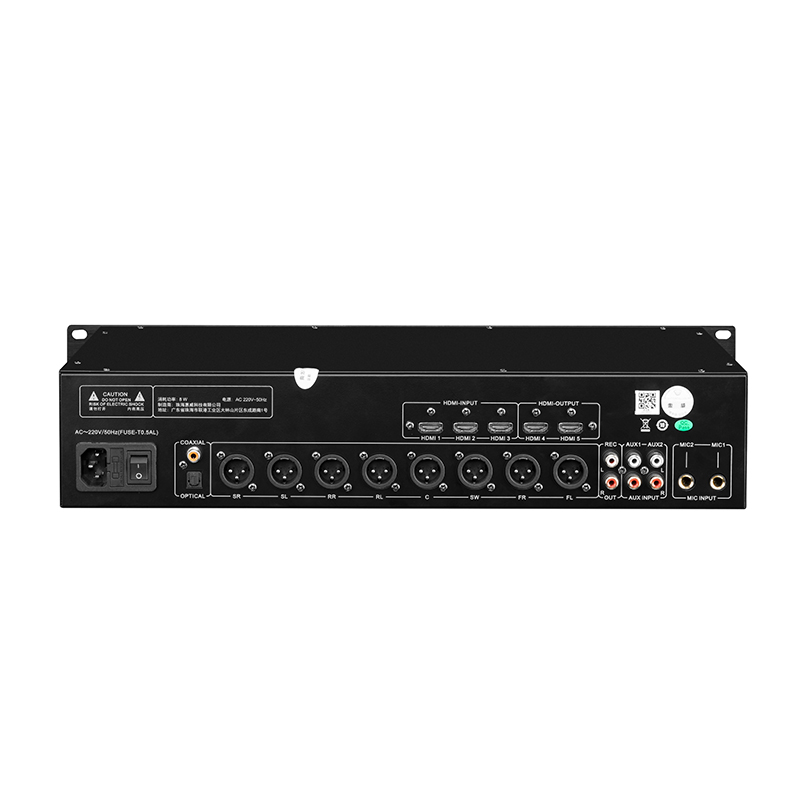

▼3 input and 2 output HDMI audio and video interface, support optical fiber and coaxial audio digital input;

▼Fully support 7.1 channel cinema decoding function, 7.1 channel balanced output;

▼Music 16-segment parametric equalization, microphone AB channel independent 16-segment parametric equalization;

▼Professional KTV reverberation effect, independent 3-band equalization adjustment for echo and reverberation, 4-level feedback suppression control for microphones, and worry-free anti-whistling;

▼Main output, center, bass, surround, and rear channels are respectively equipped with 5-band parametric equalization (PEQ), electronic crossover, input selection and mixing ratio, polarity, delay, limiter, gain function;

▼Adopt imported ADI DSP chip, 400MHz main frequency, 48KHz sampling frequency 32-bit floating point operation;

▼24bit A/D and D/A high-performance chips, excellent sound quality;

▼Support USB control interface, equipped with professional PC control software;

▼8 groups of system memory functions;

▼Level 2 device locking function, you can set the device locking level according to your needs;

▼Ad hoc recording output function;

▼Support 4K video signal decoding output;

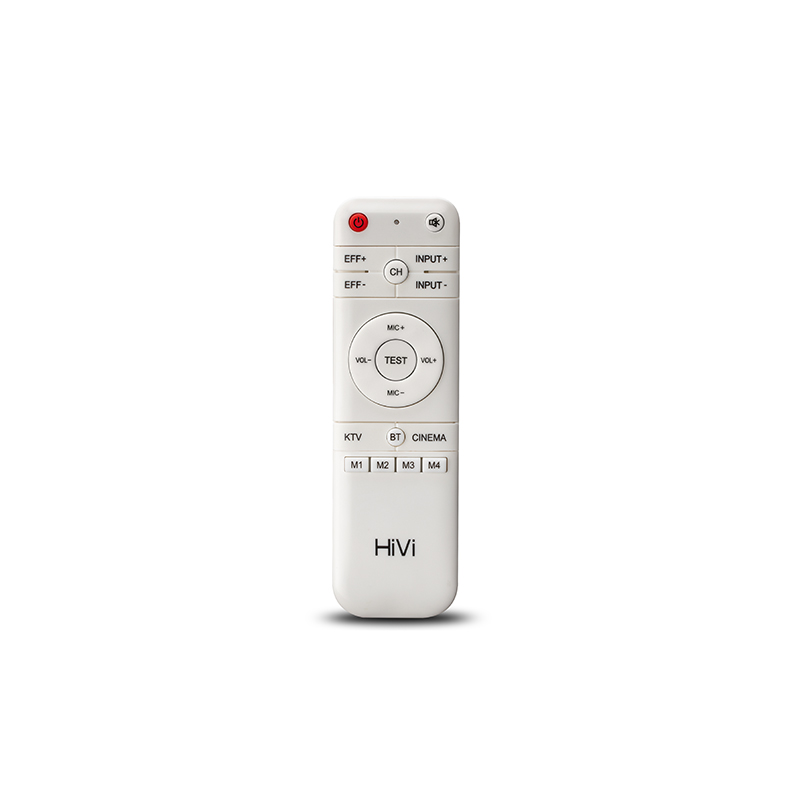

▼Multi-function remote control;

▼One-key switch between cinema, KTV and Bluetooth modes;

▼Provide 7.1CH speaker test mode.

·Product parameters

Output channel

Front, Center, Bass, Side Surround, Back Surround

SNR

Microphone

>85dB



Music

>90dB

Distortion

Microphone

<0.1%



Music

<0.1%

Maximum input level

Microphone

250mV



Music

1V

Maximum output level

Microphone

1Vrms



Music

1Vrms

Sensitivity

Microphone

15mV



Music

300mV

Input impedance(Ω)

Microphone

10K unbalance



Music

47K unbalance

Output impedance(Ω)

300 balance ,1K unbalance

Channel separation

>70dB

Howling suppression function

4-level feedback suppression setting

Channel parameters

microphone music

16-band PEQ + low pass + high pass, gain: -20dB~+10dB



Output

Signal Mixing + Polarity + 5-segment PEQ + Low Pass + High Pass + Limiter + Delay + Gain

Decoding

5.1CH and 7.1CH

N.W.(±10%)

4.6Kg

Package size

560X310X130mm
