Swan FR waterproof horn series
$ -
Postage : $0.00
Pro Audio FR waterproof horn series Professional Speaker System
|
Product Description |
|
|

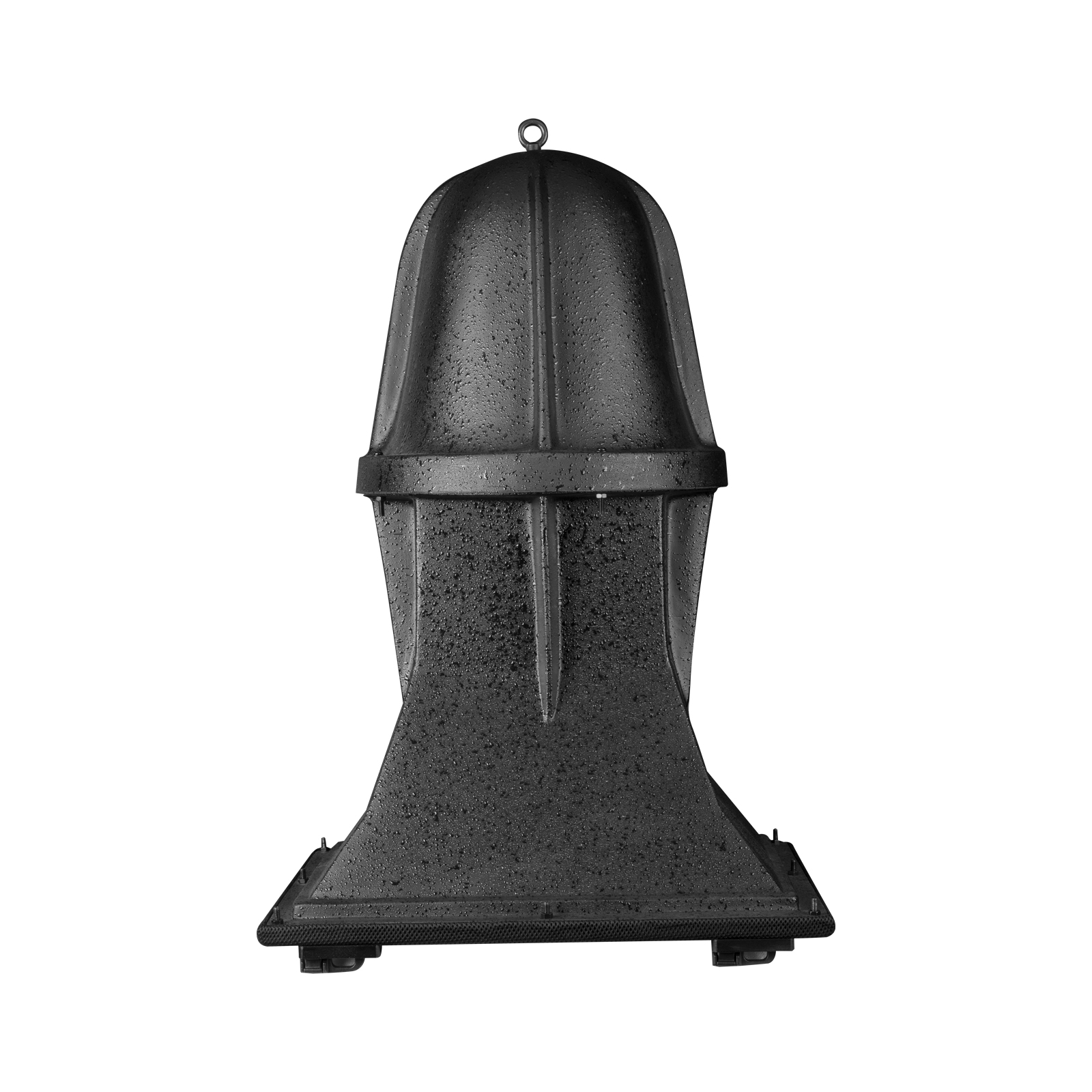

FR3 is a professional two-way long-range waterproof horn-type full-range speaker system, designed for large venues such as large halls, gymnasiums and medium and large mobile sound reinforcement. FR3 adopts horn-type structure box, coaxial horn installation method, and three-point installation method. It has the advantages of strong directionality, high power, high efficiency, and easy installation. |
|
|
Product Parameters |
|
|
Model |
FR3 |
|
System |
Remote waterproof horn full-range speaker |
| Frequency Range | 80Hz-20KHz |
|
Rated input power |
400W(Continued)
800W(Program signal)
1600W(Peak)
|
|
Sensitivity |
106dB(1W/1m) |
| SPL |
132dB(Continued)
138dB(Peak)
|
|
Rated impedance |
8Ω |
| Coverage（H×V） | 60°×60° |
| Woofer | 1x12"(75mm) |
| Tweeter | 1x44mm(Nd) |
| Connection | 2xWP(1+,2-) |
| Installation |
Three-point hang |
| Dimension（W×H×D） | 525×525×800mm |
| N.W.(±10%) | 18KG |
