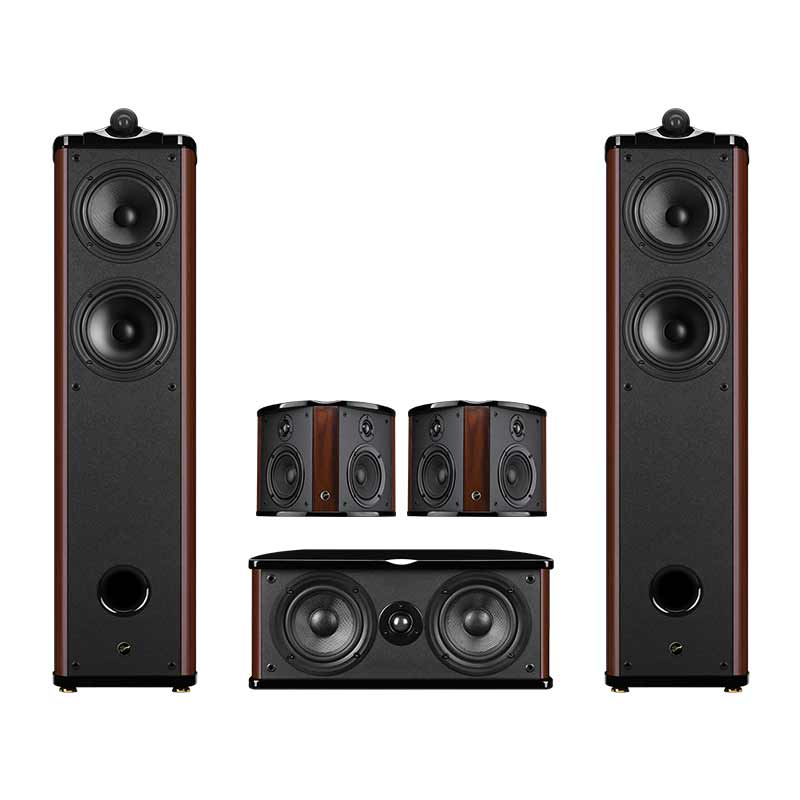

Diva6.3 Parameters | |
| Series： | Home Theater Series |
| Model： | Swans Diva6.3 |
| Front Main Speaker | |

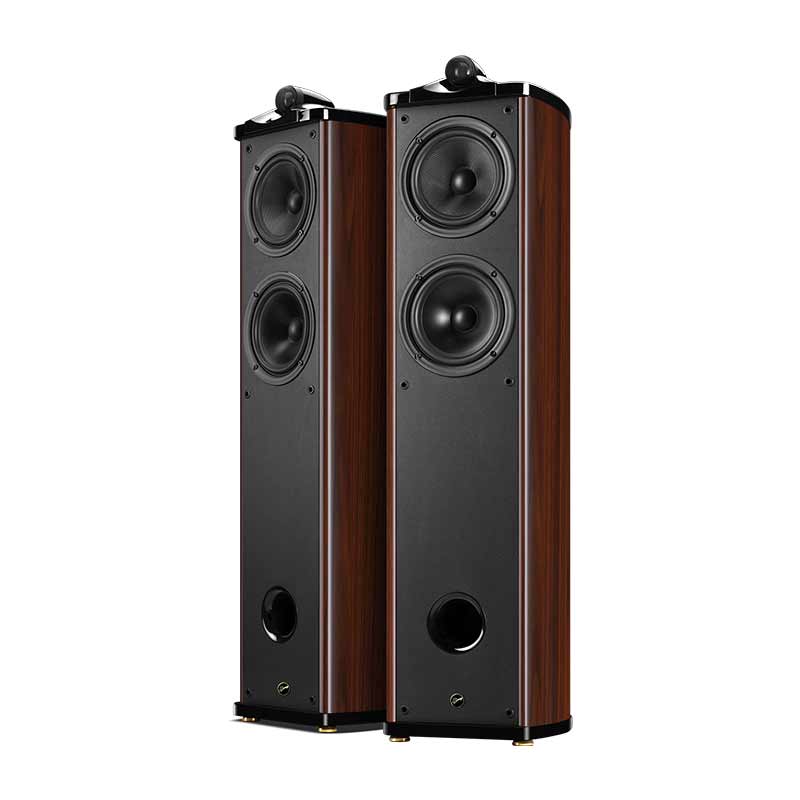

| Front Main Speaker | Front Main Speaker Swans Diva 6.3F |
| System Type： | 2½-way vented box system |
| Drivers Configuration： | 6.5" woofer |
6.5" midrange driver | |
1” metal dome tweeter | |
| Frequency Range： | 38Hz - 20kHz |
| Harmonic Distortion： | 62Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 88dB |
| Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 120W |
| Dimensions (W×D×H)： | 9.7"×13.8"×39.2" |
| Net Weight (each)： | 55.1 lbs |
| Front Center Speaker | |

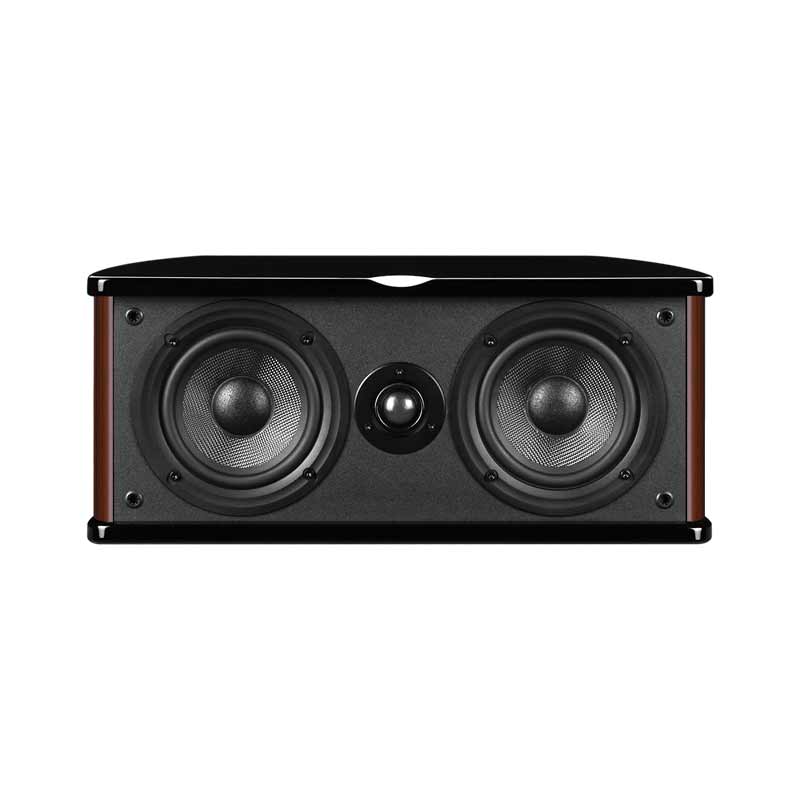

| Front Center Speaker | Front Center Speaker Swans Diva 6.3C |
| System Type： | 2-way 2nd-order sealed box system |
| Drivers Configuration： | Two 5" woofers |
1.1" soft dome tweeter | |
| Frequency Range： | 60Hz - 20kHz |
| Harmonic Distortion： | 70Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 88dB |
| Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 120W |
| Dimensions (W×D×H)： | 17.4"×8.7"×7.2" |
| Net Weight： | 17.6 lbs |
| 1 Surround Speaker | |

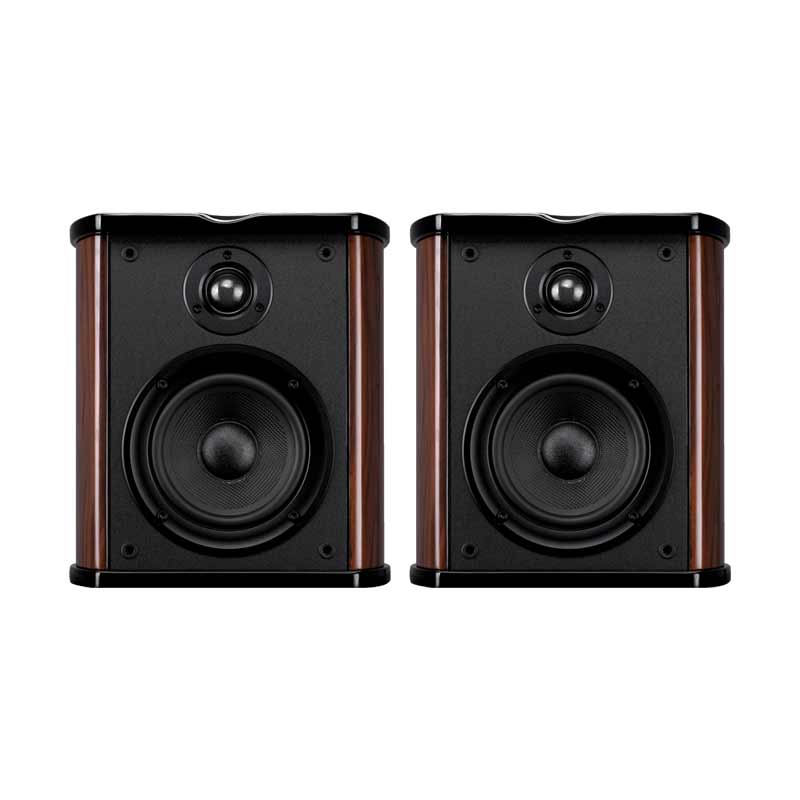

| 1 Surround Speaker | Surround Speaker Type 1: Swans Diva 6.3 M |
| System Type | 2-way 2nd-order sealed box system |
| Drivers Configuration | 5" woofers |
1.1" soft dome tweeters | |
| Frequency Range | 65Hz - 20kHz |
| Harmonic Distortion | 85Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m) | 86dB |
| Nominal Impedance | 8Ω |
| Power Handling | 10W - 120W |
| Dimensions (W×D×H) | 9.6"×7.0"×10.6" |
| Net Weight (each) | 11.0 lbs |
| 2 Surround Speaker | |
| 2 Surround Speaker | Surround Speaker 2 Swans Diva 6.3 BD |
| System Type | Selectable bipole/dipole surround speaker |
| Drivers Configuration： | Two 5" woofers |
Two 1.1" soft dome tweeters | |
| Frequency Range： | 65Hz - 20kHz |
| Harmonic Distortion： | 85Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 86dB |
| Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 240W |
| Dimensions (W×D×H)： | 14.1"×10"×10.4" |
| Weight (each)： | 17.7 lbs |
| Finish： | Black piano lacquer finish over pailsander veneer |
