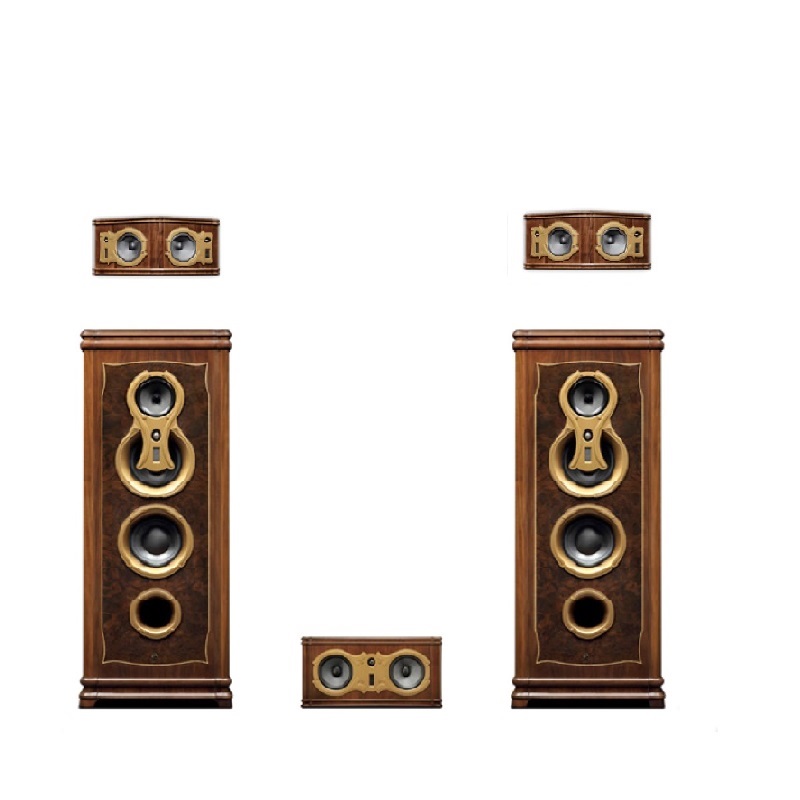

| Series： | Home Theater Series |
| Model： | Swans F8 |
| Front Main Speaker | |
| Front Main Speaker | Front Main Speaker Swans F8 |
| System Type： | 4-way vented box system |

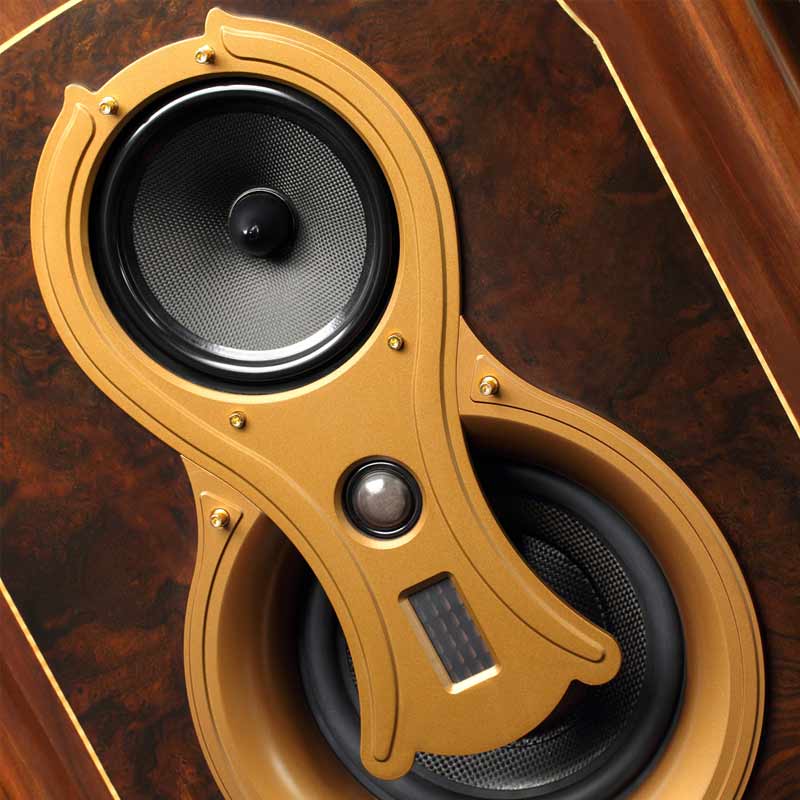

| Drivers Configuration： |
Two
8" woofers
|
|
6.5"
midrange driver
|
|
|
1.1"
dome tweeter
|
|
|
Isodynamic
ribbon tweeter
|
|
| Frequency Range： | 35Hz - 20kHz |
| Harmonic Distortion： | 55Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 88dB |
| Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 300W |
| Dimensions (W×D×H)： | 550×377×1328mm |
| Net Weight (each)： | 94kg |
| Front Center Speaker | |
| Front Center Speaker | Front Center Speaker Swans F10C |
| System Type： | 3-way 4th-order vented box system |
| Drivers Configuration： |
Two
6.5" woofers
|
|
1.1"
dome tweeter
|
|
|
Isodynamic
ribbon tweeter
|
|
| Frequency Range： | 60Hz - 20kHz |
| 失真度Harmonic Distortion： | 60Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 90dB |
| Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 150W |
| Dimensions (W×D×H)： | 593×285×288mm |
| Net Weight： | 23kg |
| Surround Speaker | |
| Surround Speaker | Surround Speaker Swans F10R |
| System Type： | Selectable bipole/dipole surround system |
| Drivers Configuration： |
Two
6.5" bass-midrange drivers
|
|
two
1.1” soft dome tweeters
|
|
|
two
isodynamic ribbon tweeters
|
|
| Frequency Range： | 70Hz - 20kHz (Bipole) |
| Harmonic Distortion： | 65Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 88dB |
| Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 120W |
| Dimensions (W×D×H)： | 653×338×292mm |
| Net Weight (each)： | 17.5kg |
