F10 Parameters | |
| Series： | Home Theater Series |
| Model： | Swans F10 |
| Front Main Speaker | |

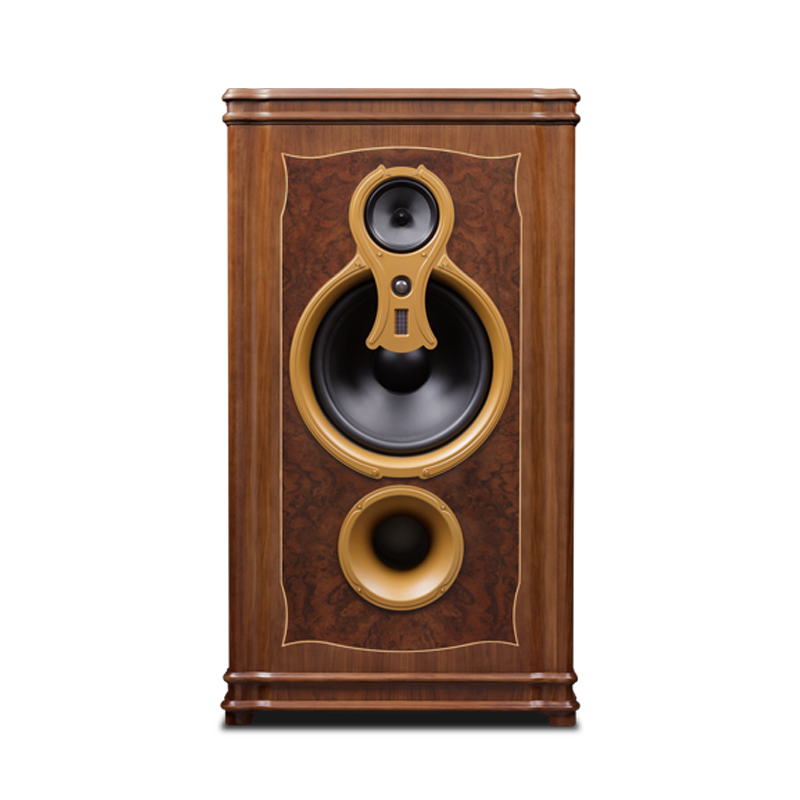

| Main Speaker | Front Main Speaker Swans F10 |
| System Type： | 4-way 4th-order vented box system |
| Drivers Configuration： | 15" woofer |
6.5" bass-midrange driver | |
1.1" dome tweeter | |
Isodynamic ribbon tweeter | |
| Frequency Range： | 30Hz - 20kHz |
| Harmonic Distortion： | 56Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 89dB |
| Nominal Impedance： | 8Ω |
| Power Handling： | 10W - 500W |
| Dimensions (W×D×H)： | 694×510×1218mm |
| Net Weight (each)： | 120kg |
| Front Center Speaker | |
| System Type： | 3-way vented box system |
| Drivers Configuration： | Two 6.5" woofers |
1.1" dome tweeter | |
Isodynamic ribbon tweeter | |
| Frequency Range： | 60Hz - 20kHz |
| Harmonic Distortion： | 60Hz - 20kHz ≤1%(2.83V/1m) |
| 灵敏度Sensitivity (2.83V/1m)： | 90dB |
| Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 150W |
| Dimensions (W×D×H)： | 593×285×288mm |
| Net Weight： | 23kg |
| Surround Speaker | |

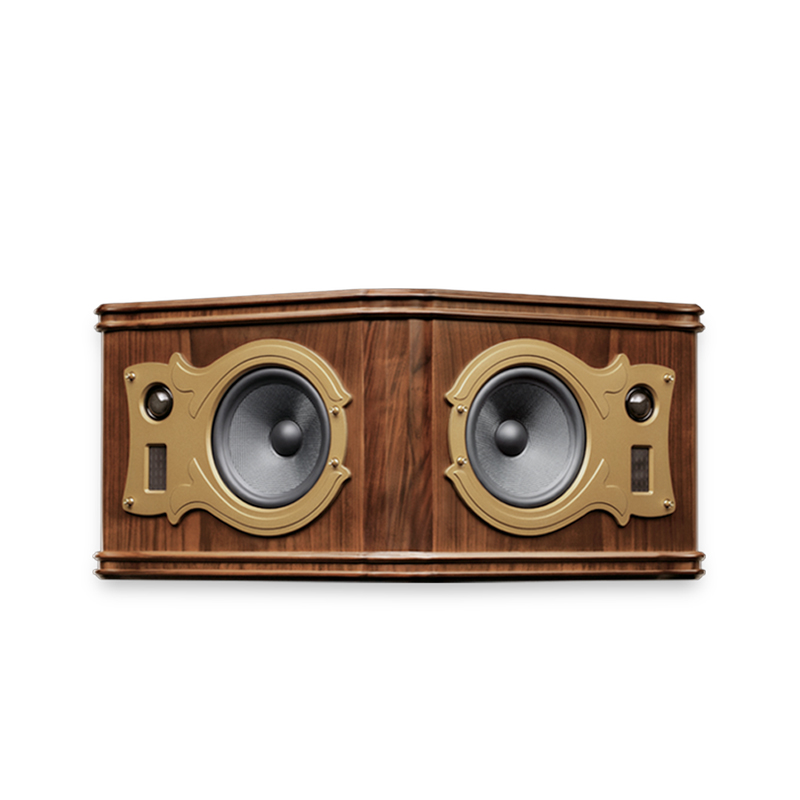

| Surround Speaker | Surround Speaker Swans F10R |
| System Type： | Selectable bipole/dipole surround system |
| Drivers Configuration： | Two 6.5" bass-midrange drivers |
two 1.1” soft dome tweeters | |
two isodynamic ribbon tweeters | |
| Frequency Range： | 70Hz - 20kHz (Bipole) |
| Harmonic Distortion： | 65Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 88dB |
| Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 120W |
| Dimensions (W×D×H)： | 653×338×292mm |
| Net Weight (each)： | 21.5kg |
| Active Subwoofer | |
| Active Subwoofer | Active Subwoofer Swans Sub15F |
| System Type： | 1-way sealed active subwoofer |
| Drivers Configuration： | 15" subwoofer |
| Frequency Range： | 26Hz - 120Hz(DIRECT) |
26Hz - 80Hz(INTERNAL X-OVER) | |
Rated Power： | 1000W |
| Signal-to-Noise： | >100dB(Unweigthed) |
| Input Sensitivity： | 100mV |
| 输入阻抗Input Impedance： | 22kΩ |
| Dimensions (W×D×H)： | 540×465×630mm |
| Net Weight (each)： | 55kg |
Finish： | Natural wood + wood veneer with bronze aluminum speaker ring for decoration |
