| Diva8.3 Parameters | |
| Series： | Swans Flagship Series |
| Model： | Swans Diva8.3 |
| Front Main Speaker | |

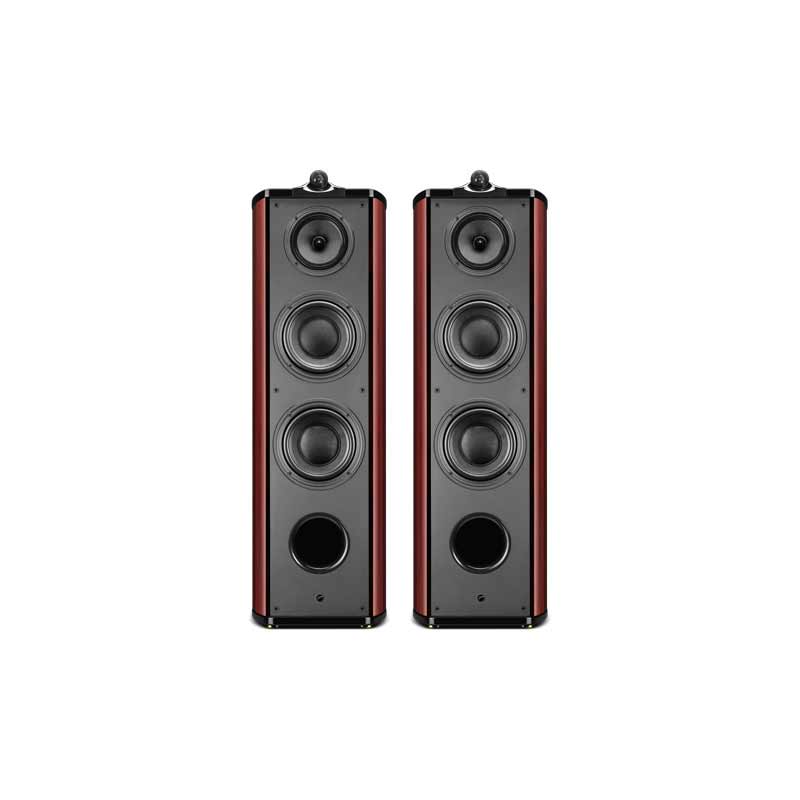

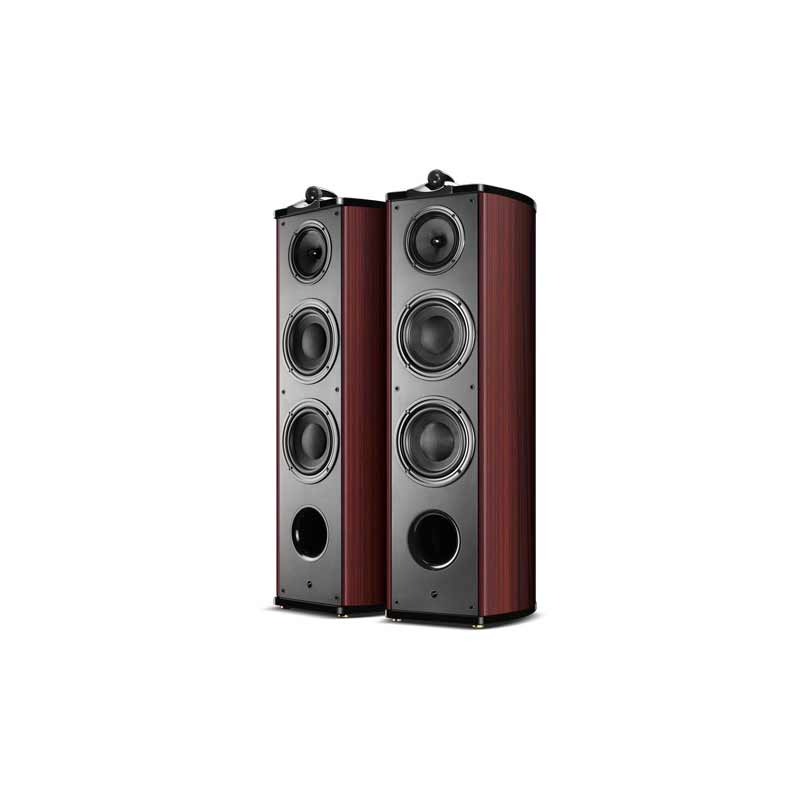

| Front Main Speaker | Front Main Speak Swans Diva8.3 |
| System Type： | 3-way 4th-order vented box system |
| Drivers Configuration： | Two 8" woofers |
6.5" bass-midrange driver | |
1” metal dome tweeter | |
| Frequency Range(±3dB,free field)： | 35Hz - 20kHz (±3dB,Free Space) |
| Sensitivity： | (85dB/1w/1m), (88dB/2.83V/1m) |
| Harmonic Distortion： | 55Hz - 20kHz ≤1%(1w/1m) |
| Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 300W |
| Dimensions (W×D×H)： | 354×465×1098mm |
| Net Weight (each)： | 46kg |
| Front Center Speaker | |

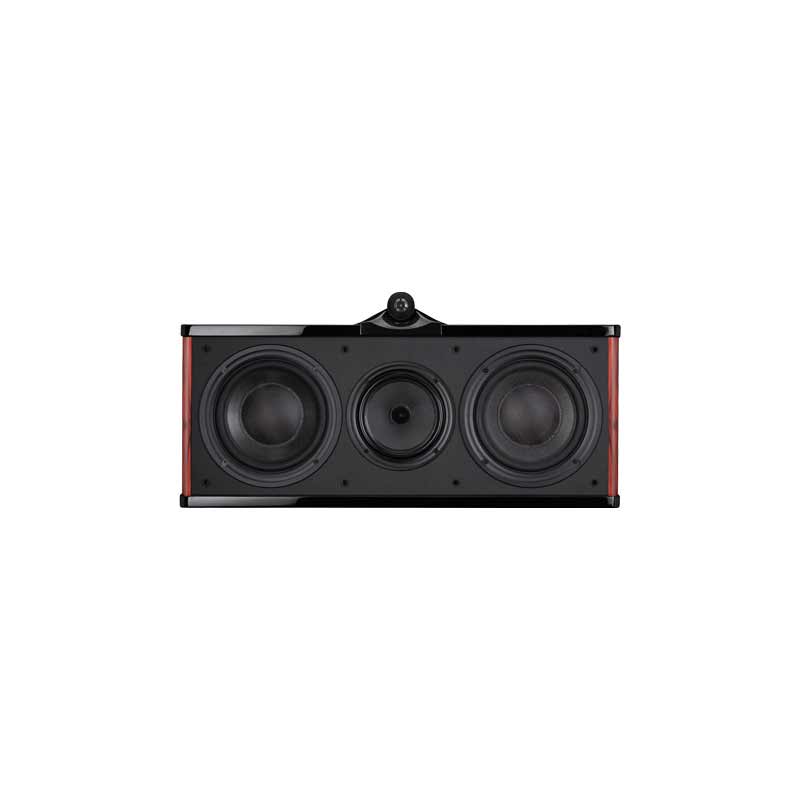

| Front Center Speaker | Front Center Speaker Swans Diva8.3C |
| System Type： | 3-way 2nd-order sealed speaker system |
| Drivers Configuration： | Two 8" woofers |
6.5" bass-midrange driver | |
1” metal dome tweeter | |
| Frequency Range(±3dB,)： | 45Hz - 20kHz (±3dB,Free Space) |
| Sensitivity： | (85dB/1w/1m), (88dB/2.83V/1m) |
| Harmonic Distortion： | 75Hz - 20kHz ≤1%(1w/1m) |
| Nominal Impedance： | 4Ω |
| Power Handling： | 10W - 120W |
| Dimensions (W×D×H)： | 725×383×345mm |
| Net Weight (each)： | 30.5kg |
| 1 Surround Speaker | |
| Surround Speaker | Surround Speaker Type 1: Swans Diva6.3M |
| System Type | 2-way 2nd-order sealed box system |
| Drivers Configuration | 5" woofers |
1.1" soft dome tweeters | |
| Frequency Range | 65Hz - 20kHz |
| Harmonic Distortion | 85Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m) | 86dB |
| Nominal Impedance | 8Ω |
| Power Handling | 10W - 120W |
| Dimensions (W×D×H) | 245*177*268mm |
| Net Weight (each)： | 5.0kg |
| 2 Surround Speaker | |

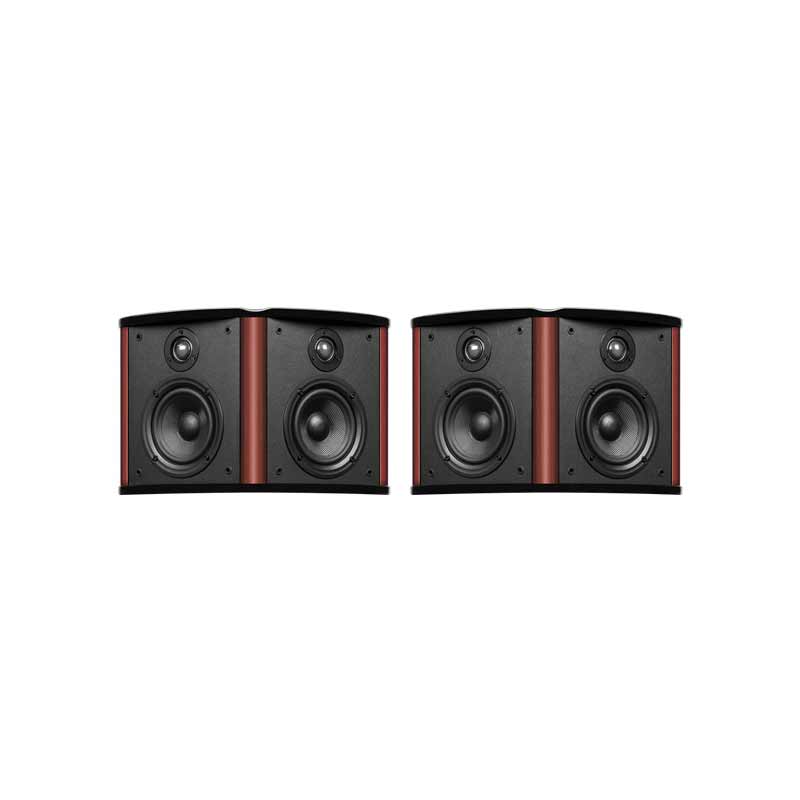

| 2 Surround Speaker | Surround Speaker 2 Swans Diva 6.3 BD |
| System Type | Selectable bipole/dipole surround speaker |
| Drivers Configuration： | Two 5" woofers |
Two 1.1" soft dome tweeters | |
| Frequency Range： | 65Hz - 20kHz |
| Harmonic Distortion： | 85Hz - 20kHz ≤1%(2.83V/1m) |
| Sensitivity (2.83V/1m)： | 86dB |
| Nominal Impedance： | 8Ω |
| Power Handling： | 10W - 240W |
| Dimensions (W×D×H)： | 358*255*265mm |
| Net Weight (each)： | 8.05kg |
| Finish： | Black piano lacquer finish over pailsander veneer |
