| Product Parameters | |
|

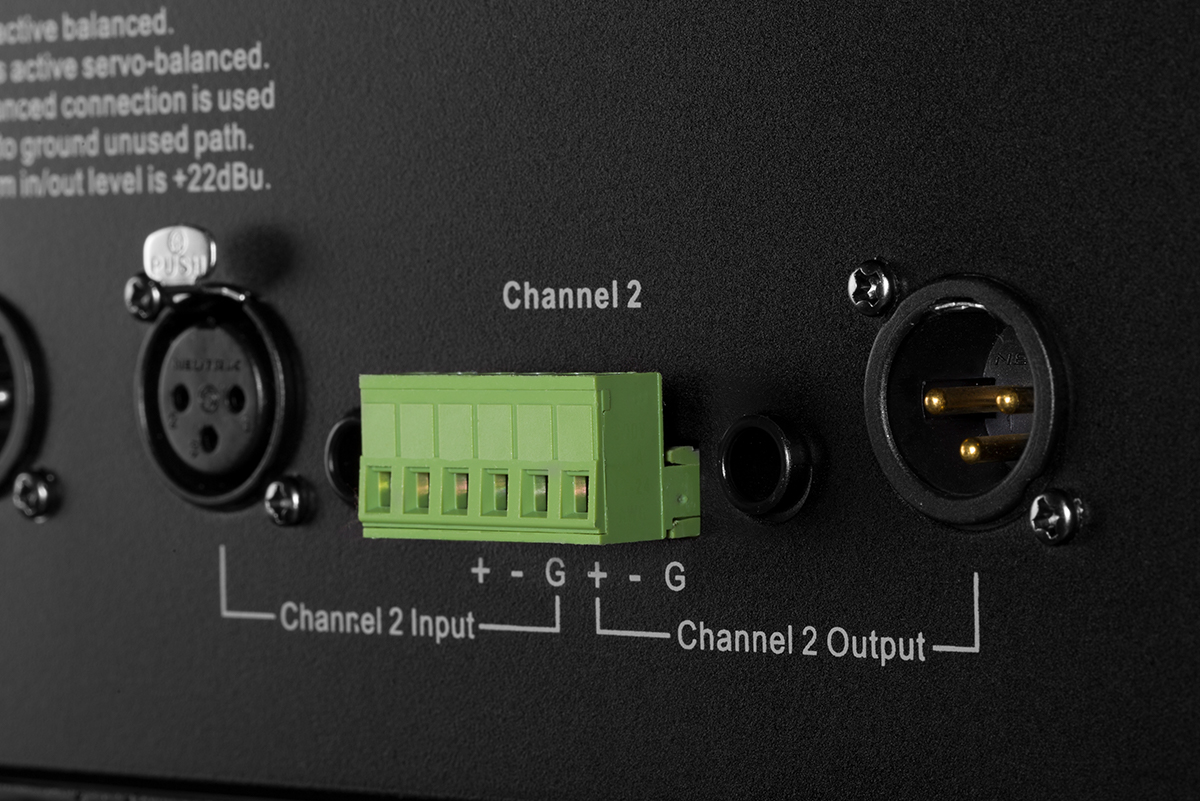

Input |
|
| Type | Balanced / Unbalanced |
| Impedance | 20KΩ/10KΩ |
| Maximum level | +23dBu |
| Connector | 1/4 telephone socket (TRS), XLR, Euroblock |
| Output | |
| Type | Balance |
|
Source impedance |
100Ω |
|
Minimum load impedance |
600Ω |
|
Maximum level |
+23 dBu |
|
Connector |
No |
| Overall | |
|
Frequency response |
20 Hz-20 kHz, +/-0.25 dB |
| THD | <.01%@+20dBu |
| IM distortion(SMPTE) | <.01%@+20dBu |
|
Output noise and noise (unweighted) |
-93dBu |
|
Channel Separation |
>95dB @ 1Khz |
|
Gain control |
-∞ to +6dB |
| Filter | |
| Type | Constant Q/Wein Bridge |
|
Number of segments |
2x31 |
|
Bandwidth |
1/3 Octave |
| Tolerance | ±3% |
| Range | +/-6 dB, +/-15 dB (switchable) |
|
Infrasound filter |
12dB/Octave @ 14-280Hz |
|
Power Requirements |
|
| Nominal Voltage | 100-240 VAC (50-60 Hz) |
|
Power |
30W |
| Physics | |
| N.W.(±10%) | 17 Ibs |
|
Size |
19"Lx5.25"Hx8"D |
