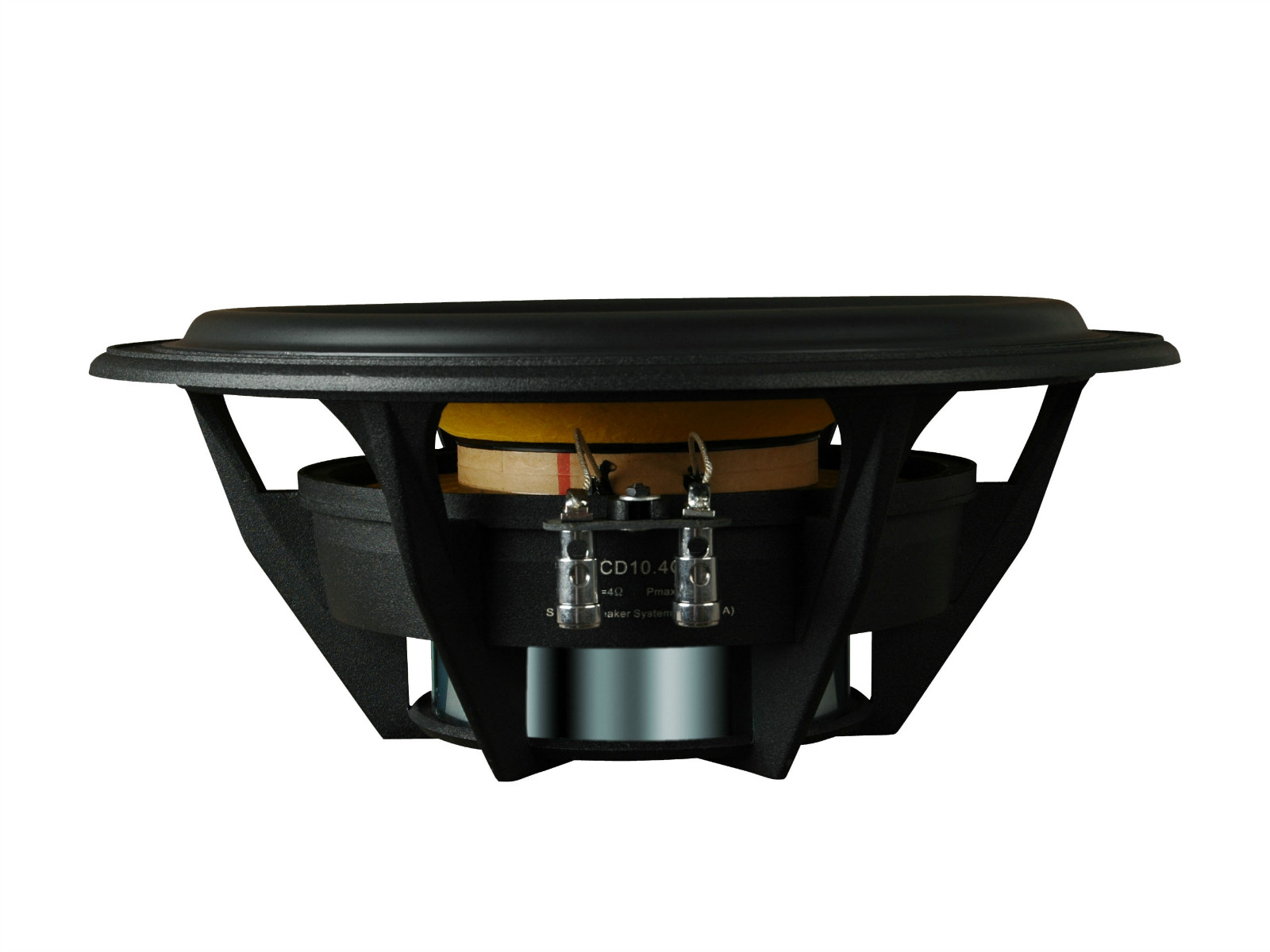

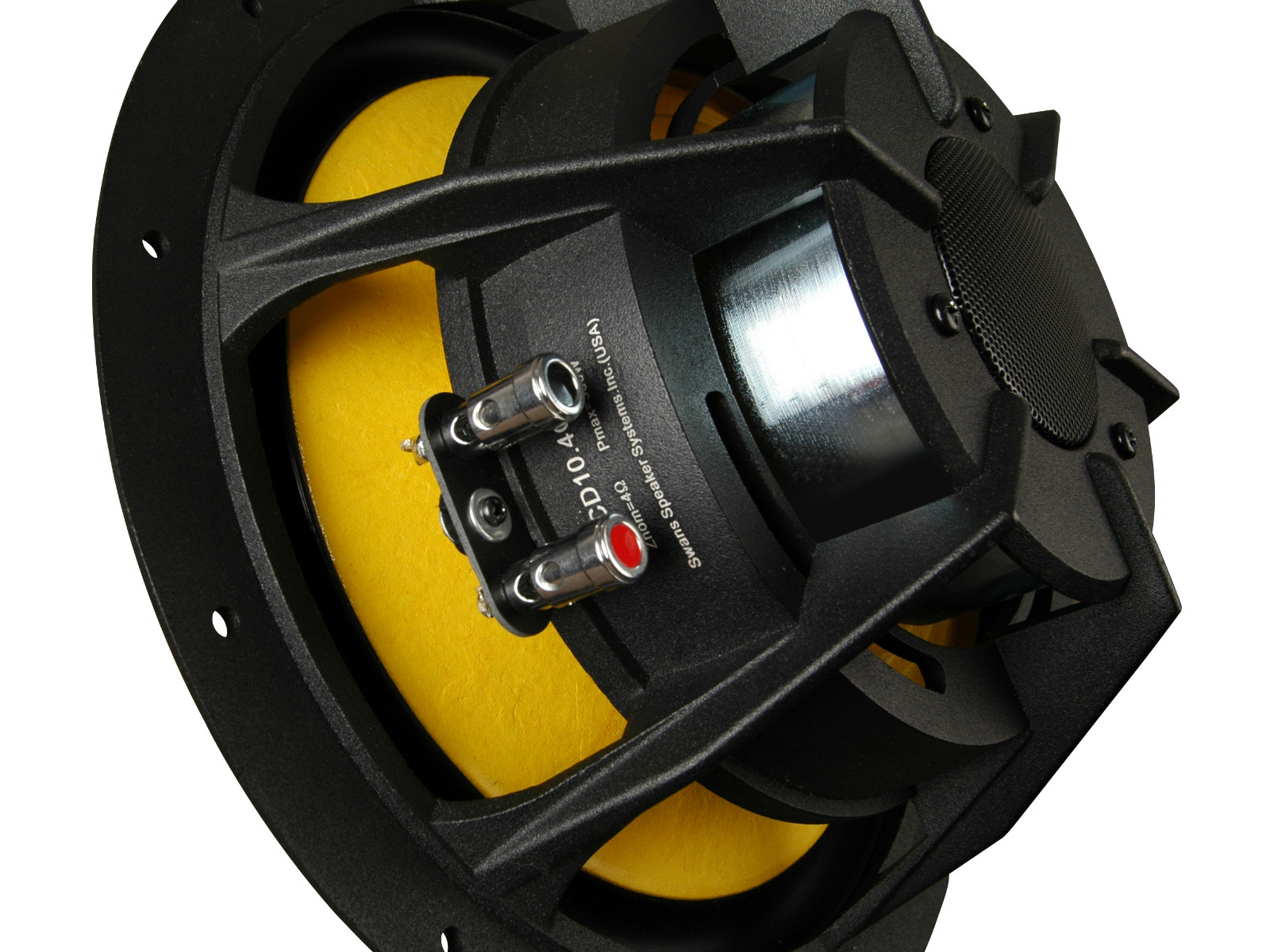

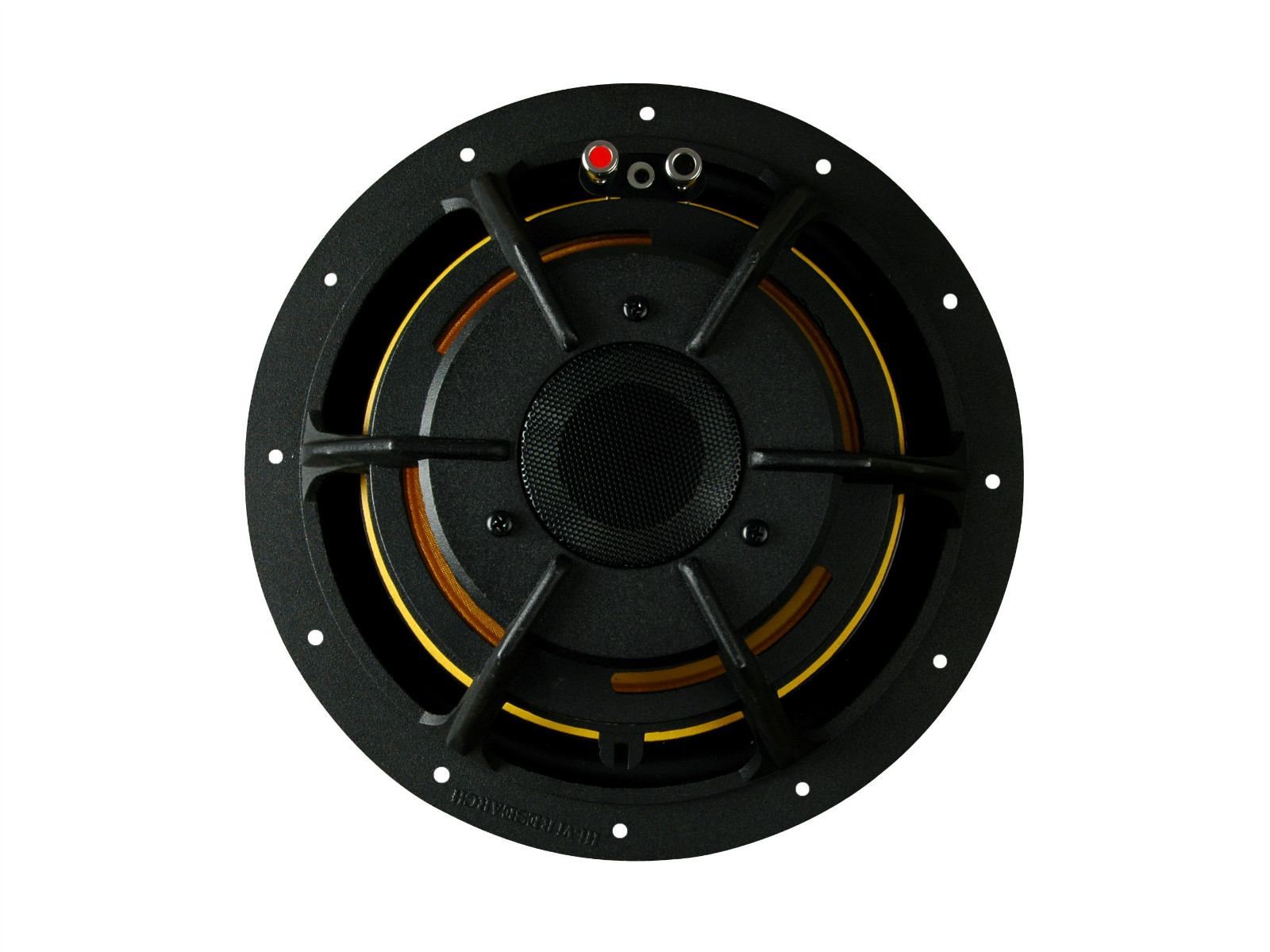

Swan CD10.4G Car Subwoofer
$ -
Postage : $0.00
Car Audio Car subwoofer CD Series
When the perfect electro-acoustic technology is integrated with the fine lineage, it becomes a car subwoofer - CD10.4G. The blood of the world-renowned Swans D-series loudspeaker flows under the calm and generous appearance. Transcending the past is the only reason she was born... and feel the pounding force that only she can unleash your desires and passions!
CD series has launched two models CD10.4G and CD8.4G. The unit diameters are 100mm and 80mm respectively, in order to meet the low frequency needs of different vehicle spaces. The new series inherits the characteristics of Swans D series loudspeakers with sophisticated materials and sophisticated design, and adopts Kevlar reinforced paper-based vibration cone, which enhances the rigidity of the vibration cone and effectively prolongs its service life in harsh environments.
High-performance rubber suspension, long-stroke design, makes the power bearing capacity and high sound pressure distortion extremely excellent. The high-performance magnetic circuit provides powerful power for the system, and the sound is restored to the true nature. The bass performance is concentrated but not scattered, and the volume is abundant, and it can still play stably even under long-term high-power operation.
Cabinet Type:
(1) Closed speaker system:
Recommended net volume: 18 L
Cabinet in free field -3dB Frequency: 45 Hz
(2) Vented speaker system:
Recommended net volume: 35 L
Inverter Tuning Frequency: 40 Hz
Phase guide tube size: ?75X180mm
Cabinet in free field -3dB Frequency: 40 Hz
Note: In the case that the volume of the cabinet meets the reference value, the size of the cabinet can be changed according to the actual body size without affecting the audio playback.
Swan CD10.4G Parameters
System Specification
10" Diameter
Frequency Response
20Hz-300Hz
Sensitivity（2.83V/1m）
86dB
Nominal Impedance
4Ω
Power Handling
10W-400W
External Size
Φ299x114mm
Net Weight（set）
4.54kg
| Swan CD10.4G Parameters | |
|
System Specification
|
10" Diameter |
|
Frequency Response
|
20Hz-300Hz |
|
Sensitivity（2.83V/1m）
|
86dB |
|
Nominal Impedance
|
4Ω |
|
Power Handling
|
10W-400W |
|
External Size
|
Φ299x114mm |
|
Net Weight（set）
|
4.54kg |
