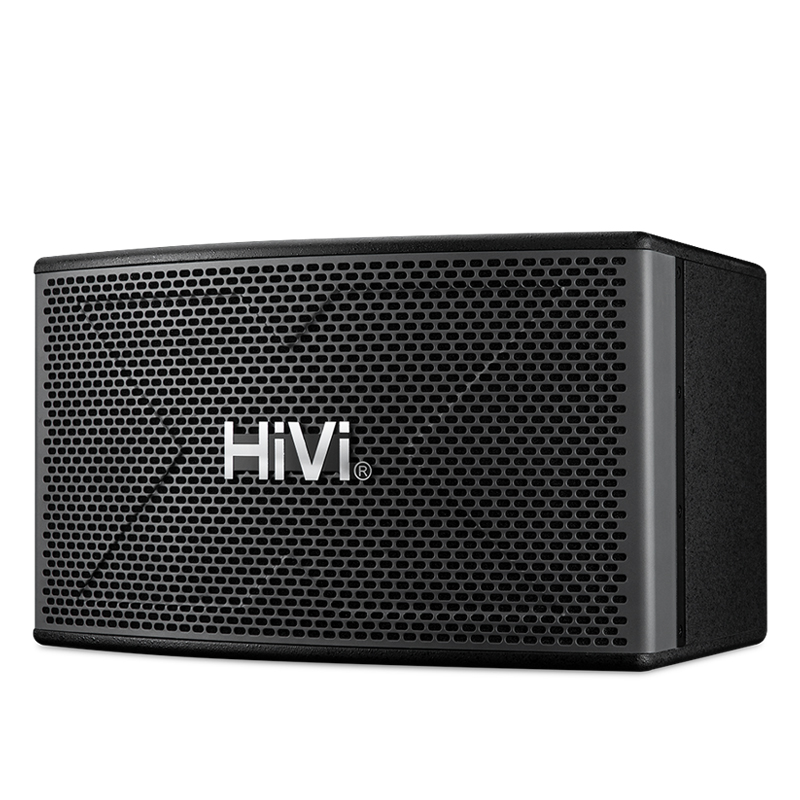

Product Description

Adhering to Swan's years of technical accumulation in the field of professional speakers, the specially designed professional karaoke speaker system adopts multi-channel multi-unit bass reflex design, and adopts paper cones with different formulas and production methods according to the particularity of karaoke and the requirements of each frequency band. , Playing music and karaoke vocal restoration are as beautiful and moving. The specially formulated damping glue makes the mid-high frequency performance tend to be soft and smooth, and the high-recovery, high-strength, fatigue-resistant and environmentally friendly American foam folding ring is used, and the mid-low frequency vocals are soft and smooth. , strong bass, amazing dynamics, using completely independent multiple sets of high-precision components frequency division circuit, accurate control of each frequency band, natural and flawless connection. The exterior of the speaker is made of environmentally friendly, wear-resistant and touch-resistant black particle paint, which is beautiful and practical. The new design of the universal hoisting structure makes the installation simple and convenient.

Parameters

Name

VK80

VK100

VK1000

Type

2-way 3-speaker system

2-way 3-speaker system

2-way 5-speaker system

Cabinet

Bass reflex

Bass reflex

Bass reflex

Bass

200mm cone

250mm cone

250mm cone

Tweeter

77mm cone ×2

77mm cone X2

77mm cone X4

Rated impedance

8ohm

8ohm

8ohm

Frequency response(-5dB)

42Hz-18KHz

38Hz-18KHz

38Hz-18KHz

Sensitivity(1W/1M)

88dB

89dB

92dB

Rated output power

100W

150W

180W

Crossover

1.5KHz

1.8KHz

1.8KHz

Size(WxHxD)

459×264x253mm

508x292x293mm

508x292x283mm

N.W.(±10%)

8kg

11kg

12.5kg

If the left and right polarities are not properly connected, the sound perception and sound reproduction will be greatly affected.
